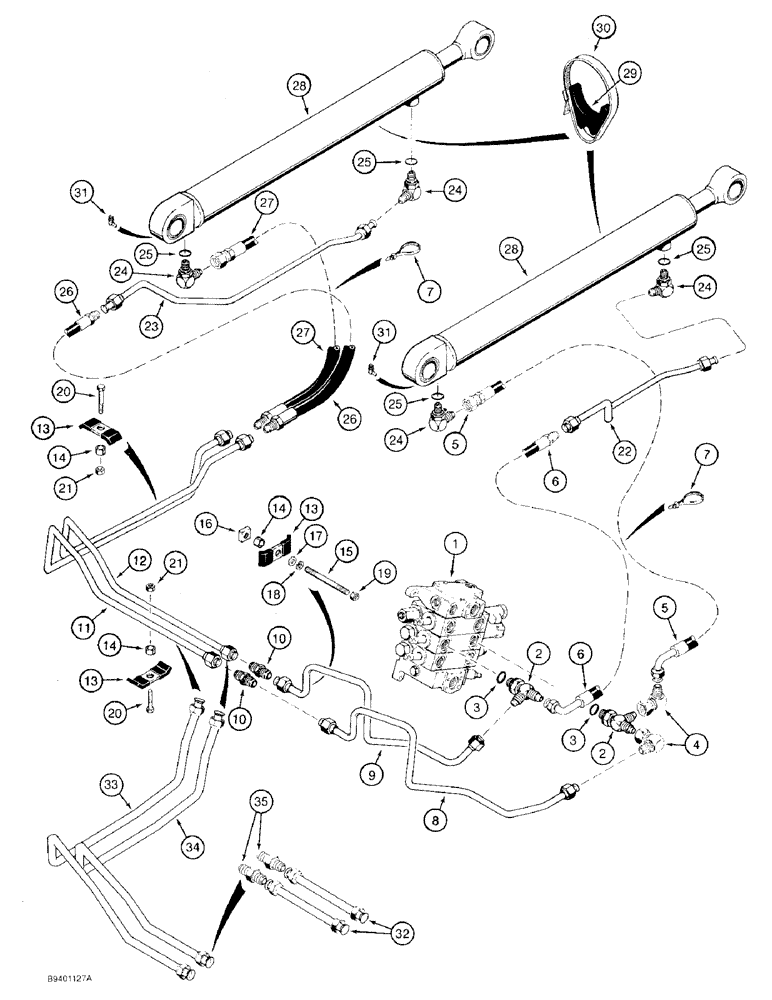

Запчасти Case 580SK (8-017A) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT, P.I.N. JJG0169931 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY loader control, for correct assembly and components, see Figure 8-064 or 8-066, for mounting see Figure 9-002

1шт.

2

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare branch x flare x adj O-ring boss, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

90 degree, 7/8-14 inch flare x swivel flare

2шт.

5

D150669

HOSE

813 mm long, to closed end of right-hand lift cylinder

1шт.

IF LOOKING FOR THE HOSE WITH A 90 DEGREE FITTING ON ONE END ORDER P/N 104262A1 PER TECH.

1шт.

6

D150668

HOSE

722 mm long, to rod end of right-hand lift cylinder

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

3шт.

8

D149357

TUBE

at tee, to closed end of left-hand lift cylinder

1шт.

9

D149359

TUBE

at tee, to rod end of left-hand lift cylinder

1шт.

10

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight, 7/8-14 inch flare

2шт.

11

D151095

TUBE

to closed end of left-hand lift cylinder, production only, for service order one each of Ref. 32, D151021 tube, Ref. 33, D151023 tube and Ref. 35, 218-736 connector

1шт.

12

D151093

TUBE

to rod end of left-hand lift cylinder, production only for service order one each of Ref. 32, D151021 tube, Ref. 34, D151025 tube and Ref. 35, 218-736 connector

1шт.

13

D138055

CLAMP

tube

3шт.

14

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

tube clamp

3шт.

15

R46227

STUD

special, tube clamp to chassis bracket

1шт.

16

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

1шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

425-106

NUT,3/8"-16, Cl 5

1шт.

20

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

21

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC, grade 8

2шт.

22

D150993

TUBE

at rod end of right-hand lift cylinder

1шт.

23

D150991

TUBE

at rod end of left-hand lift cylinder

1шт.

24

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 25

4шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

D150667

HOSE

457 mm long, to rod end of left-hand lift cylinder

1шт.

27

D150670

HOSE

762 mm long, to closed end of left-hand lift cylinder

1шт.

28

REF

INSTRUCTION

CYLINDER ASSEMBLY lift, right-hand and left-hand, for correct assembly and components, see Figures 8-116 - 8-117C

2шт.

29

D38648

BLOCK

SPACER rubber, single tube

2шт.

30

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

2шт.

31

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

32

D151021

TUBE

straight, used with Ref. 33 or 34, and 35

2шт.

33

D151023

TUBE

to closed end of left-hand lift cylinder, used with Ref. 32 and 35

1шт.

34

D151025

TUBE

to rod end of left-hand lift cylinder, used with Ref. 32 and 35

1шт.

35

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR straight, 7/8-14 inch flare, used Ref. 32, and Ref. 33 or 34

2шт.
