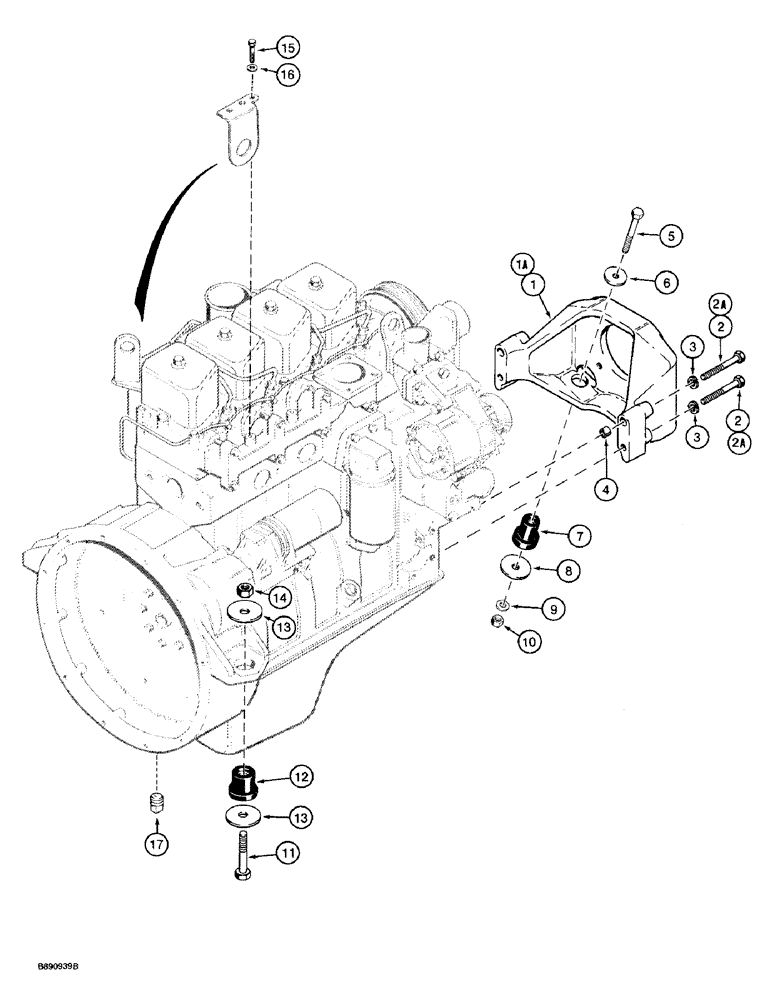

Запчасти Case 580SK (2-18) - ENGINE MOUNTING (02) - ENGINE

1

D123725

SUPPORT

60 mm long mounting bolt flange, engine front, no longer available, order D150604 support, item 1A

1шт.

1a

D150604

SUPPORT

72 mm long mounting bolt flange, engine front

1шт.

2

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

- hex, 12 - 1.75 x 90 mm, D123725 support, if used

4шт.

2a

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

D150604 support, if used Hex, M12 x 100, 8.8

4шт.

3

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

4

A170309

BUSHING,13.41mm ID x 18mm OD x 13.25mm L

BUSHING engine support, upper bolt holes

2шт.

5

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex, 1/2 NC x 2-3/4 inch

2шт.

6

D126338

WASHER,13.1mm ID x 45mm OD x 4.5mm Thk

flat, 13 x 45 x 5 mm, special

2шт.

7

D60627

ISOLATOR,50.8mm OD x 41.1mm L

INSULATOR engine mount, rubber, front

2шт.

8

495-81270

WASHER,0.53" ID x 2.25" OD x 0.13" Thk

flat

2шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

10

231-1448

NUT,1/2"-13, GB

light hex, self-locking, 1/2 inch NC

2шт.

11

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

12

D133316

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR engine mount, rubber, rear

2шт.

13

CASD35009

WASHER,16.67mm ID x 63.5mm OD

flat, special, hardened

4шт.

14

425-1010

NUT,5/8"-11, G5

2шт.

15

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Use to Attach Lift Bracket to Exhaust Manifold Hex, M10 x 20, 8.8, Full Thd

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

17

221-845

PLUG,Hex Soc, 3/4"-14

square socket, 3/4 inch PT, use on models with PTO

1шт.
