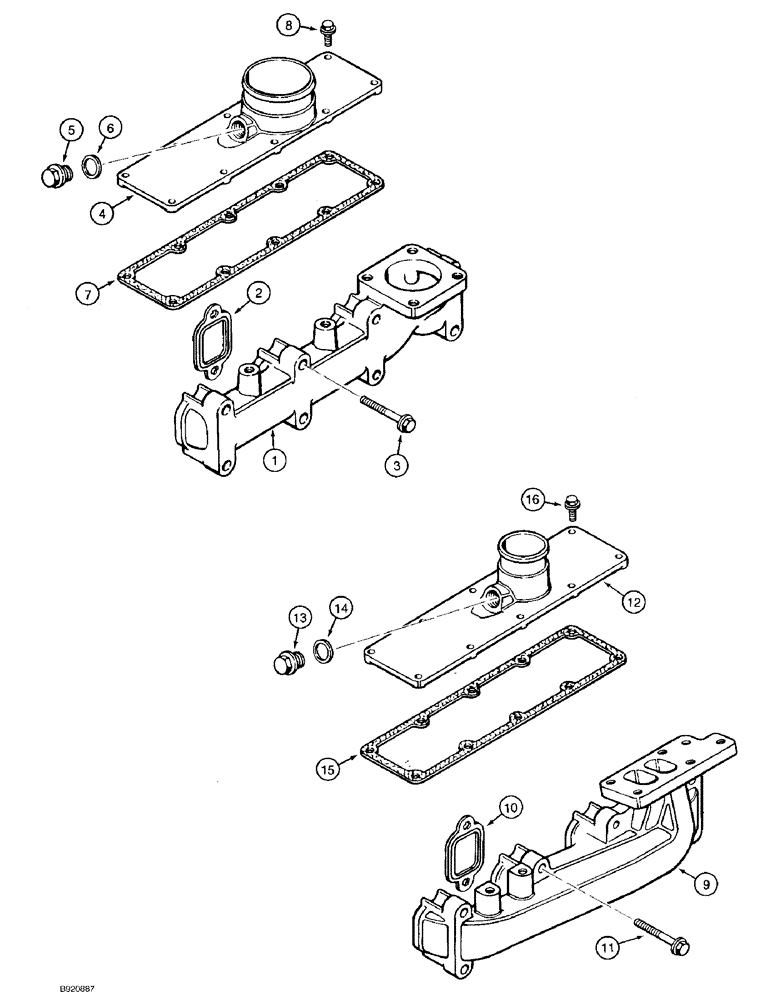

Запчасти Case 580SK (2-24) - MANIFOLDS - EXHAUST AND INTAKE, EXHAUST - 4-390 ENGINE (02) - ENGINE

1

J901223

MANIFOLD

exhaust, Naturally Aspirated, exhaust - 4 - 390 engine

1шт.

2

J905443

MANIFOLD GASKET

exhaust manifold, exhaust - 4 - 390 engine

4шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 65 mm, class 10.9, exhaust - 4 - 390 engine

8шт.

A77415

COVER

KIT intake manifold, Naturally Aspirated, order Ref. 4-6, intake - 4-390 engine, Includes: Ref. 4, 5 and 6.

1шт.

4

J904340

COVER

intake, intake - 4-390 engine

1шт.

5

J907185

PLUG

manifold, remove to install cold start, intake - 4-390 engine

1шт.

6

J906773

WASHER

plug sealing, intake - 4-390 engine

1шт.

7

J914028

GASKET

intake manifold, intake - 4-390 engine

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold, Intake - 4-390 engine Hex Flg Hd, M8 x 1.25 x 25

10шт.

9

J901919

MANIFOLD

exhaust, Turbocharged, exhaust - 4t - 390 engine

1шт.

10

J905443

MANIFOLD GASKET

exhaust manifold, exhaust - 4t - 390 engine

4шт.

11

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 65 mm, class 10.9, exhaust - 4t - 390 engine

8шт.

A77416

COVER

KIT intake manifold, Turbocharged, order items 12-14, intake - 4t - 390 engine, Includes: Ref. 12, 13 and 14.

1шт.

12

J904339

COVER

MANIFOLD intake, intake - 4t - 390 engine

1шт.

13

J907185

PLUG

manifold, remove to install cold start, intake - 4t - 390 engine

1шт.

14

J906773

WASHER

plug sealing, intake - 4t - 390 engine

1шт.

15

J914028

GASKET

intake manifold, intake - 4t - 390 engine

1шт.

16

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold, Intake - 4T-390 engine Hex Flg Hd, M8 x 1.25 x 25

10шт.
