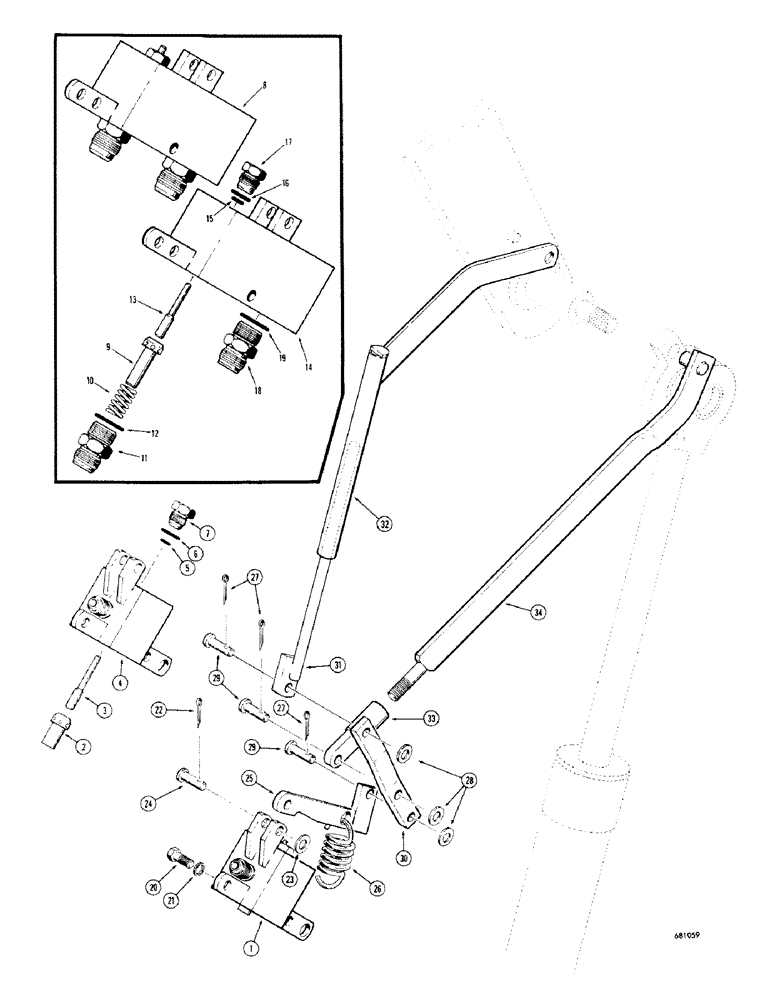

Запчасти Case 680CK (160) - LOADER ANTI-ROLLBACK PARTS (82) - FRONT LOADER & BUCKET

1

L13702

VALVE - anti-rollback, loader bucket (Used before tractor serial number 9102141) When stock is exhausted, order L15373 valve for service (Reference number 8 below)

1шт.

2

D41036

FITTING

RESTRICTOR - check valve (Order 1 - L15263 restrictor, 1 - D43831 spring and 1 - D43832 adapter for service)

1шт.

3

D41060

PLUNGER

- check valve

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

5

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - "O"ring, small

1шт.

7

D41051

GLAND

- valve

1шт.

8

L15373

VALVE - anti-rollback, loader bucket (Used on tractor serial number 9102141 and after)

1шт.

9

L15263

RESTRICTOR - check valve

1шт.

10

D43831

SPRING

- valve

1шт.

11

D43832

FITTING

ADAPTER - male, straight

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

13

D41060

PLUNGER

- check valve

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

15

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - "O"ring, small

1шт.

17

D41051

GLAND

- valve

1шт.

18

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

20

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

23

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

24

D42809

PIN

- valve control, Serial Range: lever-valve

1шт.

25

D41059

LEVER

- anti-rollback control, at valve

1шт.

26

D41041

SPRING

- lever return

1шт.

27

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

28

195-25

WASHER,3/8"

- plain () 3/8"

3шт.

29

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Lever mounting 3/8" x 1.060"

3шт.

30

D43128

- connecting, at rollback adjustment rod and push rod

1шт.

31

D43127

ROD

- push, valve closing

1шт.

32

D43131

TUBE - push rod engagement

1шт.

33

D41044

ROD

END - rollback adjustment rod

1шт.

34

D41066

ROD

- rollback adjustment

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring, large

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring, large

1шт.
