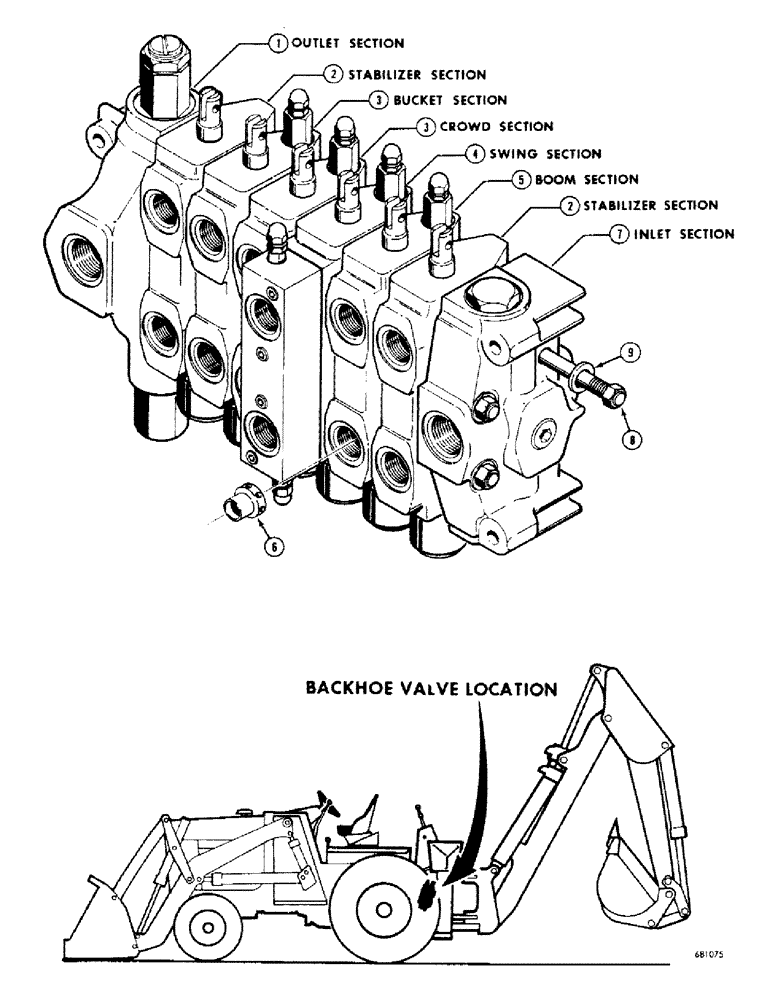

Запчасти Case 680CK (238) - D38705 AND D44379 BACKHOE CONTROL VALVES (84) - BOOMS, DIPPERS & BUCKETS

D38705

VALVE - backhoe control (Order D44379 backhoe control valve for service)

1шт.

D44379

LOCK VALVE

VALVE - backhoe control

1шт.

1

D40758

OUTLET SECTION - backhoe control valve (Order D48112 outlet section for service), Parts list Figure 240

1шт.

D48112

OUTLET SECTION - backhoe control valve, Parts list Figure 240

1шт.

2

D40754

STABILIZER SECTION - backhoe control valve, Parts list Figure 242

2шт.

3

D40757

BUCKET AND CROWD SECTION - backhoe control valve, Parts list Figure 244

2шт.

4

D40756

KNIFE SECTION

SWING SECTION - backhoe control valve, Parts list Figure 246

1шт.

5

D40755

BOOM SECTION - backhoe control valve, Parts list Figure 248

1шт.

6

D27565

VALVE

RESTRICTOR - boom drop, boom section only

1шт.

7

D40753

INLET SECTION - backhoe control valve, Parts list Figure 240

1шт.

8

D47626

STUD ASSEMBLY - backhoe control valve

4шт.

9

195-33

WASHER,1/2"

- plain () 1/2"

4шт.
