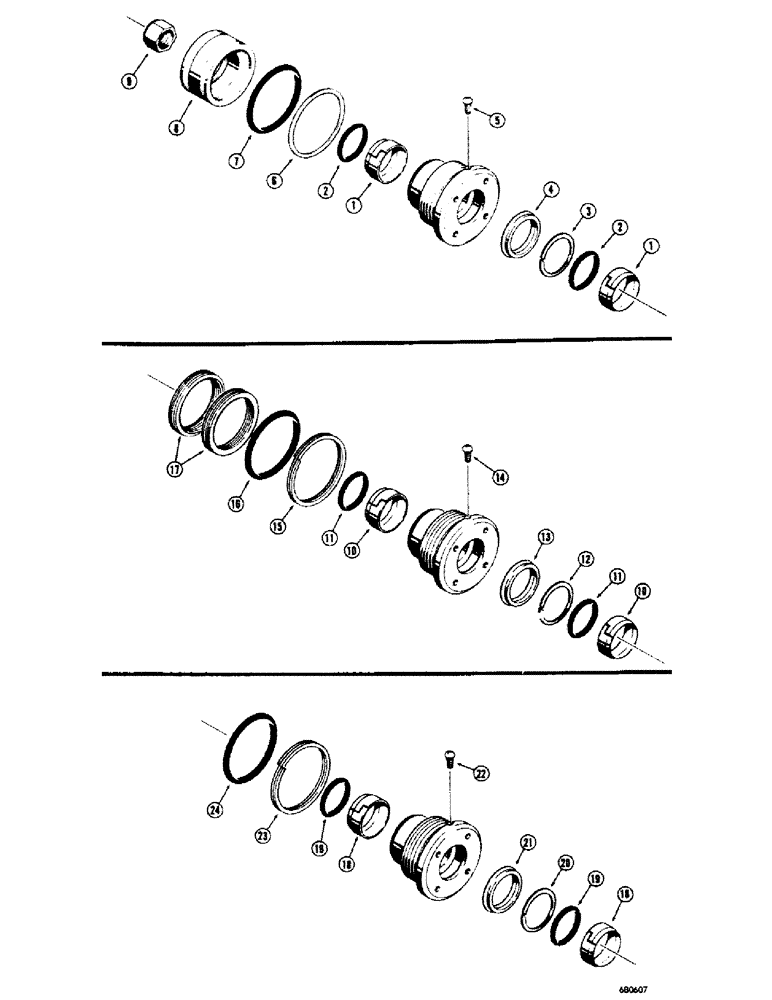

Запчасти Case 680CK (264) - CYLINDER PACKING KITS, 4" CYLINDER TUBE I.D. X 2" PISTON ROD (35) - HYDRAULIC SYSTEMS

D37358

GLAND

KIT - cylinder packing, gland type cylinder

1шт.

When the cylinder packing kit is exhausted, use D42876 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as individual items plus (1) gland packing kit. When servicing an early production cylinder containing a fabric piston packing ring, order (2) D43112 piston packings and (1) D43113 bronze centering ring for service.

1шт.

1

D27380

SCRAPER RING

WIPER - piston rod

2шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring, wiper

2шт.

3

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod seal

1шт.

4

D36971

RING

SEAL - piston rod

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27382

RING

- backup, gland seal

1шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland seal

1шт.

8

D36964

PACKING

- piston

1шт.

9

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

D41401

SEAL KIT

KIT - cylinder packing, gland type cylinder (Order with 1- D43113 bronze packing ring when used on cylinder not having bronze packing ring)

1шт.

When the cylinder packing kit is exhausted, use D42876 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as individual items plus (1) gland packing kit. When servicing an early production cylinder containing a fabric piston packing ring, order (2) D43112 piston packings and (1) D43113 bronze centering ring for service.

1шт.

10

D27380

SCRAPER RING

WIPER - piston rod, D41401 Cylinder packing kit

2шт.

11

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring, wiper, D41401 Cylinder packing kit

2шт.

12

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod seal, D41401 Cylinder packing kit

1шт.

13

D36971

RING

SEAL - piston rod, D41401 Cylinder packing kit

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D41401 Cylinder packing kit

1шт.

15

D27382

RING

- backup, gland seal, D41401 Cylinder packing kit

1шт.

16

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland seal, D41401 Cylinder packing kit

1шт.

17

D40689

PACKING

- piston, D41401 Cylinder kit

2шт.

D42876

GLAND

KIT - gland packing, D41401 Cylinder

1шт.

When the cylinder packing kit is exhausted, use D42876 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as individual items plus (1) gland packing kit. When servicing an early production cylinder containing a fabric piston packing ring, order (2) D43112 piston packings and (1) D43113 bronze centering ring for service.

1шт.

18

D27380

SCRAPER RING

WIPER - piston rod, D42876 cylinder gland packing kit

2шт.

19

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring, wiper, D42876 cylinder gland packing kit

2шт.

20

D23500

RING - backup, piston rod seal, D42876 cylinder gland packing kit

1шт.

21

D36971

RING

SEAL - piston rod, D42876 cylinder gland packing kit

1шт.

22

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42876 cylinder gland packing kit

1шт.

23

D27382

RING

- backup, gland seal, D42876 cylinder gland packing kit

1шт.

24

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland seal, D42876 cylinder gland packing kit

1шт.
