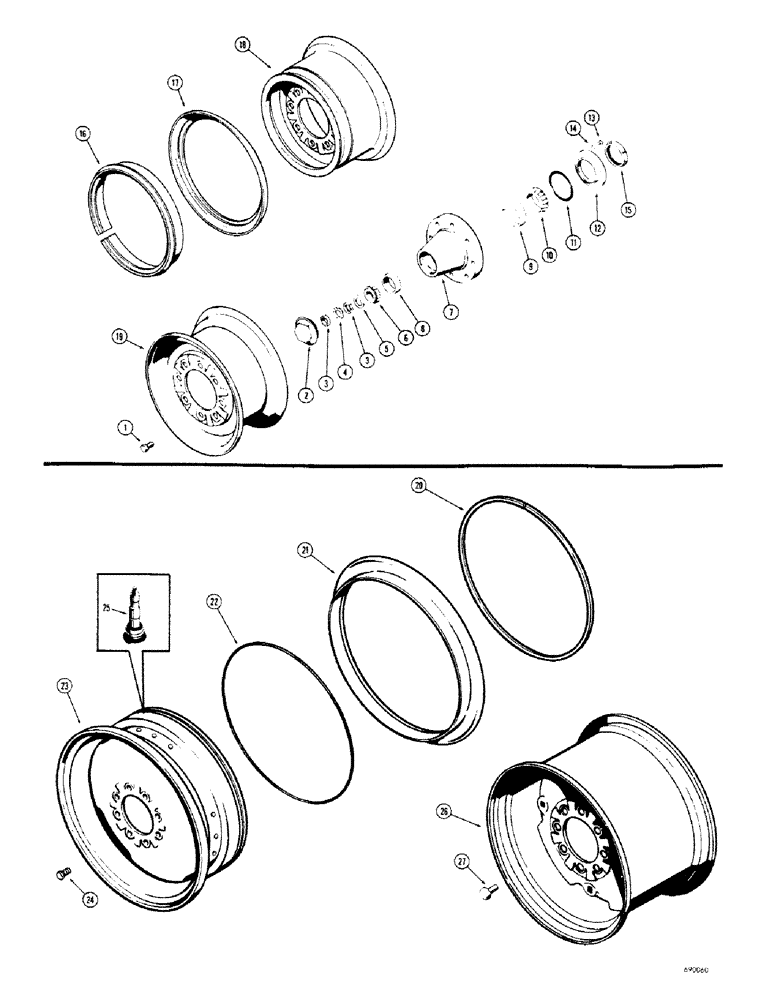

Запчасти Case 680CK (124) - FRONT STEERING WHEELS, HUB BEARINGS AND RELATED PARTS (44) - WHEELS

1

B18264

WHEEL BOLT

BOLT -, Serial Range: wheel-hub

16шт.

2

A26011

CAP

- outer bearing, wheel

2шт.

3

25-1516

NUT,Jam, 1"-14, G5

- hex., lock (1" - 14 NF)

4шт.

4

A26542

LOCK WASHER

- lock, special

2шт.

5

A26681

BEARING WASHER

WASHER - thrust, outer bearing

2шт.

6

A26679

ROLLER BEARING,1.25" ID x 0.9983"

CONE - bearing, outer

2шт.

L11382

WHEEL ASSY.

HUB ASSEMBLY - front steering wheel

2шт.

7

NSS

NOT SOLD SEPARAT

HUB - front steering wheel

1шт.

8

A26680

ROLLER BEARING,2.7510" OD x 0.75"

CUP - bearing, outer

1шт.

9

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - bearing, inner

1шт.

10

A27301

ROLLER BEARING,2" ID x 1.193"

CONE - bearing, inner

2шт.

11

L45639

O-RING

SEAL - "O" ring, retainer (Replaces A26993)

2шт.

REF#11 ANOTHER SEAL USED(NOT A SUB) 10/31/96

1шт.

12

A26992

RETAINER

- seal

2шт.

13

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

RHMS - 1/4" - 2- NC x 1/2"

10шт.

14

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, external tooth (1/4") Shakeproof

10шт.

15

A26991

SEAL

- front steering wheel

2шт.

L12274

WHEEL ASSEMBLY - front steering, used on models with 8.25 X 15 - 12 ply tires

2шт.

16

L30746

LOCKING RING

RING - lock, used on models with 8.25 X 15 - 12 ply tires

1шт.

17

L30745

RING

- side, used on models with 8.25 X 15 - 12 ply tires

1шт.

18

NSS

NOT SOLD SEPARAT

RIM - wheel, front steering, used on models with 8.25 X 15 - 12 ply tires

1шт.

19

L11745

WHEEL (STEERING)

WHEEL - front steering, used on models with 11.00 X 16 - 14 ply tires

2шт.

20

A13098

RING

- lock, rim, rear drive wheels used on models with 12.00 X 24 - 8 ply tires

2шт.

21

A13097

RING

- side, rim, rear drive wheels used on models with 12.00 X 24 - 8 ply tires

2шт.

22

A13099

O-RING,22 1" ID x 0.25"

SEAL - "O" ring, rim, rear drive wheels used on models with 12.00 X 24 - 8 ply tires

2шт.

23

A13642

WHEEL

- drive, rear, rear drive wheels used on models with 12.00 X 24 - 8 ply tires

2шт.

24

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16") Early production, See note at end of Figure 126, rear drive wheels used on models with 12.00 X 24 - 8 ply tires

16шт.

L15106

WHEEL BOLT

BOLT - wheel to hub (5/8") Late production, See note at end of Figure 126, rear drive wheels used on models with 12.00 X 24 - 8 ply tires

16шт.

25

A20058

VALVE STEM

- Wheel, rear drive wheels used on models with 12.00 X 24 - 8 ply tires

2шт.

26

A35906

WHEEL

- drive, rear, used on models with 14.9 X 24 - 8 ply tires

2шт.

27

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16") Early production, See note at end of Figure 126, used on models with 14.9 X 24 - 8 ply tires

16шт.

L15106

WHEEL BOLT

BOLT - wheel to hub (5/8") Late production, See note at end of Figure 126, used on models with 14.9 X 24 - 8 ply tires

13шт.
