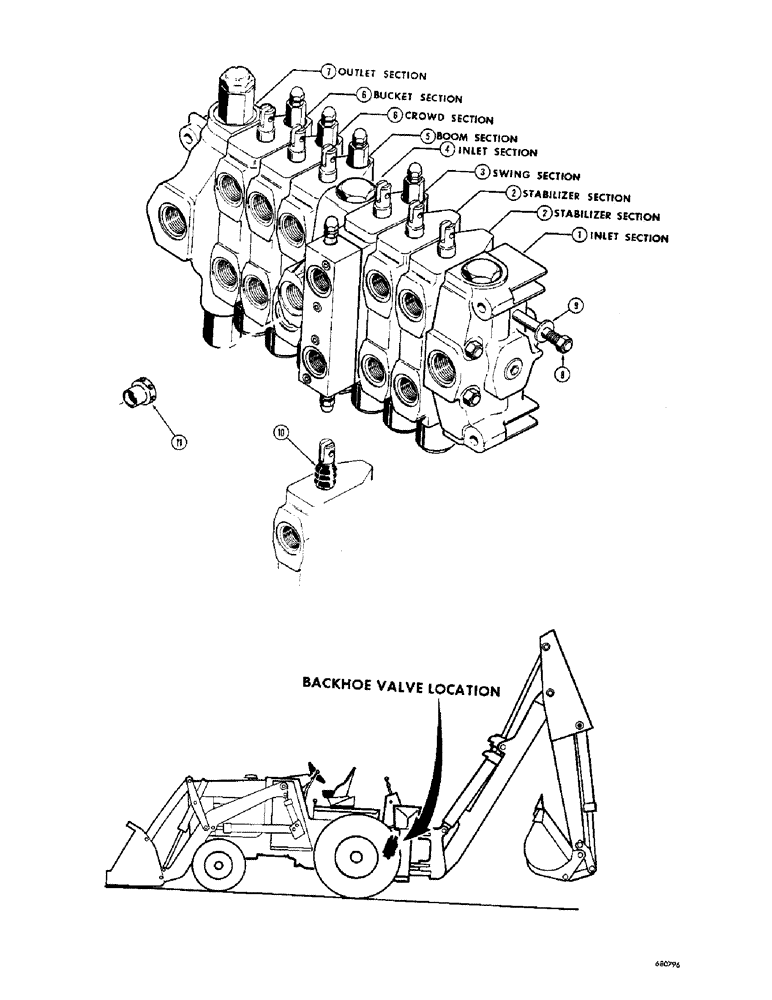

Запчасти Case 680CK (220) - L53732 COMMERCIAL BACKHOE CONTROL VALVE (35) - HYDRAULIC SYSTEMS

L53732

LOCK VALVE

VALVE - backhoe control, Includes: Ref. 1 - 9

1шт.

1

L35520

X

INLET SECTION - end, backhoe control valve, Parts list Figure 222

1шт.

2

L33845

STABILIZER SECTION - backhoe control valve, Parts list Figure 224

2шт.

3

L33846

SWING SECTION - backhoe control valve, Parts list Figure 226

1шт.

4

L35521

INLET SECTION - center, backhoe control valve, Parts list Figure 222

1шт.

5

L33847

BOOM

SECTION - backhoe control valve, Parts list Figure 230

1шт.

6

L33484

PISTON

BUCKET AND CROWD SECTION - backhoe control valve (Parts list page 228)

2шт.

7

D47623

VALVE BLOCK

OUTLET SECTION - backhoe control valve, Parts list Figure 222

1шт.

8

D47627

STUD ASSEMBLY - backhoe control valve

4шт.

9

195-33

WASHER,1/2"

- plain () 1/2"

4шт.

10

D46952

BELLOWS

- valve spool

6шт.

11

D47881

RESTRICTOR - boom drop, boom section only

1шт.
