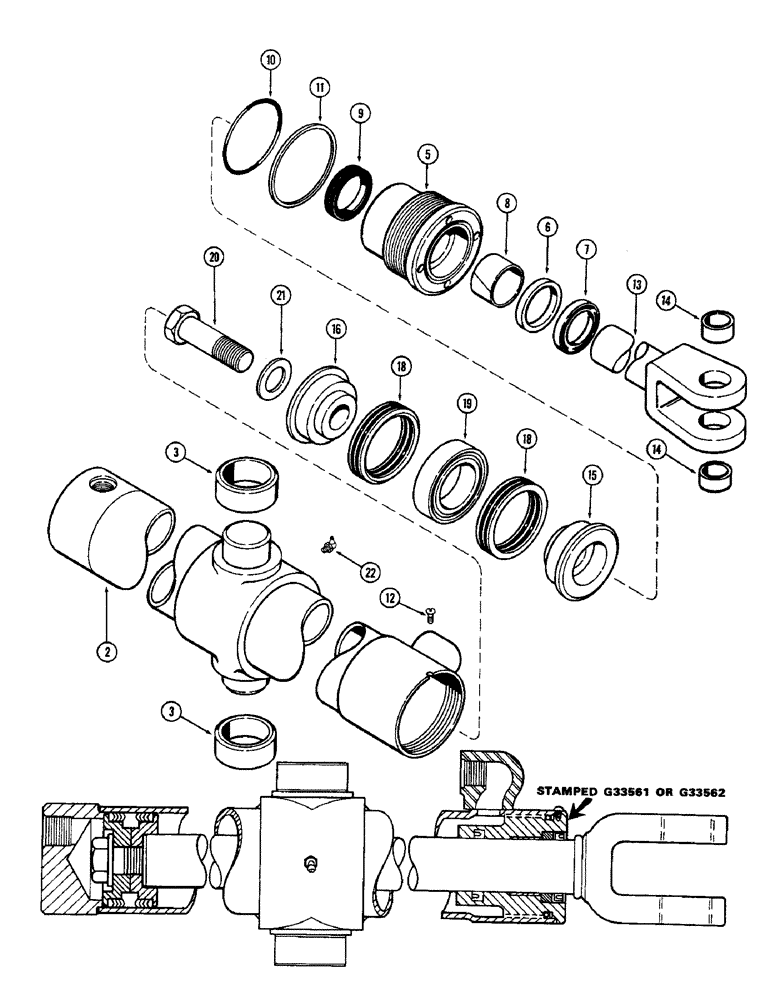

Запчасти Case 680CK (254) - G33561 AND G33562 LOADER BUCKET CYLINDERS, 3" DIA. CYL. W/ 23 1/2" STROKE, GLAND W/ CENTER BEARING (35) - HYDRAULIC SYSTEMS

G33561

CYLINDER

ASSY. - bucket, left hand (Stamped G33561 on gland), Inlcudes: Ref. 2 - 22

1шт.

G33562

CYLINDER

ASSY. - bucket, right hand (Stamped G33562 on gland), Inlcudes: Ref. 2 - 22

1шт.

2

D35103

TUBE

ASSY. - cylinder body, left hand, Inlcudes: Ref. 3

1шт.

2

D35102

TUBE

ASSY. - cylinder body, right hand, Inlcudes: Ref. 3

1шт.

3

D31511

BUSHING

- tube trunnion

2шт.

G34633

GLAND

ASSY. - (Hand stamp for identification), Inlcudes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston bearing

1шт.

Part of cylinder repair seal kit P/N G34643

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - piston rod, center

1шт.

Part of cylinder repair seal kit P/N G34643

1шт.

9

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G34643

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G34643

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G34643

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

G33563

ROD

ASSY. - piston (1-3/4" dia.), Inlcudes: Ref. 14

1шт.

14

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

15

G33331

PISTON

- split (Rod end)

1шт.

16

D28896

PISTON

- split (Bolt end)

1шт.

G33151

PACKING

ASSY. - piston, Inlcudes: Ref. 18 and 19

1шт.

Part of cylinder repair seal kit P/N G34643

1шт.

18

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

19

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

20

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

21

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston bolt (1-7/64 x 1-7/8 x 9/64")

1шт.

22

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45 degrees)

1шт.

G34643

GASKET KIT

SEAL KIT - cylinder repair, Includes: Ref. 7 thru 11 and 16

1шт.
