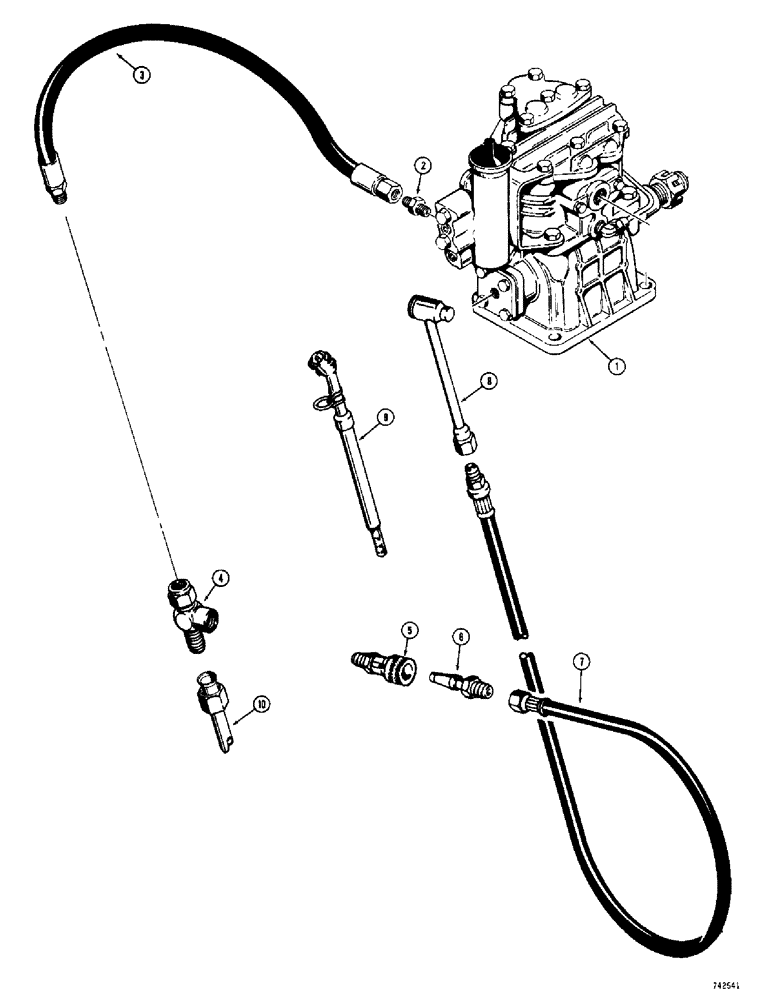

Запчасти Case 780 (244) - BRAKE SYSTEM, TIRE INFLATION PARTS (07) - BRAKES

1

REF

INSTRUCTION

COMPRESSOR - air, parts list Figures 246 and 250

1шт.

2

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Male, straight 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

3

L42866

HOSE -, Serial Range: compressor-tube

1шт.

4

D54750

FITTING - adjustable, swivel, three way

1шт.

5

L13978

VALVE

COUPLING - disconnect, female

1шт.

6

L13979

COUPLING

- disconnect, male

1шт.

7

L15274

HOSE

- tire inflation

1шт.

8

L78137

SOCKET

CHUCK - tire, inflation

1шт.

9

L13977

GAUGE ASSY.

GAUGE - check, tire air pressure

1шт.

10

L43925

TUBE - air compressor to reservoir 0.375" OD

1шт.
