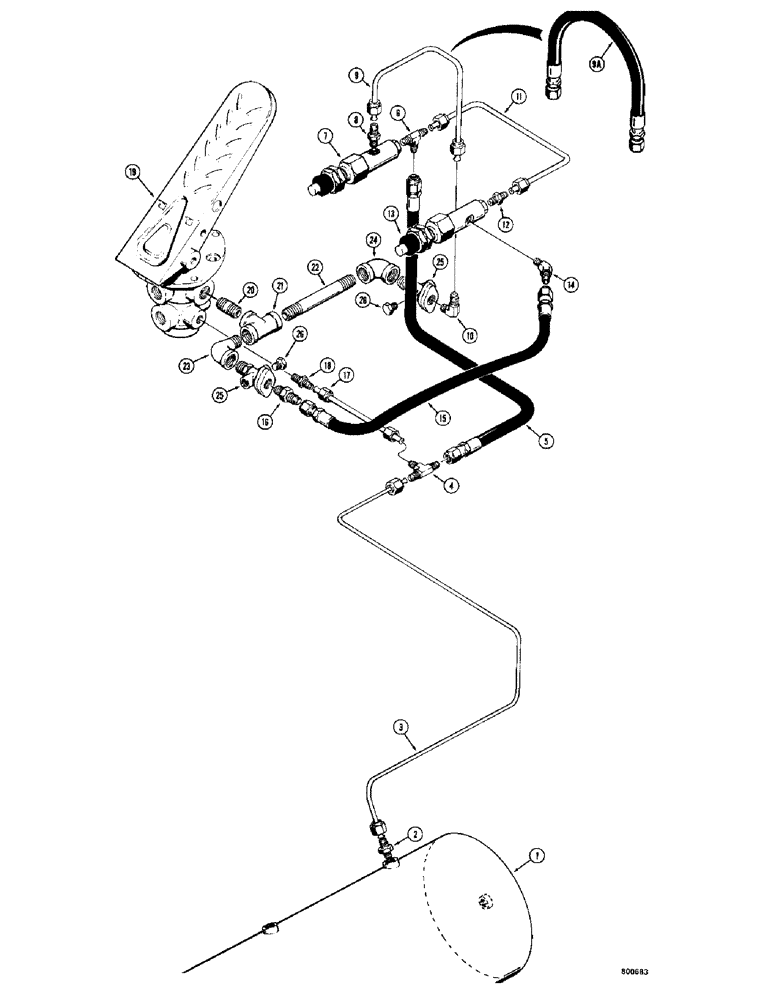

Запчасти Case 780 (258) - BRAKE SYSTEM, CONTROL VALVE CIRCUIT (07) - BRAKES

1

L19210

RESERVOIR - air

1шт.

2

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - straight, male

1шт.

3

L43900

TUBE - reservoir to tee 0.375" OD

1шт.

4

218-593

TEE,9/16"-18, 37 Degree

FITTING - three way, reservoir to treadle

1шт.

5

L43923

HOSE

- tee to L.H. brake control, 8" (203 mm) long

1шт.

6

218-622

FITTING - three way, male

1шт.

7

L14818

VALVE

- control, L.H. brake, parts list Figure 268

1шт.

8

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Male, straight 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

9

L43909

TUBE - L.H. brake control to double check valve, early production

1шт.

9a

L12347

PIPE

HOSE - L.H. brake control to double check valve, late production

1шт.

10

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

FITTING - male, 90 degrees

1шт.

11

L46167

TUBE - L.H. brake control to R.H. brake control

1шт.

12

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Male, straight 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

13

L14818

VALVE

- control, R.H. brake, parts list Figure 268

1шт.

14

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

male 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

15

L43923

HOSE

- R.H. brake control 8" (203 mm) long

1шт.

16

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF

1шт.

17

L43902

TUBE - tee to treadle 0.375" OD x 6.1" L

1шт.

18

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - straight, male

1шт.

19

L19709

VALVE, BRAKE

TREADLE AND VALVE ASSEMBLY - brake, parts list Figure 266

1шт.

20

221-1185

FITTING

NIPPLE - pipe, 1/2" NPT x 1-1/8"

1шт.

21

221-1424

TEE,Pipe, 1/2" NPT

FITTING - female, 1/2" NPT

1шт.

22

221-1195

NIPPLE - pipe, 1/2" NPT x 4-1/2"

1шт.

23

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

FITTING - street, 90 degrees, 1/2" NPT

1шт.

24

221-377

ELBOW,90 Degree, 1/2" NPT

FITTING - female, 90 degrees, 1/2" NPT

1шт.

25

L12635

VALVE

- double check, parts list Figure 270

2шт.

26

218-774

PLUG,9/16"-18, 37 Degree

- valve port

2шт.
