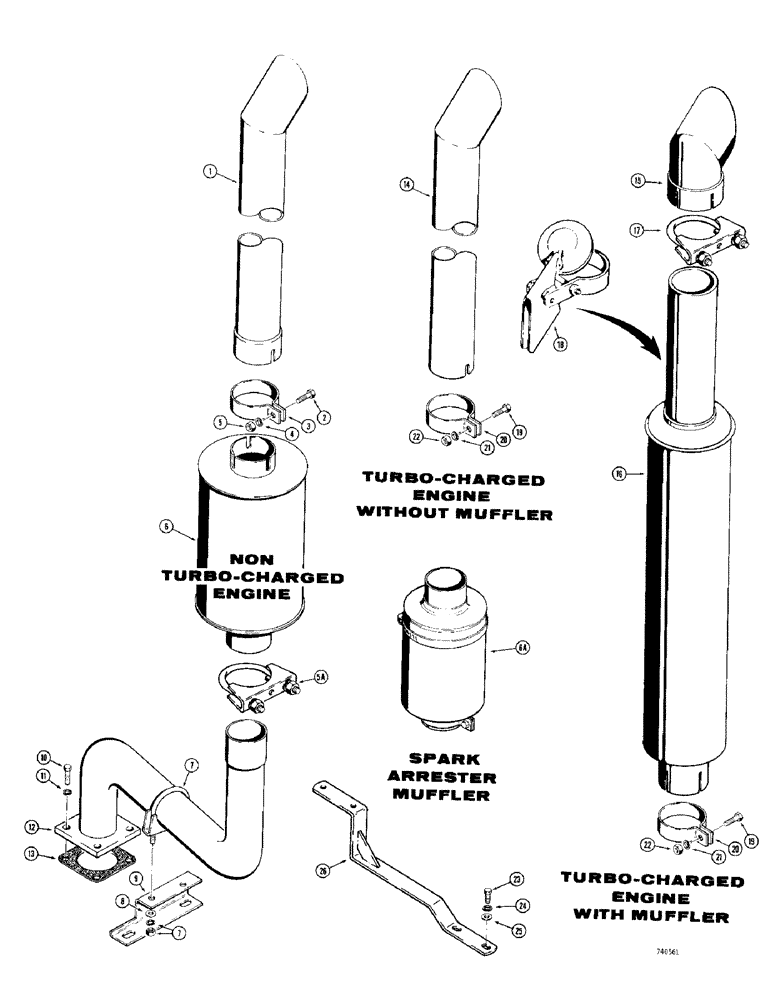

Запчасти Case 780 (014) - MUFFLER AND EXHAUST SYSTEM, USED ON MODELS WITHOUT TURBO CHARGE ENG (02) - ENGINE

1

L46490

PIPE

- extension, standard muffler, used with non turbo-charged engine before tractor SN. 5500550

1шт.

1

D57513

PIPE - extension, standard muffler, used with non turbo-charged engines tractor SN. 5500550 and after

1шт.

1

L48062

EXTENSION

PIPE - extension, spark arrester muffler, non turbo-charged engine

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

3

D55135

CLAMP

- muffler, upper

1шт.

4

92-6

LOCK WASHER,3/8"

1шт.

5

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

1шт.

5a

L73711

CLAMP

muffler, lower

1шт.

6

L46279

MUFFLER

engine

1шт.

6a

D53870

ARRESTER

MUFFLER - spark arrester, includes inlet clamp

1шт.

7

A13240

CLAMP,2-5/8" ID

muffler

1шт.

Flange and exhaust pipe, only.

1шт.

A13240 muffler clamp - Used w/ L47120

1шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

plain, 5/16"

2шт.

9

L18837

BRACE

exhaust pipe

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

L47120

PIPE

FLANGE AND EXHAUST PIPE - muffler to manifold, used with non turbo-charged engines before tractor SN. 5500550

1шт.

12

D57514

FLANGE AND EXHAUST PIPE - muffler to manifold, used with non turbo-charged engines tractor SN. 5500550 and after

1шт.

13

L14218

MANIFOLD GASKET

- flange

1шт.

14

D55867

PIPE - exhaust, engine used on models with muffler, turbo-charged

1шт.

15

D57740

PIPE, EXHAUST SYSTEM

PIPE - exhaust, engine used on models with muffler, turbo charged

1шт.

16

A64990

MUFFLER

engine exhaust, used on models w/ turbo-charged eng

1шт.

17

A62878

CLAMP

exhaust pipe to muffler, used on models w/ turbo-charged eng

1шт.

18

A62175

CYLINDER END CAP

rain includes mtg. hardware, used on models w/ turbo-charged eng

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Used on models w/ turbo-charged eng Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

20

A17851

CLAMP

exhaust pipe, used on models w/ turbo-charged eng

1шт.

21

92-6

LOCK WASHER,3/8"

used on models w/ turbo-charged eng 3/8"

1шт.

22

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC, used on models w/ turbo-charged eng

1шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used on models w/ turbo-charged eng Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

used on models w/ turbo-charged eng 3/8"

4шт.

25

195-25

WASHER,3/8"

flat, , used on models w/ turbo-charged eng 3/8"

4шт.

26

D56519

manifold, used on models w/ turbo-charged eng

1шт.
