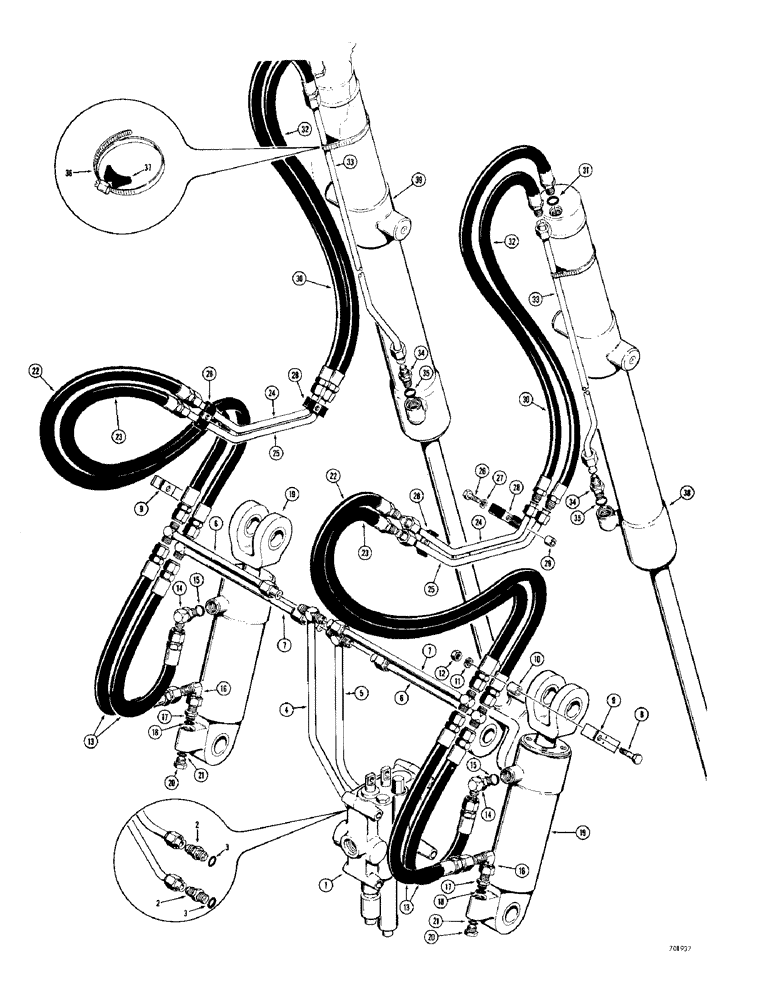

Запчасти Case 780 (288) - LOADER BUCKET TILT HYDRAULIC CIRCUIT, BEFORE TRACTOR SN. (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - loader control, see Figures 332 - 342 for proper valve

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight, Incl. Ref. 2

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Fitting

1шт.

4

L18918

TUBE - valve to cylinder, closed end 1" OD x 14.7, 5.9" L

1шт.

5

L18920

TUBE - valve to cylinders, rod end 1" OD x 20.9, 9.85" L

1шт.

6

L19000

TUBE - valve to cylinders, short

2шт.

7

L19002

TUBE - valve to cylinders, long

2шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

9

L19014

CLAMP - tube

2шт.

10

D34244

SPACER

- tube

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

13

L18776

HOSE

- tubes to hydra-leveling cylinders, 22" (559 mm) long

4шт.

14

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 15 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

16

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

2шт.

17

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - tube, straight, Incl. Ref. 18

2шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

19

REF

INSTRUCTION

CYLINDER - hydra-leveling, parts list Figures 388 - 392

2шт.

20

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 21 Hex Hd, 1 1/16"-12 ORB

2шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

22

L18775

HOSE

ASSY, To Bucket Tilt Cylinders, 36"

2шт.

23

L18774

HOSE,0.50" ID x 36.00", SAE 100R2 A

ASSY, 0.50" ID x 36.00", SAE 100R2A, To Bucket Tilt Cylinders

2шт.

24

L18903

TUBE - upper

2шт.

25

L18905

TUBE - lower

2шт.

26

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16"-18 NC x 1-1/2"

4шт.

27

92-5

LOCK WASHER,5/16"

4шт.

28

D33316

CLAMP

- tube

4шт.

29

D76212

BUSHING

SPACER - tube

4шт.

30

D39801

HOSE

- to bucket tilt cylinder, closed end, 33-1/2" (851 mm) long

2шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

2шт.

32

D39802

TUBE

HOSE - to bucket tilt cylinder, rod end, 32-1/2" (826 mm) long

2шт.

33

D39813

TUBE

- to bucket tilt cylinder, rod end

2шт.

34

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - tube, straight, Includes: Ref. 35

2шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

2шт.

36

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.

37

D38648

BLOCK

SPACER - rubber, Serial Range: tube-cylinder

2шт.

38

REF

INSTRUCTION

CYLINDER - bucket tilt, right-hand, see Figures 394 - 400 for proper cylinder

1шт.

39

REF

INSTRUCTION

CYLINDER - bucket tilt, left-hand, see Figures 394 - 400 for proper cylinder

1шт.
