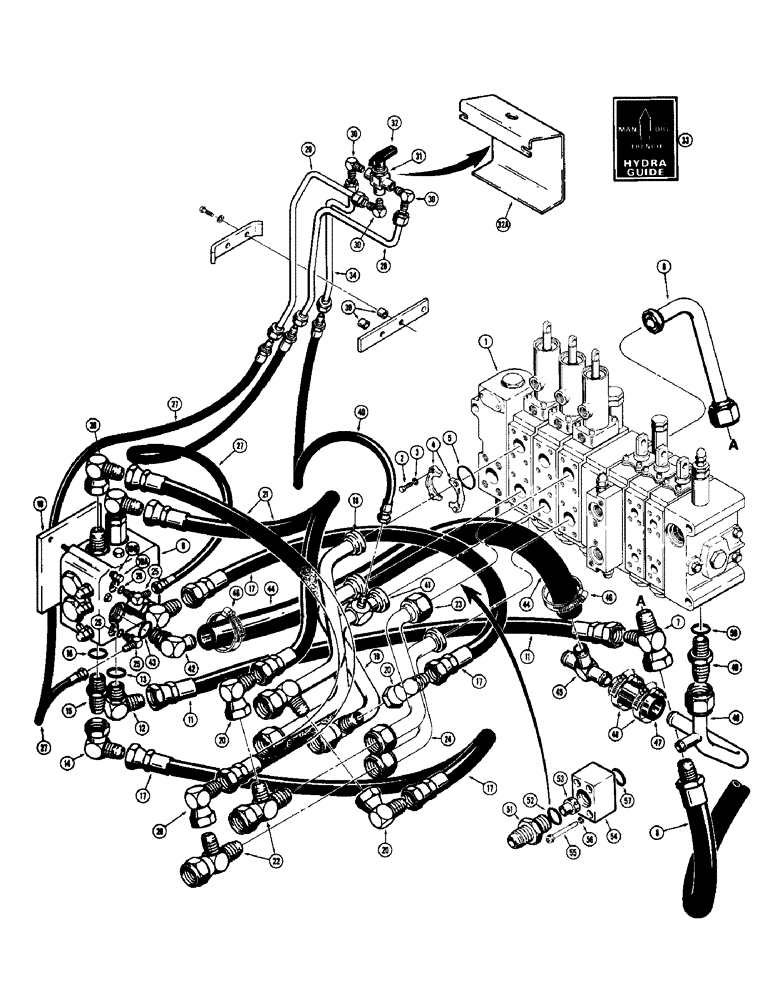

Запчасти Case 780 (316) - BACKHOE HYDRA-GUIDE CIRCUIT, USED ON MODELS WITH TWIN BACKHOE CONTROL TOWERS (08) - HYDRAULICS

1

D54704

VALVE - control, backhoe, parts list Figure 360

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

A12306

FLANGE

- split

2шт.

5

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

-tube seal

1шт.

6

D56200

TUBE

- backhoe pressure, at backhoe valve

1шт.

7

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

1шт.

8

D55586

HOSE

- backhoe pressure, intermediate, 24" (610 mm) long

1шт.

9

D55795

VALVE - control, hydra-guide, parts list Figure 386

1шт.

10

D55796

PLATE - mounting, control valve

1шт.

10a

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8" - 16 NC x 4-1/2"

2шт.

10b

92-6

LOCK WASHER,3/8"

2шт.

11

D48432

HOSE

- hydra-guide pressure, at no. 6 port of control valve, 27-1/2" (699 mm) long

1шт.

12

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 13 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

14

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight connector, Incl. Ref. 16

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

17

D48432

HOSE

- no. 5 port and no. 2 port of control valve to bucket sections of backhoe valve, 27-1/2" (699 mm) long

2шт.

18

D55780

TUBE - backhoe valve bucket section, upper port

1шт.

19

D55602

TUBE - backhoe valve bucket section, lower port

1шт.

20

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

5шт.

21

D55773

HOSE

- no. 7 port and no. 8 port of control valve to boom sections of backhoe valve, 20-1/2" (521 mm) long

2шт.

22

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

2шт.

23

D55612

TUBE - backhoe valve boom section, upper port

1шт.

24

D55610

TUBE

- backhoe valve boom section, lower port

1шт.

25

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

FITTING - adjustable, 90 degrees, Includes: Ref. 26

2шт.

26

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Fitting

1шт.

27

D55771

HOSE - no. 3 port of control valve to no. 2 port of selector valve; no. 4 port of control valve to no. 3 port of selector valve, 22" (559 mm) long

2шт.

28

D55787

TUBE - at selector valve port no. 2

1шт.

29

D55789

TUBE - at selector valve port no. 3

1шт.

30

218-1052

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/4"-18, NPTF

FITTING - 90 degrees, male

3шт.

31

D55981

LOCK VALVE

VALVE - selector, dig control, Includes: Ref. 32

1шт.

32

D57384

HANDLE - selector valve

1шт.

32a

D55798

COVER - selector valve

1шт.

33

321-2057

DECAL

- selector valve

1шт.

34

D55785

TUBE - at selector valve port no. 1

1шт.

35

D55774

BRACKET - tube clamp

1шт.

36

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

37

92-6

LOCK WASHER,3/8"

2шт.

38

D55775

CLAMP - selector valve tube

1шт.

39

D55769

SPACER

- tube

2шт.

40

D55770

HOSE - port no. 1 of selector valve to dipper section of backhoe valve, lower port, 14-1/2" (369 mm) long

1шт.

41

D55782

TUBE

- port no. 1 of selector valve to dipper section of backhoe valve, lower port

1шт.

42

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

- adjustable, 90 degrees, hose stem type, Incl. Ref. 43

1шт.

43

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

44

D95232

LARGE HOSE

HOSE - return, hydra-guide valve to tee, 24" (610 mm) long

1шт.

45

D55776

TEE

FITTING - hydra-guide return, hose stem

1шт.

46

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

47

R12351

LARGE HOSE

HOSE - return, tee to return tube

1шт.

48

D56933

TUBE - return, at backhoe valve

1шт.

49

D53574

FITTING - straight, male, special, Includes: Ref. 50

1шт.

50

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

51

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight connector, Incl. Ref. 52

1шт.

52

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, Fitting

1шт.

53

L47556

CHECK VALVE

RESTRICTOR - check

1шт.

54

L46421

HOUSNIG - restrictor

1шт.

55

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex, socket head, 3/8" - 16 NC x 1-3/4"

4шт.

56

92-6

LOCK WASHER,3/8"

4шт.

57

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

- housing

1шт.
