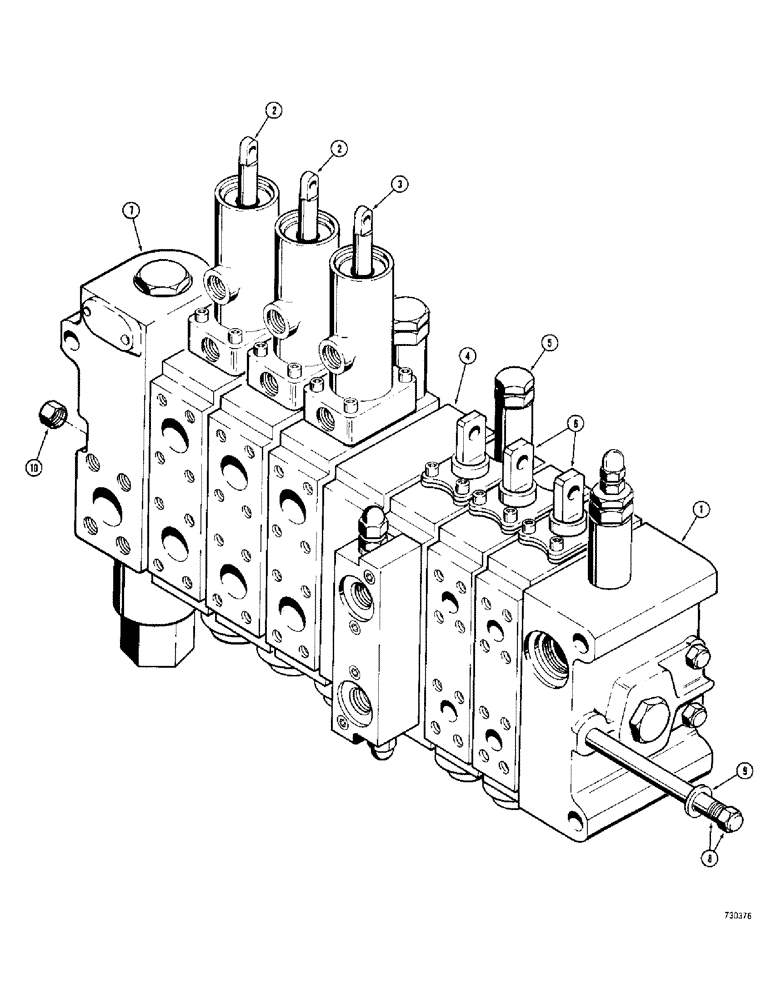

Запчасти Case 780 (360) - L48218 AND D54704 BACKHOE CONTROL VALVES, WITH POWER ASSIST FEATURE (08) - HYDRAULICS

L48218

VALVE - control, backhoe, before backhoe SN. 5500484, order D54704, Includes: Ref. 1 - 10

1шт.

D54704

VALVE - control, backhoe, backhoe SN. 5500484 and after; also SN. 550024, 5500298, 5500440, 5500441, 5500442, 5500448, 5500450, 5500451, 5500454, 5500457, 5500458, 5500470, 5500493 and 5500494, Includes: Ref. 1 - 10

1шт.

1

D53286

INLET SECTON - end, backhoe control valve, parts list Figure 364

1шт.

2

D53289

KNIFE SECTION

BUCKET AND DIPPER SECTION - backhoe control valve, used with L48218 valve, parts list Figure 374, order D55250

2шт.

2

D55250

BUCKET AND DIPPER SECTION - backhoe control valve, used with D54704 valve and as a service replacement for D53289 section, parts list Figure 374

2шт.

3

D53288

KNIFE SECTION

BOOM SECTION - backhoe control valve, used with L48218 valve, parts list Figure 382, order D55251

1шт.

3

D55251

BOOM SECTION - backhoe control valve, used with D54704 and as a service replacement for D53288 section, parts list Figure 382

1шт.

4

L32976

INLET SECTION - center, backhoe control valve, parts list Figure 364

1шт.

5

L32975

SWING SECTION - backhoe control valve, parts list Figure 368

1шт.

6

L32974

VALVE BLOCK

STABILIZER SECTION - backhoe control valve, parts listed Figure 366

2шт.

7

L32979

OUTLET SECTION - backhoe control valve, parts list Figure 364

1шт.

L32980

STUD ASSEMBLY - backhoe control valve, Includes: Ref. 8 - 10

3шт.

8

NSS

NOT SOLD SEPARAT

STUD AND NUT - control valve

1шт.

9

D30694

WASHER - stud

2шт.

10

25-168

NUT,1/2"-13, G5, Hvy

- hex, 1/2" - 13 NC

1шт.
