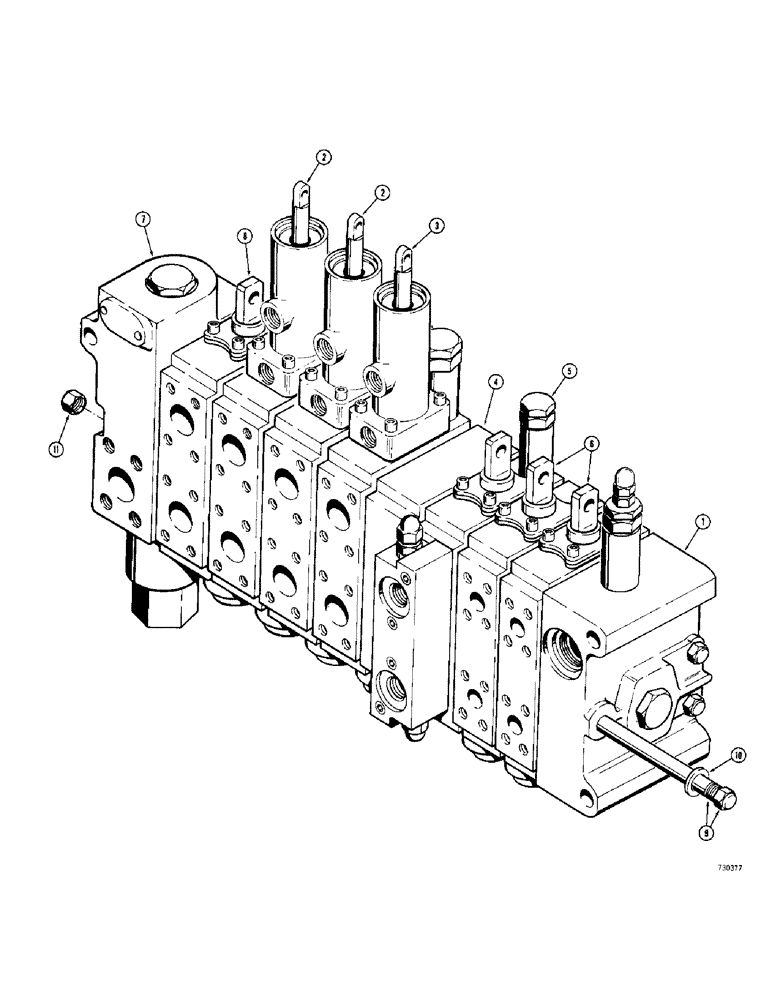

Запчасти Case 780 (362) - D56561 BACKHOE CONTROL VALVE, USED WITH EXTENDAHOE MODELS ONLY (08) - HYDRAULICS

D56561

VALVE - control, backhoe, 7 spool, Includes: Ref. 1 - 11

1шт.

1

D53286

INLET SECTION - end, backhoe control valve, parts list Figure 364

1шт.

2

D55250

BUCKET AND DIPPER SECTION - backhoe control valve, parts list Figure 374

2шт.

3

D55251

BOOM SECTION - backhoe control valve, parts list Figure 382

1шт.

4

L32976

INLET SECTION - center, backhoe control valve, parts list Figure 364

1шт.

5

L32975

SWING SECTION - backhoe control valve, parts list Figure 368

1шт.

6

L32974

VALVE BLOCK

STABILIZER SECTION - backhoe control valve, parts list Figure 366

2шт.

7

L32979

OUTLET SECTION - backhoe control valve, parts list Figure 364

1шт.

8

D59661

SPARE PART

DIPPER EXTENSION SECTION - backhoe control valve, parts list Figure 378

1шт.

D59660

STUD ASSEMBLY - backhoe control valve, Includes: Ref. 9 - 11

3шт.

9

NSS

NOT SOLD SEPARAT

STUD AND NUT - control valve

1шт.

10

D30694

WASHER - stud

2шт.

11

25-168

NUT,1/2"-13, G5, Hvy

- hex, 1/2" - 13 NC

1шт.
