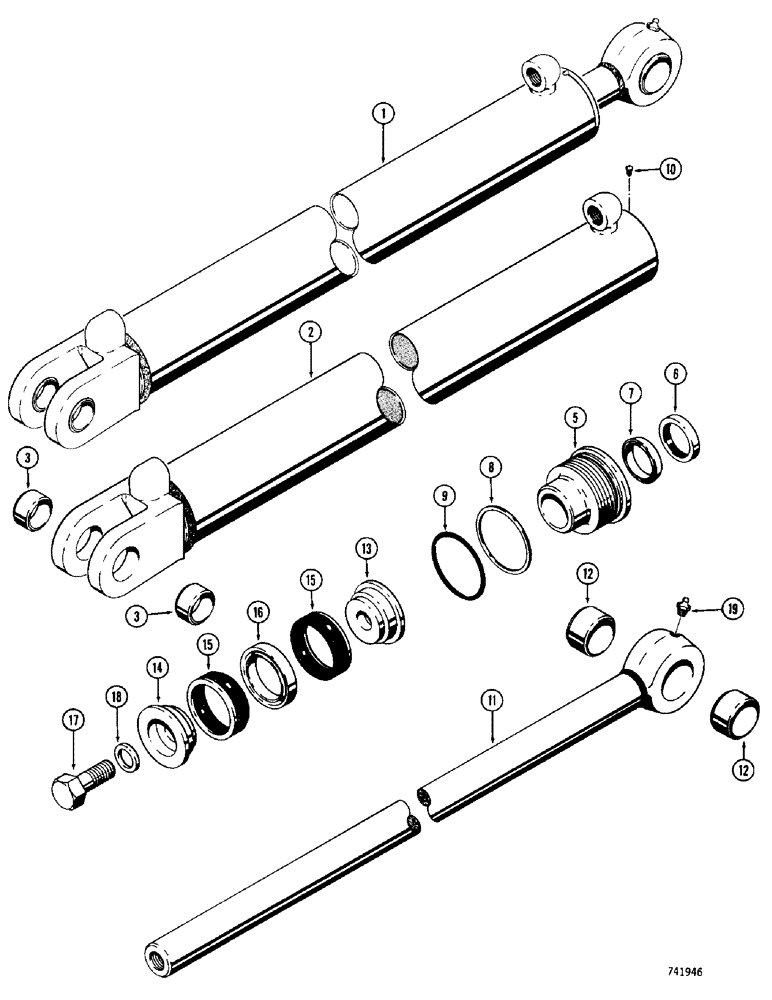

Запчасти Case 780 (430) - G33329 BACKHOE BOOM CYLINDER, WITHOUT MOUNTING BRACKETS, GLAND HAS NO I.D. MARKS (08) - HYDRAULICS

1

G33329

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - boom, 4-1/2" (114 mm) I.D. x 53-1/4" (1352 mm) stroke, Includes: Ref. 2 - 19

2шт.

2

G33330

TUBE,4.495" ID x 65.16" L

ASSEMBLY - cylinder, order (1) G33987 and (1) 218-5110, Includes: Ref. 3 and 4

2шт.

3

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- tube

2шт.

4

RESERVED

1шт.

G34329

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston, outer

1шт.

Part of Cylinder Repair Seal Kit, P/N G105513

1шт.

7

D45571

ROD

SEAL - piston rod, see G100780 for option

1шт.

Part of Cylinder Repair Seal Kit, P/N G105513

1шт.

Part of Piston Rod Seal, P/N G100780

1шт.

8

G32284

BACK-UP RING

- backup

1шт.

Part of Cylinder Repair Seal Kit, P/N G105513

1шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland

1шт.

Part of Cylinder Repair Seal Kit, P/N G105513

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8-32 NC x 1/4"

1шт.

11

G32531

ROD ASSEMBLY - piston, 2-1/2" (64 mm) dia., Includes: Ref. 12

1шт.

12

D46403

BUSHING,63.75mm ID x 76.2mm OD x 28.44mm L

- piston rod

2шт.

13

D49163

PISTON

- split, rod end

1шт.

14

D46931

PISTON

- split, bolt end

1шт.

15

D47205

PACKING

ASSEMBLY - piston, "V" type

2шт.

Part of Cylinder Repair Seal Kit, P/N G105513

1шт.

16

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

17

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

18

G32351

WASHER

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

G105513

GASKET KIT

SEAL KIT - cylinder repair, Includes Refs. 6, 7, 8, 9 and 15 same as G34333 kit plus Ref. 5A, on Figure 418

1шт.

G100780

SEAL

- piston rod, service option - extreme heat or cold, Includes: Ref. 7

1шт.
