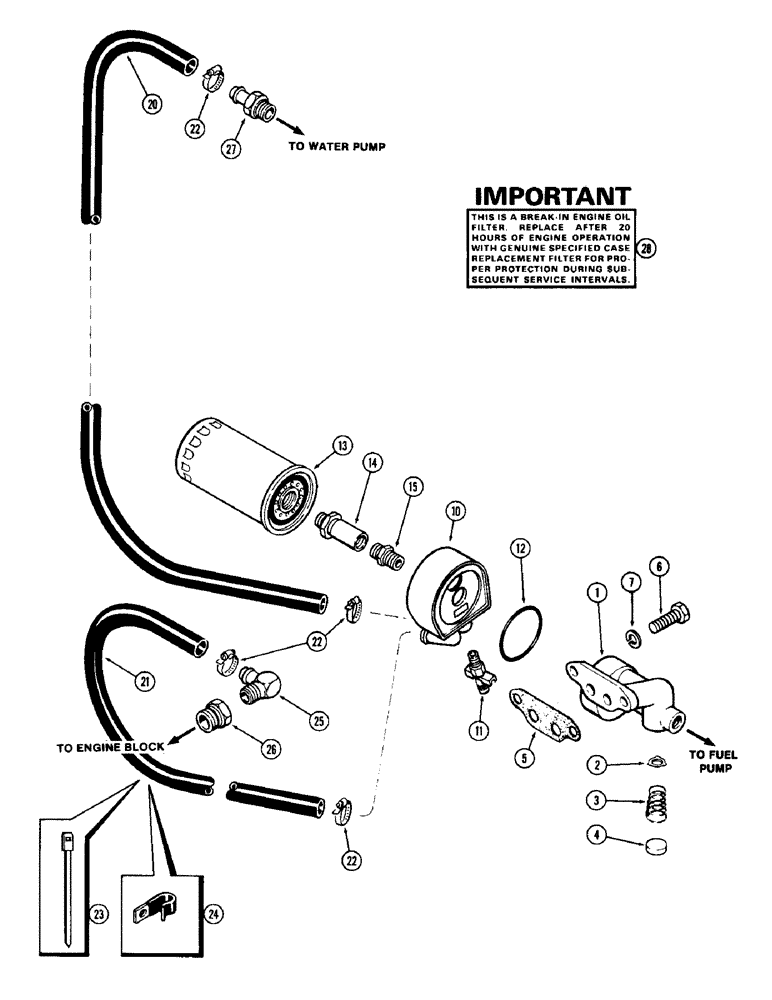

Запчасти Case 780 (028) - OIL FILTER AND COOLER, 336BD AND 336BDT DIESEL ENGS., ENG SN 10093006 & AFT (02) - ENGINE

1

A58752

BASE

ASSEMBLY - oil cooler and filter (Order A155956), Includes: Ref. 2 - 4

1шт.

2

A58754

VALVE

- relief

1шт.

3

A58755

FILTER

SPRING - relief valve

1шт.

4

41-1016

PLUG,Cup, 1"

- 1" cup type (25.4 mm)

1шт.

5

A58756

OIL PAN GASKET SET

- filter, Serial Range: base-block

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" NC hex

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

10

A66295

COOLER

- oil

1шт.

11

217-107

VALVE

DRAINCOCK - cooler (Discard 1/8" pipe plug in cooler)

1шт.

12

A153806

SEALING RING

- oil, cooler to base (2-5/8 x 3 x 3/16" square)

1шт.

13

A44081

ENGINE OIL FILTER

FILTER - oil

1шт.

14

A66992

ADAPTER

- (1"-12 NF external threads and 3/4"-16 NF internal threads)

1шт.

15

A58757

ADAPTER

- (3/4"-16 NF and 3/4"-10 NF external threads)

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE - water inlet, 47" long (1189.8 mm) (Order A42610)

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - water outlet, 25" long (635.0 mm) (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8" ID x 1" OD x 50 feet (15.87 x 25.4 mm x 127 m) long (Cut to length required)

1шт.

22

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16" (14.29 x 26.99 mm)

4шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE, Hose

1шт.

24

A59718

CLAMP

- hose

1шт.

25

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - 90 degree

1шт.

26

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

- 3/4" to 1/2"

1шт.

27

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

CONNECTOR - hose (To water pump) (Straight)

1шт.

28

321-3863

DECAL

- oil filter

1шт.
