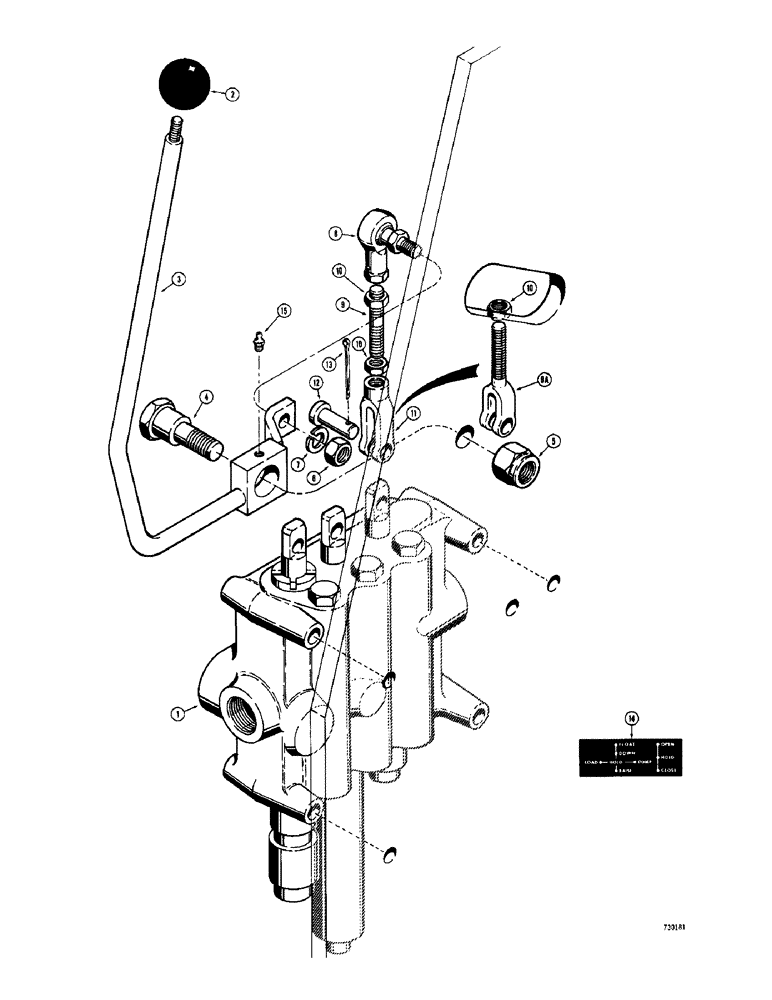

Запчасти Case 780 (468) - LOADER CONTROLS, 3 SPOOL VALVE AND LEVERS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

VALVE - loader control, 3 spool, see Figures 338 - 342 for proper valve

1шт.

2

A19416

BALL

SPARE PART KNOB - control lever

1шт.

3

L44311

SPARE PART LEVER - control, clam cylinder

1шт.

4

L44307

SPARE PART Mounting, control lever

1шт.

5

131-83

NUT,3/4"-10

1шт.

6

25-118

NUT,1/2"-20, G5

1шт.

7

92-8

LOCK WASHER,1/2"

1шт.

8

L44143

BALL JOINT

Adjustable, 90 degrees

1шт.

9

L48511

SPARE PART LINK - lever to valve, when stock is exhausted, supply 48626 for service

1шт.

9a

48626

SPARE PART YOKE -, Serial Range: lever-valve

1шт.

10

25-158

JAM NUT,Jam, 1/2"-20, G5

1 required with 48626 yoke; 2 required with L48511 link

1-2шт.

11

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE, used with L48511 link only

1шт.

12

141-6

CLEVIS PIN,1/2" x 1.360"

Yoke

1шт.

13

132-48

COTTER PIN,1/8" x 1"

1шт.

14

321-1318

SPARE PART 3 spool valve position

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight, 1/8" NPT

1шт.
