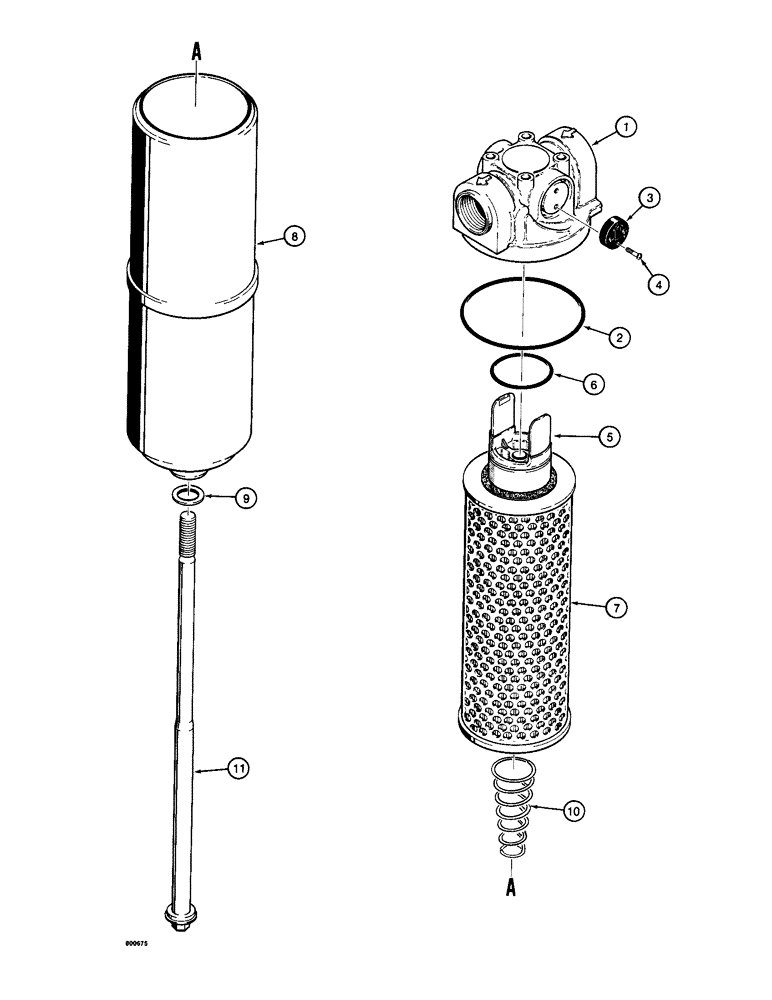

Запчасти Case 780 (548) - D90200 HYDRAULIC FILTER, SPECIAL (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

HEAD ASSEMBLY - hydraulic filter

1шт.

2

S107789

O-RING

- head assembly

1шт.

3

S104920

BRACKET

INDICATOR - head assembly

1шт.

4

S110018

SCREW - kit

1шт.

number. Service with 2 each of 70-2085 screw and 187-1110 screw.

1шт.

S110018 screw kit - This is an invalid

1шт.

5

S107803

VALVE

ASSEMBLY - bypass

1шт.

6

S104928

O-RING

1шт.

7

S111605

ELEMENT

1шт.

8

S113853

HOUSING

1шт.

9

S107793

SEALING WASHER

WASHER - gasket

1шт.

10

S104930

SPRING

1шт.

11

S111607

BOLT

- hex head

1шт.
