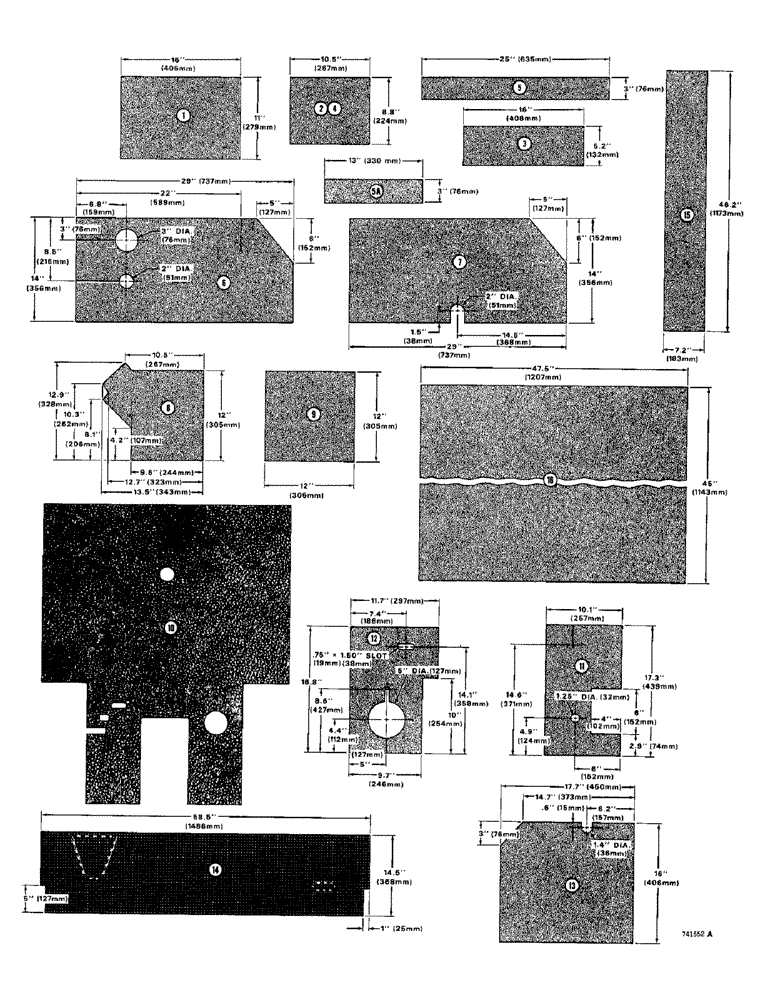

Запчасти Case 780 (580) - NOISE CONTROL PADDING - TRACTOR AND CANOPY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

PADDING - lower engine side panels, RH and LH, cut from D59896 bulk foam

4шт.

2

REF

INSTRUCTION

PADDING - upper engine side panels, RH and LH, front, cut from D59896 bulk foam

2шт.

3

REF

INSTRUCTION

PADDING - upper engine side panel, RH and LH, rear, cut from D59896 bulk foam

4шт.

4

REF

INSTRUCTION

PADDING - hood, LH side, cut from D59896 bulk foam

2шт.

5

REF

INSTRUCTION

PADDING - hood, rear, also RH side on machines with model 300 air compressor, cut from D59896 bulk foam

1-3шт.

5a

REF

INSTRUCTION

PADDING - hood RH side on machines with model 400 air compressor, if used, cut from D59896 bulk foam

2шт.

6

REF

INSTRUCTION

PADDING - firewall, RH, cut from D60787 bulk foam

1шт.

7

REF

INSTRUCTION

PADDING - firewall, LH, cut from D60787 bulk foam

1шт.

8

REF

INSTRUCTION

PADDING - under dash enclosure, RH and LH, cut from D60787 bulk foam

2шт.

9

REF

INSTRUCTION

PADDING - console access cover, cut from D59897 bulk foam

1шт.

10

D55350

SPARE PART MAT - floor

1шт.

11

REF

INSTRUCTION

PADDING - floorboard, RH, front, cut from D60787 bulk foam

1шт.

12

REF

INSTRUCTION

PADDING - floorboard, LH, front, cut from D60787 bulk foam

1шт.

13

REF

INSTRUCTION

PADDING - floorboard, RH, rear, cut from D60787 bulk foam

2шт.

14

REF

INSTRUCTION

PADDING - rear panel, cut from D59899 bulk foam

1шт.

15

REF

INSTRUCTION

PADDING - ROPS canopy ceiling, inside, cut from D59896 bulk foam

4шт.

16

REF

INSTRUCTION

PADDING - ROPS canopy ceiling, outside, cut from D60275 bulk foam, black color, if used

1шт.

16

D77795

SPARE PART PADDING - ROPS canopy ceiling, outside, cut from D60275 bulk foam, yellow color, if used

1шт.

D59896

PADDING

PADDING - bulk, sheet, 54" x 36" x 2" (1372 mm x 914 mm x 51 mm)

1шт.

D60787

SPARE PART PADDING - bulk, sheet, 24" x 48" x 80" (610 mm x 1219 mm x 2032 mm)

1шт.

D59897

PADDING

PADDING - bulk, sheet, 54" x 36" x 1" (1372 mm x 914 mm x 25 mm)

1шт.

D59899

PAD

PADDING - bulk, sheet, 54" x 36" x 1" (1372 mm x 914 mm x 25 mm)

1шт.

D60275

SPARE PART PADDING - bulk, sheet, 12" x 36" x 2" (305 mm x 924 mm x 51 mm)

1шт.

345-44

ADHESIVE

ADHESIVE - spary can

4шт.

345-47

SPARE PART SOLVENT - one quart can

2шт.
