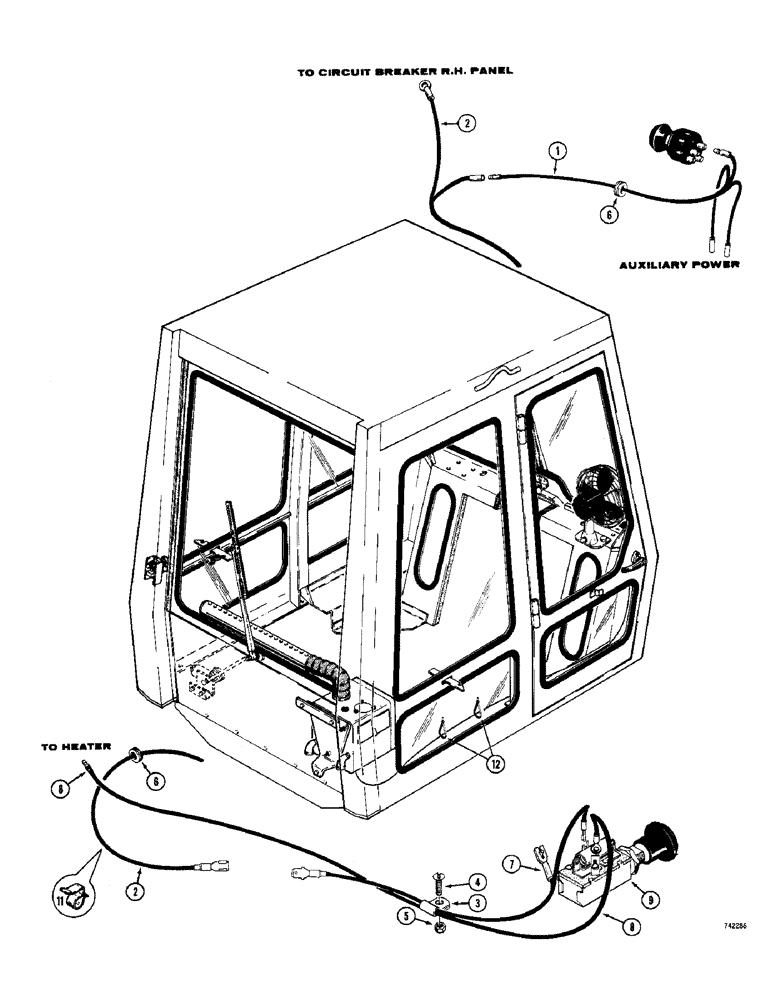

Запчасти Case 780 (596) - D64658 CAB WIRING, BOTTOM MOUNTED WINDSHIELD WIPERS (09) - CHASSIS/ATTACHMENTS

1

D54948

WIRE - circuit breaker to windshield wipers, front section, 23" (584 mm) long

1шт.

2

D64656

WIRE - circuit breaker to windshield wipers, rear section, 142" (3607 mm) long

1шт.

3

L18299

CLAMP

- windshield wiper wire

2шт.

4

174-205

SCREW,Phil Rnd Hd, 5/16" - 24 x 7/8"

- machine, #10 - 24 NC x 5/8"

2шт.

5

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

6

D37935

GROMMET - rear console and front cab panel 5/16" ID x 3/4" Groove Dia

2шт.

This item also used in ROPS canopy models with noise control option.

1шт.

7

D63712

WIRE - wiring harness to heater switch

1шт.

8

L33835

WIRE - jumper, heater, Serial Range: switch-heater

1шт.

9

L33827

SWITCH

- heater

1шт.

10

RESERVED

1шт.

11

49874

ROD

- cab wiring

1шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE, Wiring

3шт.

13

D60264

WIRE - circuit breaker to windshield wiper, front, ROPS canopy only, not shown

1шт.

This item also used in ROPS canopy models with noise control option.

1шт.
