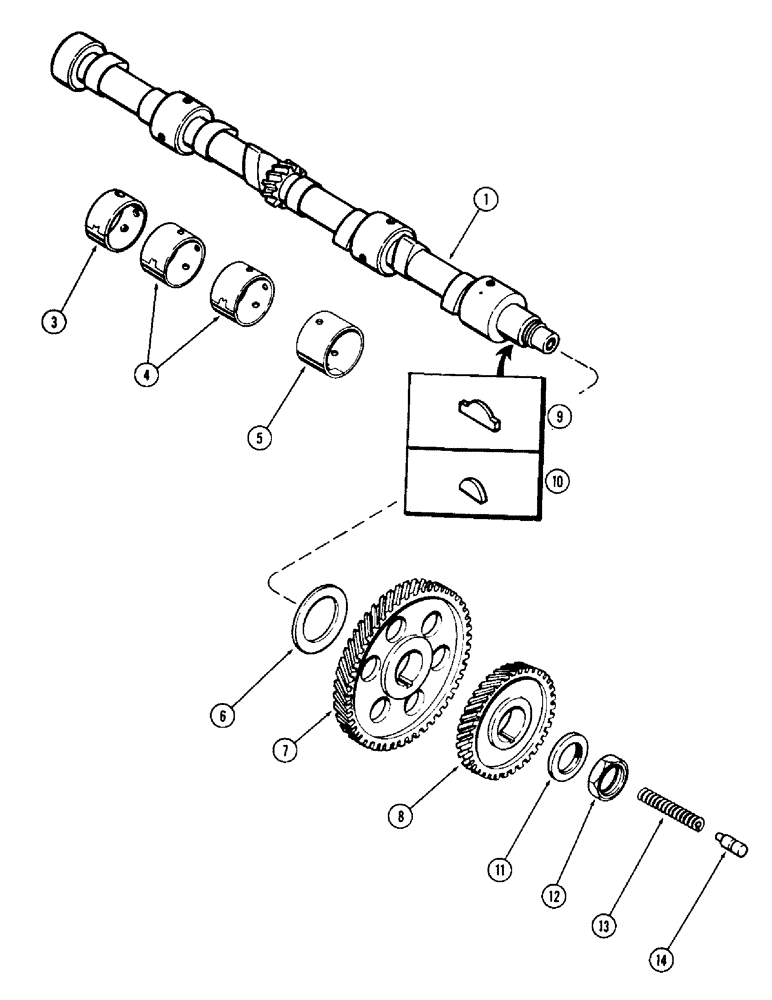

Запчасти Case 780 (044) - CAMSHAFT, 336BD AND 336BDT DIESEL ENGINES (02) - ENGINE

1

A66742

CAMSHAFT

- uses Hi-Pro key (See Ref. 9) (Engine serial no. 2324460 and after) (Replaces A62733)

1шт.

1

A58724

CAM

SHAFT - uses Woodruff key (See Ref. 10) (Prior to engine serial no. 2324460) (Order 1-A66742 camshaft and 1-126-227 Hi-Pro key)

1шт.

A23577

KIT

BUSHING KIT - camshaft (Order components), Includes: Ref. 3 - 5

1шт.

3

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- rear, 1-3/16" wide (30.16 mm)

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- intermediate, 1-7/16" wide (36.51 mm)

2шт.

5

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- front, 1-11/16" wide (42.86 mm)

1шт.

6

A21017

WASHER

- thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - (Hi-Pro) (Used with A62733 and A66742 camshaft)

1шт.

10

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

(Used with A58724 camshaft) #C, 5/16" x 1 1/8", HT

1шт.

11

A31038

THRUST WASHER

- camshaft nut (Replaces A58594 tab washer)

1шт.

12

A58595

NUT

- camshaft

1шт.

13

CASA27853

SPRING

- plunger, camshaft bumper

1шт.

14

A27852

PLUNGER

- thrust, camshaft

1шт.
