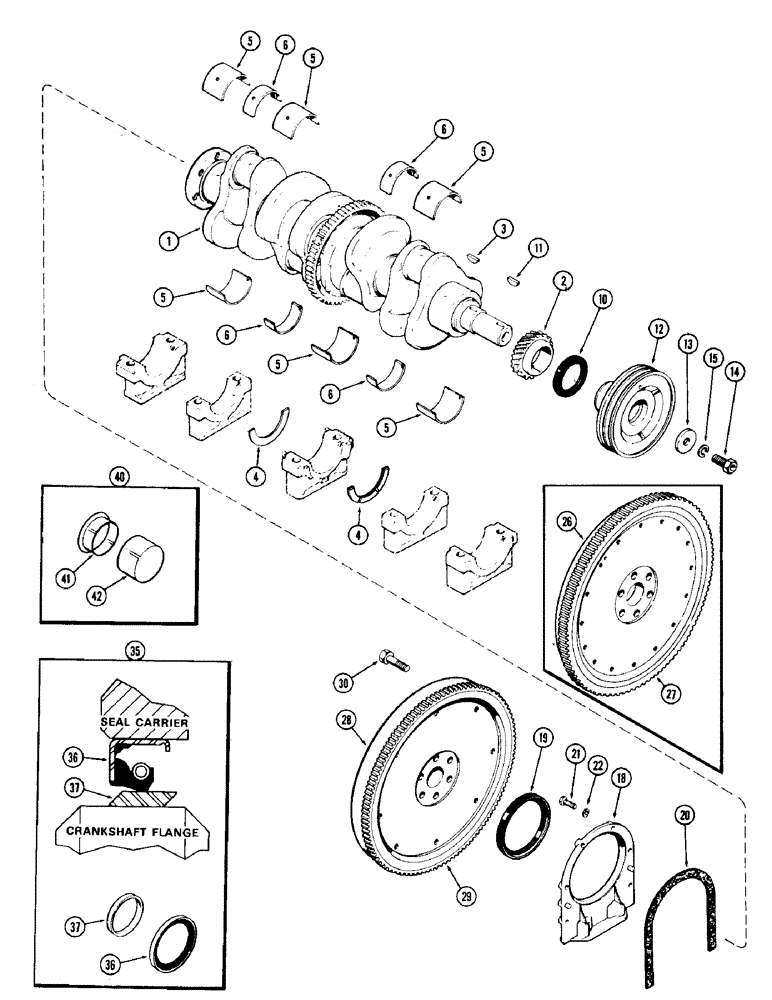

Запчасти Case 780 (054) - CRANKSHAFT AND FLYWHEEL, (336BD) AND (336BDT) DIESEL ENG, PRIOR ENG SN 10151968, USED W/ENG BALANCER (02) - ENGINE

1

A152202

CRANKSHAFT

ASSEMBLY - (Replaces A148621, A64473, A64376 and A62240), Includes: Ref. 2 and 3

1шт.

A152202 crankshaft assy - Balancer gear for this Ref. is A150125. See Service Bulletin CE 23-83 for installation instructions.

1шт.

2

A66404

GEAR

crankshaft (Replaces A58573)

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

thrust (Standard) 0.185" (4.76 mm)

2шт.

4

A42447

WASHER

thrust (Oversize) 0.191" (4.80 mm)

2шт.

5

A43090

BEARING LINER

main, wide (Standard) (Set of 2) (Replaces A41752)

3шт.

5

A41907

KIT

LINERS - main bearing, wide (Set of 2) 0.002" undersize (0.0508 mm)

3шт.

5

A41908

KIT

LINERS - main bearing, wide (Set of 2) 0.010" undersize (0.254 mm)

3шт.

5

A41909

BEARING LINER

LINERS - main, wide (Set of 2) 0.020" undersize (0.508 mm)

3шт.

5

A41910

JOURNAL

LINERS - main bearing, wide (Set of 2) 0.030" undersize (0.762 mm)

3шт.

6

A43089

BEARING LINER

main bearing, narrow (Standard) (Set of 2) (Replaces A41759)

2шт.

6

A41903

JOURNAL

LINERS - main bearing, narrow (Set of 2) 0.002" undersize (0.0508 mm)

2шт.

6

A41904

KIT

LINERS - main bearing, narrow (Set of 2) 0.010" undersize (0.254 mm)

2шт.

6

A41905

LINING

main bearing, narrow (Set of 2) 0.020" undersize (0.508 mm)

2шт.

6

A41906

JOURNAL

LINERS - main bearing, narrow (Set of 2) 0.030" undersize (0.762 mm)

2шт.

10

A62049

OIL SEAL

oil, front (See Ref. 40)

1шт.

11

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

12

A23644

PULLEY

fan drive

1шт.

13

A27903

WASHER

drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

18

A57457

RETAINER

crankshaft rear oil seal

1шт.

19

A62050

OIL SEAL

oil, rear (See Ref. 35)

1шт.

20

A32830

GASKET

retainer

1шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

22

92-6

LOCK WASHER,3/8"

6шт.

26

A137485

FLYWHEEL

ASSEMBLY - (With 16 mounting holes) (Engine serial no. 2522041 and after) (Replaces A65559), Includes: Ref. 27

1шт.

27

A27920

GEAR

ring (137 teeth)

1шт.

28

A60692

FLYWHEEL

ASSEMBLY - (With 8 mounting holes) (Order A137485) (Prior to engine serial no. 2522041), Includes: Ref. 29

1шт.

29

A27920

GEAR

ring (137 teeth)

1шт.

30

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

5/8 x 1-1/2" NF hex

6шт.

35

A43194

KIT

WEAR SEAL - oil, crankshaft rear (Includes tool), Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, wear kit

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE - wear seal kit

1шт.

40

A154684

SLEEVE

WEAR SEAL KIT - oil, crankshaft front, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE - wear seal kit

1шт.

42

NSS

NOT SOLD SEPARAT

TOOL - installation, wear seal kit

1шт.
