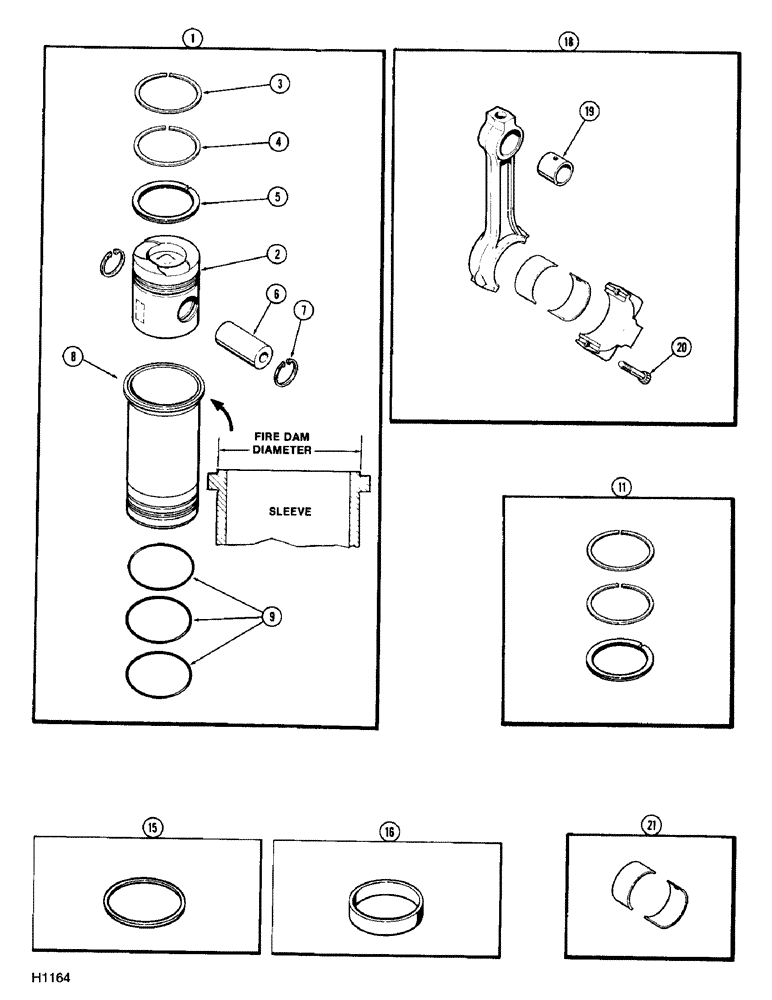

Запчасти Case 780 (062) - PISTONS & SLEEVES, W/ 5.189" TO 5.194" FIRE DAM DIA SLEEVE 336BD NATURAL ASPIRATED ENG (02) - ENGINE

1

A156930

SLEEVE CYLINDER

PISTON ASSEMBLY - engine (Set of 2), Includes: Ref. 2 - 9

2шт.

2

A65123

PISTON

cylinder, 4-5/8" bore (107.47 mm)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order Ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order Ref. 11)

2шт.

6

A58584

PIN,45.71mm OD x 98.17mm L

piston

2шт.

7

A44249

SNAP RING,1.812", Int, #181

piston pin

4шт.

8

A153638

SLEEVE CYLINDER

(3 groove)

2шт.

NSS

NOT SOLD SEPARAT

SLEEVE - cylinder (2 groove) Order 3 groove sleeve A153638

2шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

sleeve

6шт.

11

A42988

RING

KIT - piston re-ring (Set of 1)

4шт.

15

A148553

SHIM

sleeve, 0.010" (0.254 mm) (Repairs only)

1шт.

15

A148554

SHIM

sleeve, 0.005" (0.127 mm) (Repairs only)

1шт.

16

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

sleeve (Repairs only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not shown)

1шт.

18

A65032

ROD

ASSEMBLY - connecting, Includes: Ref. 19 and 20

4шт.

18

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

18

AC65032

CORE-ROD CONNECTING

Return Part Number

4шт.

19

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

piston pin, connecting rod

1шт.

20

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

cap, connecting rod

2шт.

21

A41758

BEARING LINER

INSERT - rod (Set of 2) (Standard), connecting

4шт.

21

A41899

BEARING LINER

INSERT - rod bearing (Set of 2) 0.002" undersize (0.0508 mm), connecting

4шт.

21

A41900

BEARING LINER

INSERT - rod bearing (Set of 2) 0.010" undersize (0.254 mm), connecting

4шт.

21

A41901

BEARING LINER

INSERT - rod bearing (Set of 2) 0.020" undersize (0.508 mm), connecting

4шт.

21

A41902

BEARING LINER

INSERT - rod bearing (Set of 2) 0.030" undersize (0.762 mm), connecting

4шт.
