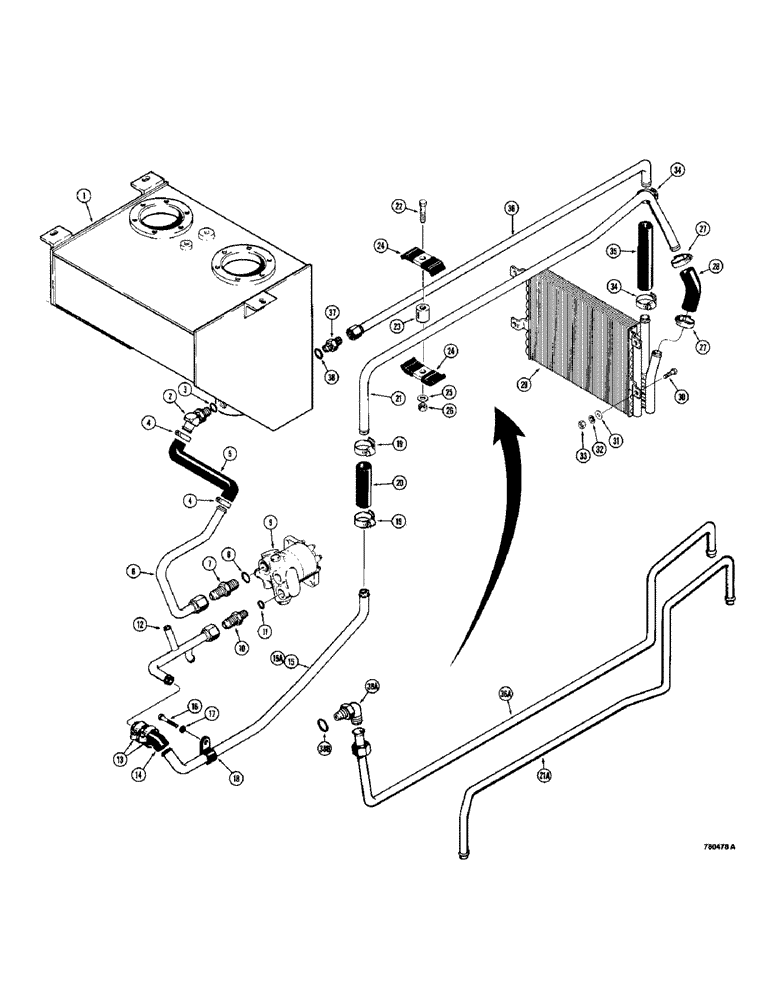

Запчасти Case 780 (148) - POWER STEERING COOLER CIRCUIT, USED ON TRACTOR SN. 5500550 THRU 5502545 (05) - STEERING

1

L18650

TANK - hydraulic reservoir, see Figure 546 for filters and related parts

1шт.

2

R22429

FITTING

- hose, adjustable, 45 degrees, Includes: Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

4

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

5

L45481

- low pressure, hydraulic reservoir to power steering pump

1шт.

6

L19293

TUBE - hydraulic reservoir to power steering pump 0.75" OD

1шт.

7

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight, Incl. Ref. 8

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

9

L18975

PUMP, HYDRAULIC

PUMP - power steering, parts list Figure 152

1шт.

10

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - male, straight, Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

12

D55483

TUBE - special, at power steering pump

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

14

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

Low Pressure, Pump to Oil Cooler 19.00 mm ID x 76.20 mm, SAE 100R3

1шт.

15

D55482

TUBE

- to oil cooler, rear, used on tractors with model 300 air compressor

1шт.

15a

D86816

TUBE

- to oil cooler, rear, used on tractors with model 400 air compressor

1шт.

16

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- tube

1шт.

19

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

20

R14170

HOSE

- intermediate to front cooler tube

1шт.

21

D56207

TUBE - to oil cooler, front, used on tractors woth model 300 air compressor

1шт.

21a

D80984

TUBE - to oil cooler, front, used on tractors with model 400 air compressor

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" NC hex (Grade 5)

2шт.

23

D76212

BUSHING

SPACER - tube clamp

2-3шт.

24

D40236

CLAMP

- tube

4-6шт.

25

195-25

WASHER,3/8"

- flat, 3/8"

2-3шт.

26

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self lock, 3/8" - 16 NC

2-3шт.

27

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

28

R14170

HOSE

- low pressure, front, Serial Range: tube-cooler

1шт.

29

L43582

COOLER

- hydraulic oil

1шт.

30

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

- hex, 5/16" - 24 NF x 5/8"

4шт.

31

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

32

92-5

LOCK WASHER,5/16"

4шт.

33

131-607

NUT

- Tinnerman, 5/16" - 18 NC

4шт.

34

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

35

D95231

LARGE HOSE

HOSE - low pressure, oil, Serial Range: cooler-reservoir

1шт.

36

D56206

TUBE - to reservoir, used on tractors with model 300 air compressor

1шт.

36a

D80983

TUBE - to reservoir, used on tractors with model 400 air compressor

1шт.

37

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight, Incl. Ref. 38

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

38a

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- male, if used, Incl. Ref. 38B 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

38b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.
