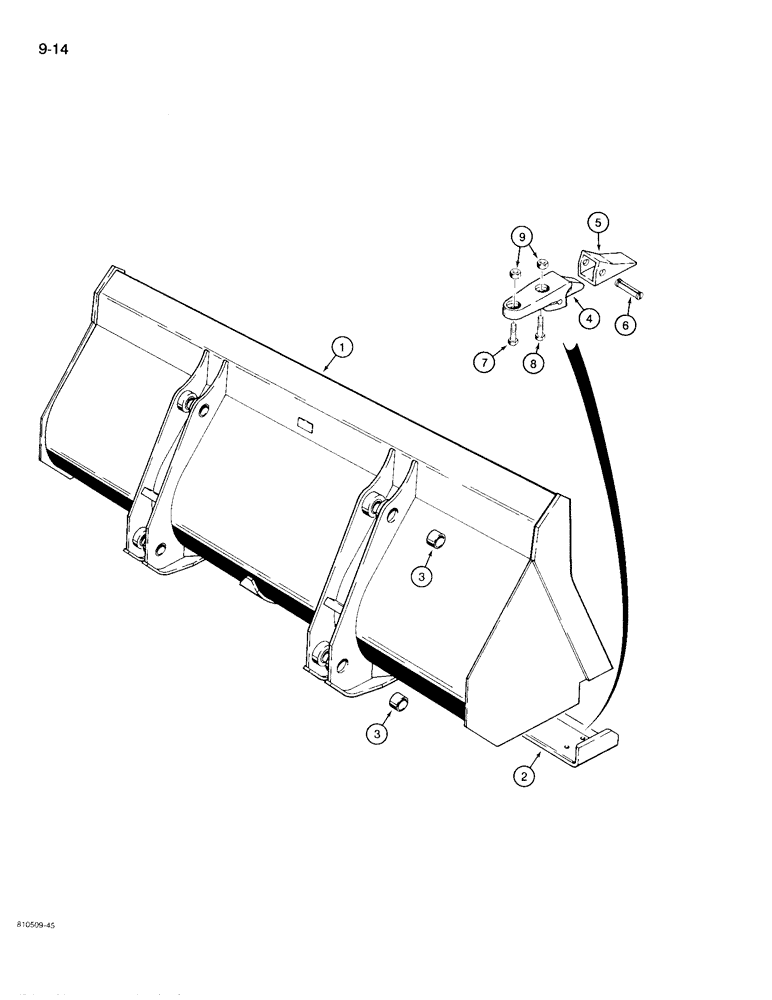

Запчасти Case 780D (9-014) - LOADER BUCKETS, 1-3/4 CUBIC YARD (1.3 CUBIC METER) LOADER (09) - CHASSIS/ATTACHMENTS

L104652

BUCKET ASSEMBLY - 96" (2438 mm) wide, machinery item, order from Machinery Price List, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L101620

EDGE, CUTTING

- front

1шт.

3

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- bucket ear

8шт.

D50780

TOOTH

ASSEMBLY - bucket, Includes: Ref. 4 - 6, teeth

8шт.

4

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket

1шт.

5

D51750

BUCKET TOOTH POINT

POINT - tooth, bucket

1шт.

6

D39094

BUCKET TOOTH KEY

PIN - flex, point, bucket teeth

1шт.

7

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8, bucket teeth

8шт.

8

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex head, 5/8" - 11 NC x 2-1/2", grade 8, bucket teeth

8шт.

9

129-183

NUT,5/8"-11, G8

Bucket teeth 5/8"-11, G8

16шт.
