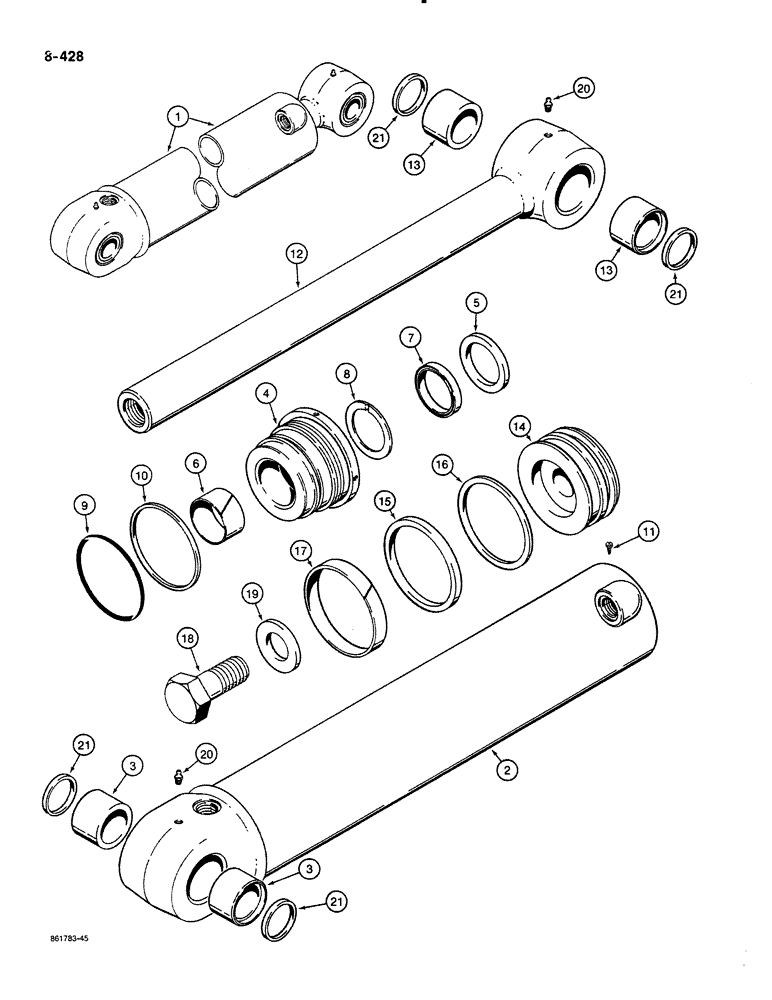

Запчасти Case 580K (08-428) - BACKHOE DIPPER CYLINDER (08) - HYDRAULICS

1

G110560

CYLINDER BLOCK

CYLINDER ASSEMBLY, 5" (127 mm) ID x 22-15/16" (583 mm) stroke, dipper, no longer available, for service order P/N G110683 cylinder, Includes: Ref. 2 thru 21

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

1

G110683

CYLINDER

ASSEMBLY, 5" (127 mm) ID x 22-15/16" (583 mm) stroke, dipper, Includes: Ref. 2 thru 21

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

1

110294A1R

REMAN-HYD CYLINDER

Reman for new P/N G110683

1шт.

1

110294A1C

CORE-HYD CYLINDER

Reutrn Number

1шт.

2

G110561

TUBE,126.87 mm ID x 821.4 mm L

P/N G110560 cylinder, Includes: Ref. 3

1шт.

2

G110684

TUBE

P/N G110683 cylinder, Includes: Ref. 3

1шт.

3

G108417

BUSHING,50.19mm ID x 66.68mm OD x 46mm L

P/N G110561 or P/N G110684 tube

2шт.

G110567

GLAND

ASSEMBLY, P/N G110560 cylinder, no longer available, for service order P/N G110687 gland, Includes: Ref. 4 thru 10

1шт.

G110687

GLAND

ASSEMBLY, P/N G110683 cylinder, Includes: Ref. 4 thru 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

G108713

WIPER,63.45mm ID x 82.58mm OD x 10.03mm Thk

piston rod

1шт.

6

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

center

1шт.

Part of Seal Kit P/N G110582

1шт.

7

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit P/N G110582

1шт.

8

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G110582

1шт.

9

39738

O-RING,4.609" ID x 0.139" Width

gland

1шт.

Part of Seal Kit P/N G110582

1шт.

10

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit P/N G110582

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self-tapping, No. 8-32 NC x 3/8", plated

1шт.

12

G110563

ROD ASSY.

ROD ASSEMBLY piston, 2-1/2" (64 mm) diameter, P/N G110560 cylinder, Includes: Ref. 13

1шт.

12

1978058C1

PISTON ROD

ROD ASSEMBLY piston, 2-1/2" (64 mm) diameter, P/N G110683 cylinder, Includes: Ref. 13

1шт.

13

G108417

BUSHING,50.19mm ID x 66.68mm OD x 46mm L

rod

2шт.

14

G110569

PISTON,126.29mm Bore, 63.58mm Rod, 57.2mm W

cylinder

1шт.

15

G102091

SEAL,128.52mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit P/N G110582

1шт.

16

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

backup, piston seal

1шт.

Part of Seal Kit P/N G110582

1шт.

17

G102090

RING,127mm OD, Ext

wear, piston

1шт.

Part of Seal Kit P/N G110582

1шт.

18

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

hex head, 1-1/2"-12 NF x 3-1/2", grade 8

1шт.

19

G104990

WASHER

flat, 1-1/2", hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

21

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

rod and tube eyes

4шт.

G110582

KIT

seal, Includes: Ref. 6 thru 10 and 15 thru 17

1шт.
