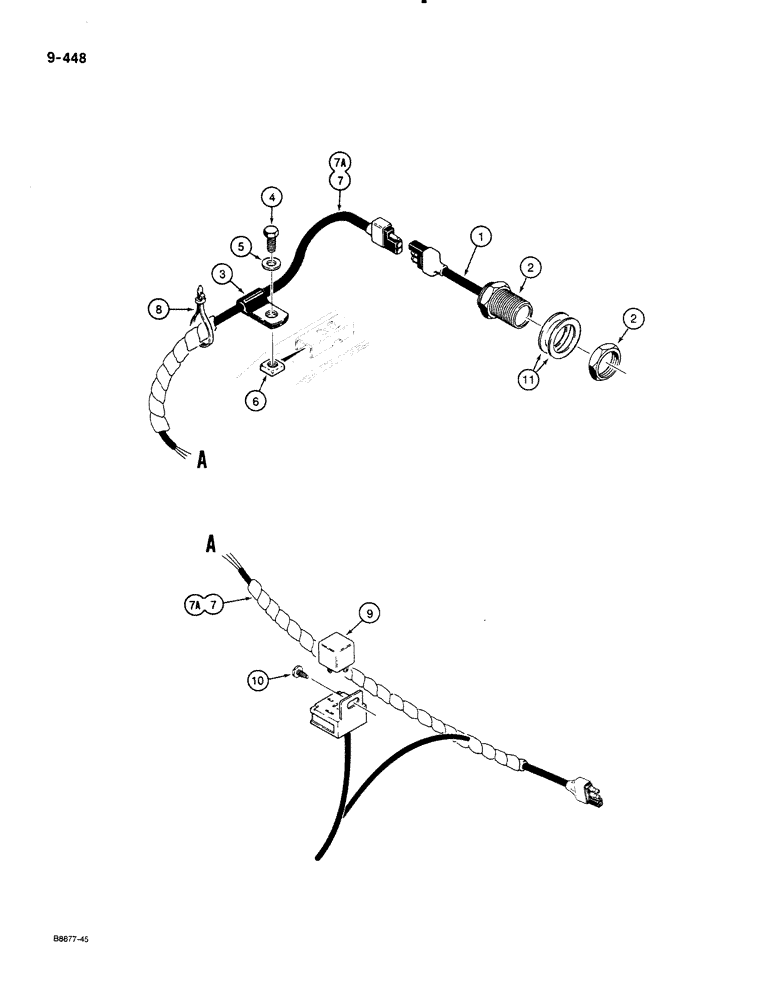

Запчасти Case 580K (09-448) - LOADER RETURN-TO-DIG CONTROL (09) - CHASSIS/ATTACHMENTS

1

D136898

SWITCH

proximity, return-to-dig, includes nuts, Includes: Ref. 2

1шт.

2

N14113

NUT

hex, special, return-to-dig switch

2шт.

3

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

P-type, mounts to cage on top of left-hand loader lift arm

1шт.

4

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

5

195-103

WASHER,5/16"

flat, , plated 5/16"

1шт.

6

25-225

SQUARE NUT,Sq, 5/16"-24

square, 5/16"-18 NC

1шт.

7

D136913

HARNESS

return-to-dig, attaches to main harness, used on models where relay mounts on chassis channel, if used

1шт.

7a

D141120

HARNESS

return-to-dig, attaches to main harness, used on models where relay mounts on chassis loader upright, if used

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15", nylon

5шт.

9

D128310

RELAY

30 amperes, return-to-dig harness

1шт.

40 amperes is marked on the relay. This is the resistance rating. The inductive rating is 30 amperes. We use this inductive rating in our literature.

1шт.

10

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW hex washer head, slotted, self-tapping, No. 10-24 x 3/8", plated, attaches harness socket to relay mounting plate

1шт.

11

195-2185

WASHER,1 17/64" x 1 7/8" x 048"

flat, 1-1/8", plated

2шт.
