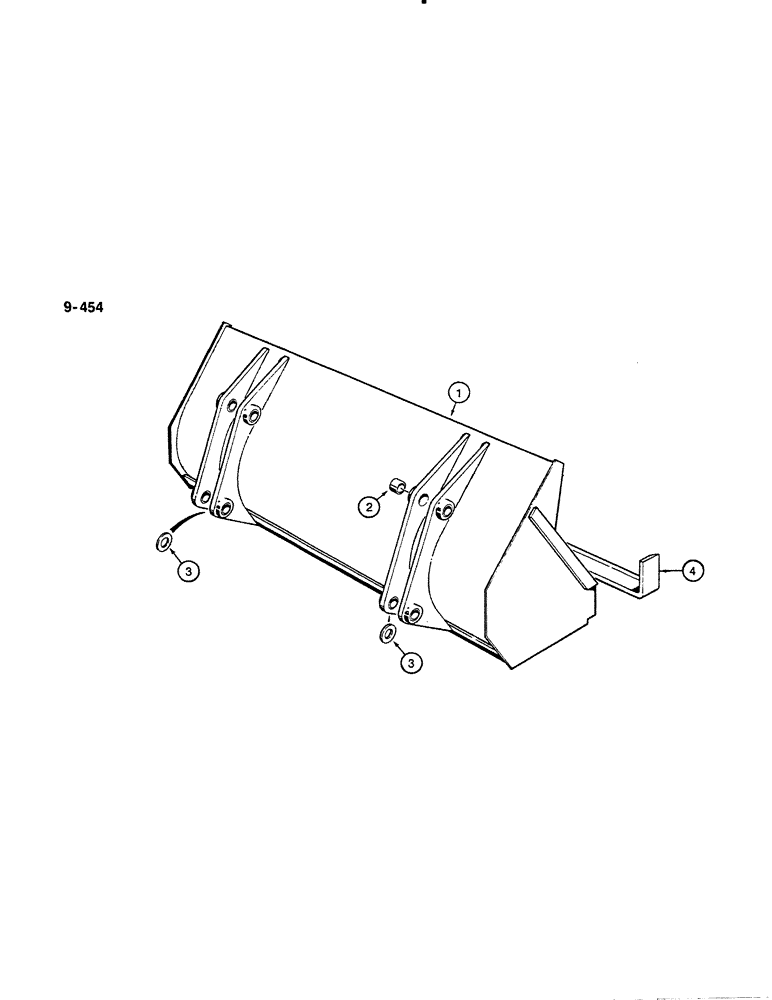

Запчасти Case 580K (09-454) - LOADER BUCKET, SHORT LIP (09) - CHASSIS/ATTACHMENTS

D134142

BUCKET

ASSEMBLY loader, 90" (2285 mm) wide, without teeth, machinery item, order from Machinery Price List, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET loader

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

bucket ear

8шт.

3

D135602

WASHER

1-5/8" ID x 2-3/8" OD, hardened, special, used as a spacer, welded to inner ear at lower pin hole only

2шт.

4

D65287

EDGE, CUTTING

EDGE cutting, front, 90" (2285 mm) bucket

1шт.

D147323

EDGE

cutting, bolt-on, 90", with 15 holes to accept 3/4" plow bolts, purchase option for bucket

1шт.

118-503

PLOW BOLT,3/4"-10 x 2 1/4", G8

BOLT, hardware for bolt-on cutting edge P/N D147323

1шт.

429-1012

NUT,3/4"-10, G8

hardware for bolt-on cutting edge P/N D147323

1шт.
