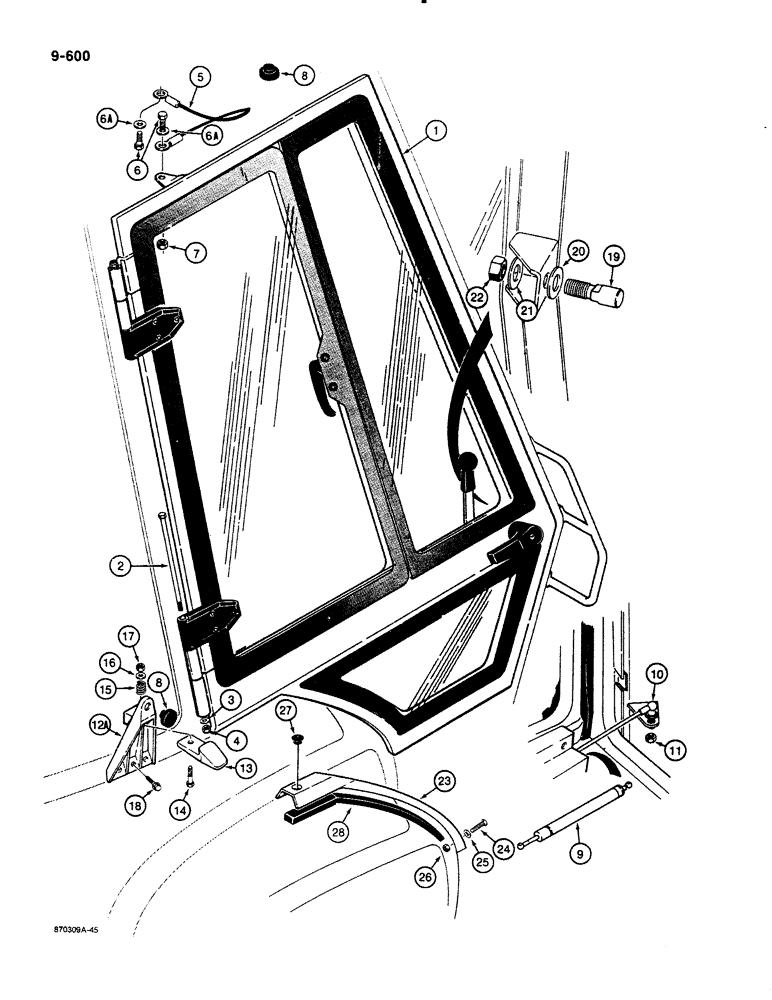

Запчасти Case 580K (09-600) - LEFT-HAND AND RIGHT-HAND CAB DOOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

DOOR cab, see Figures 09-592 through 09-598

1шт.

2

113-529

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

LH and RH doors to cab frame Hex, 3/8"-16 x 9 1/2", G5

4шт.

3

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

thrust, plastic, hinge

4шт.

4

131-203

LOCK NUT,3/8"-16, GB, LH

NUT hex, self-locking, 3/8" - 16 NC, plated

4шт.

5

R53560

CABLE

door, upper

2шт.

6

R53633

BOLT

SHOULDER BOLT special, cable retaining

4шт.

6a

195-104

WASHER,3/8"

flat, , plated 3/8"

4шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self-locking, 5/16" - 18 NC, plated, door shoulder bolt

2шт.

8

L60224

BUMPER

rubber, cab door frame and window latch

4шт.

9

REF

INSTRUCTION

CYLINDER left-hand and right-hand doors, see Figures 09-596 and 09-598

2шт.

10

1304648C1

STUD

ball, cylinder

2шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self-locking, 5/16" - 18 NC, plated

2шт.

12

R53957

SUPPORT

BRACKET left-hand cab door window retaining, mounts to frame, not shown

1шт.

12a

R53956

SUPPORT

BRACKET right-hand cab door window retaining, Serial Range: mounts-frame

1шт.

13

R53958

LATCH

door window to cab frame

2шт.

Ref. 13, P/N R53958 subs to P/N 230588A1.

1шт.

14

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Latch to bracket Hex, 1/4"-20 x 1 1/4", G5

2шт.

15

D36669

SPRING

compression, left-hand and right-hand window latch release

2шт.

16

195-102

WASHER,1/4"

flat, , plated 1/4"

2шт.

17

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

18

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Bracket to frame Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

6шт.

19

R52735

LATCH

STRIKER door latch

2шт.

20

F44748

SPRING WASHER

BELLEVILLE SPRING washer

2шт.

21

195-2029

WASHER,7/16" x 1 1/4" x .134"

flat, 3/8" bolt size, 7/16" ID x 1-1/4" OD x 1/8" thick, plated

2шт.

22

131-1129

LOCK NUT,7/16"-14, GA

NUT hex, self-locking, 7/16" - 14 NC, plated

2шт.

23

R54972

RESTRICTOR

BRACKET plastic, right-hand fender sill

1шт.

23a

R54971

RESTRICTOR

BRACKET plastic, left-hand fender sill, not shown

1шт.

24

182-588

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

MACHINE SCREW pan Phillips head, 1/4" - 20 NC x 1/2", fender bracket

8шт.

25

195-2208

WASHER,.266" x 13/16" x .079"

flat, 1/4", black Teflon

8шт.

26

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

8шт.

27

353-405

PLUG,Dome, .562" hole, Nylon

nylon, 9/16", fender bracket

2шт.

28

1977625C1

DOOR SEAL

SEAL foam, 711 mm long, door sill, cut to required length from 198530C2 bulk seal, see below

1-2шт.

Ref. 28, P/N 1977625C1 seal, and P/N 198530C2, 50' roll of bulk seal, Both replaced by P/N 1281436C1, 100' roll of bulk seal, sold by ft.- cut to length

1шт.

198530C2

SEAL foam, bulk, 50 foot, 1524 cm, long

1шт.
