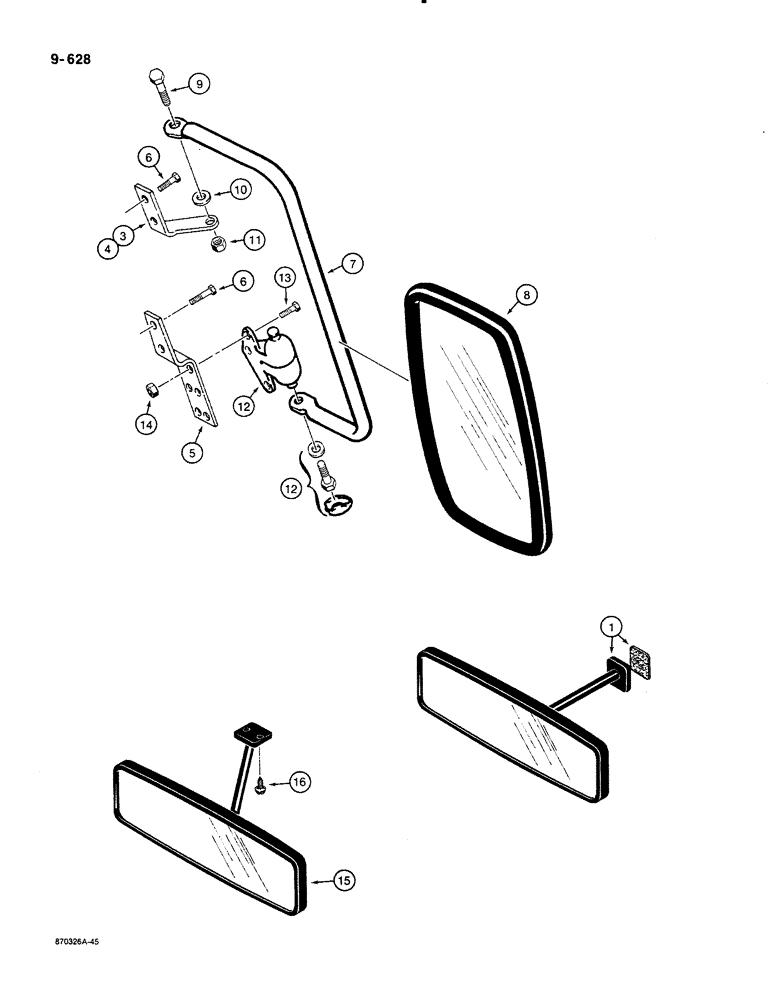

Запчасти Case 580K (09-628) - REAR VIEW MIRROR, ROPS CAB MODELS - INTERIOR AND EXTERIOR AND ROPS CANOPY MODELS - INTERIOR (09) - CHASSIS/ATTACHMENTS

1

R54689

MIRROR

rear view, interior, includes spacer, rops cab models

1шт.

3

D142084

BRACKET

mirror, right-hand upper, rops cab models - exterior

1шт.

4

D142085

BRACKET

mirror, left-hand upper, not shown, rops cab models - exterior

1шт.

5

D142083

BRACKET

mirror, lower, rops cab models - exterior

2шт.

6

187-1310

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW hex head, self-tapping, 1/4" - 20 NC x 3/4", plated, rops cab models - exterior

8шт.

7

D142086

TUBE

SUPPORT mirror, rops cab models - exterior

2шт.

8

R54682

MIRROR

rear view, exterior, rops cab models

2шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

ROPS cab models - exterior Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

10

A167037

WASHER

nylon, rops cab models - exterior

2шт.

11

131-665

LOCK NUT,5/16"-18, GB

NUT hex, self-locking, 5/16" - 18 NC, plated, rops cab models - exterior

2шт.

12

D142144

HINGE

KNUCKLE support pivot, includes hardware, rops cab models - exterior

2шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

ROPS cab models - exterior Hex, 1/4"-20 x 3/4", G5, Full Thd

6шт.

14

86625061

NUT,1/4"-20, GB

NUT hex, self-locking, 1/4" - 20 NC, plated, rops cab models - exterior

6шт.

15

D138952

MIRROR

rear view, interior, rops canopy models

1шт.

16

187-576

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW hex washer head, slotted, self-tapping, No. 10 - 24 x 3/8", plated, rops canopy models - interior

2шт.
