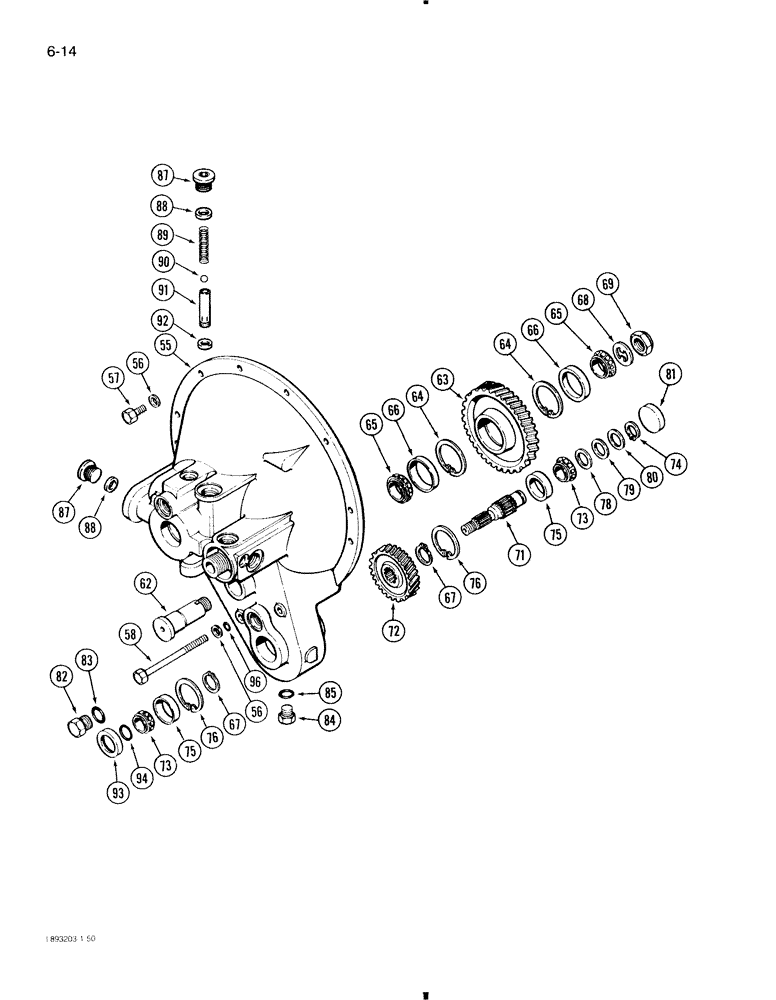

Запчасти Case 580K (6-014) - TORQUE CONVERTER HOUSING, PUMP AND OUTPUT SHAFT, WITH PTO (06) - POWER TRAIN

55

A190081

HOUSING

torque converter

1шт.

56

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

12шт.

57

826-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

hex, 10 mm - 1.5 x 30 mm

10шт.

58

814-10160

BOLT,Hex, M10 x 1.5 x 160mm, Cl 8.8

hex, 10 mm - 1.5 x 160 mm

2шт.

62

A190112

SHAFT

PTO idler

1шт.

63

A190021

GEAR WHEEL

GEAR PTO idler

1шт.

64

216389R1

SNAP RING,2.312", Int, #231

Ring, Snap, , idler gear to brgs 2.312", Int, #231

2шт.

65

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE tapered roller bearing, inner input shaft

2шт.

66

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP tapered roller bearing, inner input shaft

2шт.

67

1277307C1

RING

snap, output, Serial Range: gear-shaft

2шт.

68

A175799

WASHER

PTO idler shaft

1шт.

69

A175798

NUT

adjusting

1шт.

71

A190054

GEAR WHEEL

GEAR PTO idler

1шт.

72

A190022

GEAR WHEEL

GEAR PTO output

1шт.

73

D29266

ROLLER BEARING,1" ID x 0.58"

CONE bearing, PTO output shaft

2шт.

74

A34428

SNAP RING,#98, Ext

Ring, Snap, , PTO output shaft #98, Ext

1шт.

75

D29267

BEARING CUP,1.98" OD x 0.42"

CUP bearing, PTO output shaft

2шт.

76

D28436

SNAP RING,2", Int, #200

Ring, Snap, , PTO output shaft 2", Int, #200

2шт.

78

A190179

SHIM

PTO output shaft front bearing, 0.1 mm

1шт.

79

A190180

SHIM

PTO output shaft front bearing, 0.15 mm

1шт.

80

A190181

SHIM

PTO output shaft front bearing, 1.0 mm

1шт.

81

41-1036

PLUG,Cup, 2 1/4"

core hole, 2-1/4", PTO output shaft opening

1шт.

82

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, 3/4 tube, Includes: Ref. 83 Hex Hd, 1 1/16"-12 ORB

1шт.

83

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 ID x 7/8"

1шт.

84

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 85 Hex Hd, 9/16"-18 ORB

1шт.

87

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 88 Hex Soc, 1 1/16"-12 ORB

2шт.

88

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 ID x 7/8"

1шт.

89

A190345

SPRING

pump relief valve

1шт.

90

211-102

BALL,1/2" Dia

1/2" OD

1шт.

91

A183336

VALVE

CARTRIDGE pump relief valve

1шт.

92

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

spring guide, 11/16" ID

1шт.

93

A175651

OIL SEAL,38.1mm ID x 52.44mm OD x 9.91mm Thk

oil

1шт.

94

A159665

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

yoke sealing, 55/64 x 1-9/64 x 9/64"

1шт.

95

A31078

SNAP RING,2.062", Int, #206

Retaining, 2-7/32" OD 2.062", Int, #206

1шт.

96

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

2шт.

85

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
