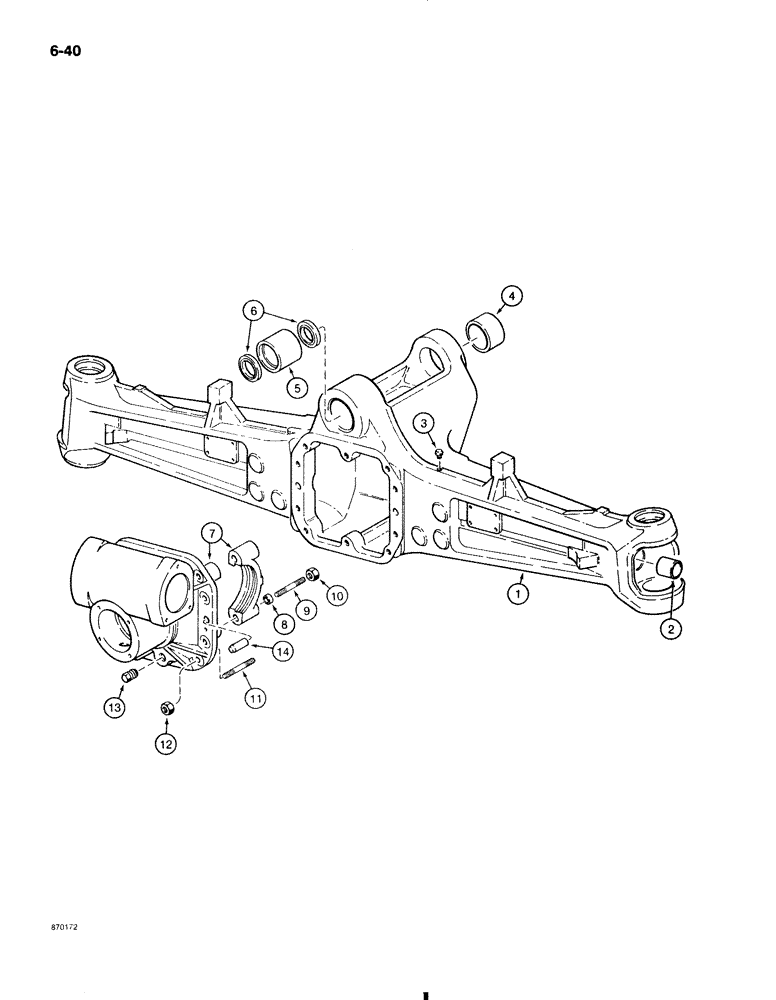

Запчасти Case 580K (6-040) - FRONT DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

D139510

CENTER AXLE

AXLE ASSEMBLY, front drive, Carraro No. 123799, see Figures 6-040 - 6-052, Includes: Ref. 1 - 14

1шт.

1

N14370

HOUSING

front axle

1шт.

2

K395019

BUSHING

housing

2шт.

3

K965231

BREATHER

axle housing

1шт.

4

N14369

BUSHING,50.23mm ID x 66.68mm OD x 40mm L

front pivot

1шт.

5

N14368

BUSHING,50.14mm ID x 66.68mm OD x 75mm L

rear pivot

1шт.

6

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

rear bushing

2шт.

N14371

AXLE CARRIER

CARRIER ASSEMBLY, differential, for 3-1/32", 77 mm OD steering cylinder, Includes: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

CARRIER differential

1шт.

8

K965259

RING

BUSHING centering, carrier

4шт.

9

K261836

STUD

carrier

4шт.

10

K965250

NUT

hex, self-locking, 14 mm - 1.5, special

4шт.

11

K261839

STUD

, Serial Range: carrier-housing

10шт.

12

905834R1

THIN NUT,M12 x 1.25, Thin

NUT hex, self-locking, special, 12 mm - 1.25

10шт.

13

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

14

K965252

PIN

dowel, Serial Range: housing-carrier

2шт.

M20704

ADHESIVE

SEALANT, differential carrier to axle housing, 3 oz, 89 ml of sealant in a tube, not shown

1шт.
