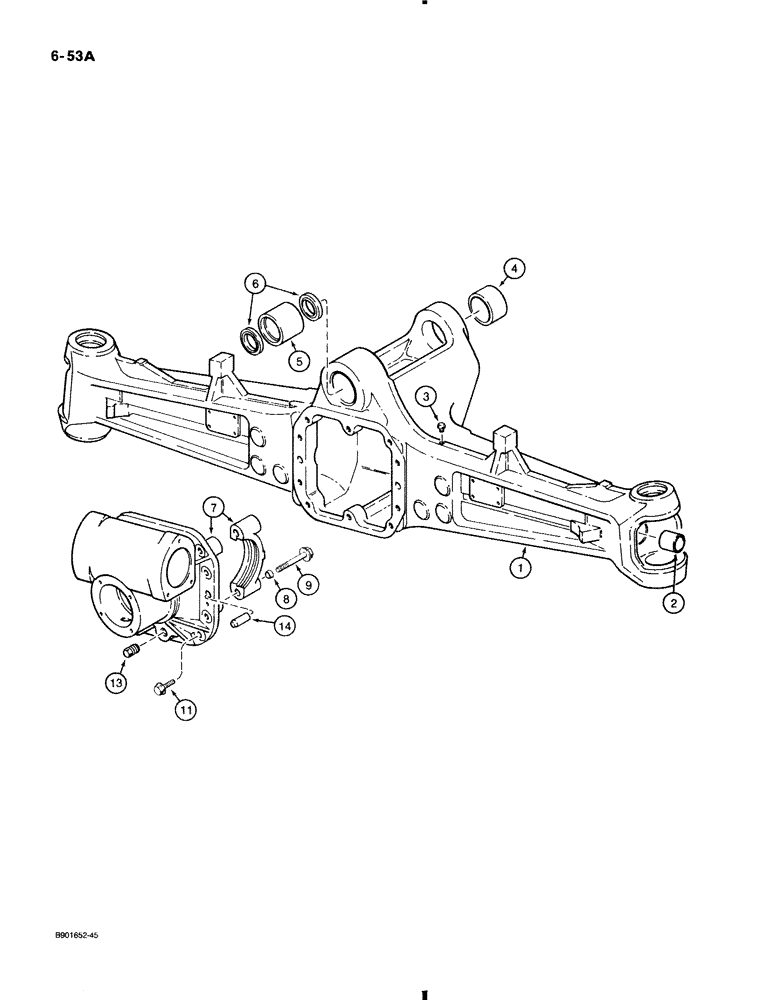

Запчасти Case 580K (6-053A) - FRONT DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

D149174

AXLE

ASSEMBLY, front drive, Carraro No. 126914, see Figures 6-053A - 6-053M, Includes: Ref. 1 - 14

1шт.

1

N14370

HOUSING

front axle

1шт.

2

K395019

BUSHING

housing

2шт.

3

K965231

BREATHER

axle housing

1шт.

4

N14369

BUSHING,50.23mm ID x 66.68mm OD x 40mm L

front pivot

1шт.

5

N14368

BUSHING,50.14mm ID x 66.68mm OD x 75mm L

rear pivot

1шт.

6

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

rear bushing

2шт.

N14371

AXLE CARRIER

CARRIER ASSEMBLY, differential, for 3-1/32", 77 mm OD steering cylinder, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

CARRIER differential

1шт.

8

K965259

RING

BUSHING centering, carrier

4шт.

9

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT, , Carrier Hex Flg, M14 x 75, 12.9

4шт.

11

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT, , Carrier to housing Hex Flg, M12 x 33, 12.9

10шт.

13

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

14

K965252

PIN

dowel, Serial Range: housing-carrier

2шт.

M20704

ADHESIVE

SEALANT, differential carrier to axle housing, 3 oz, 89 ml of sealant in a tube, not shown

1шт.
