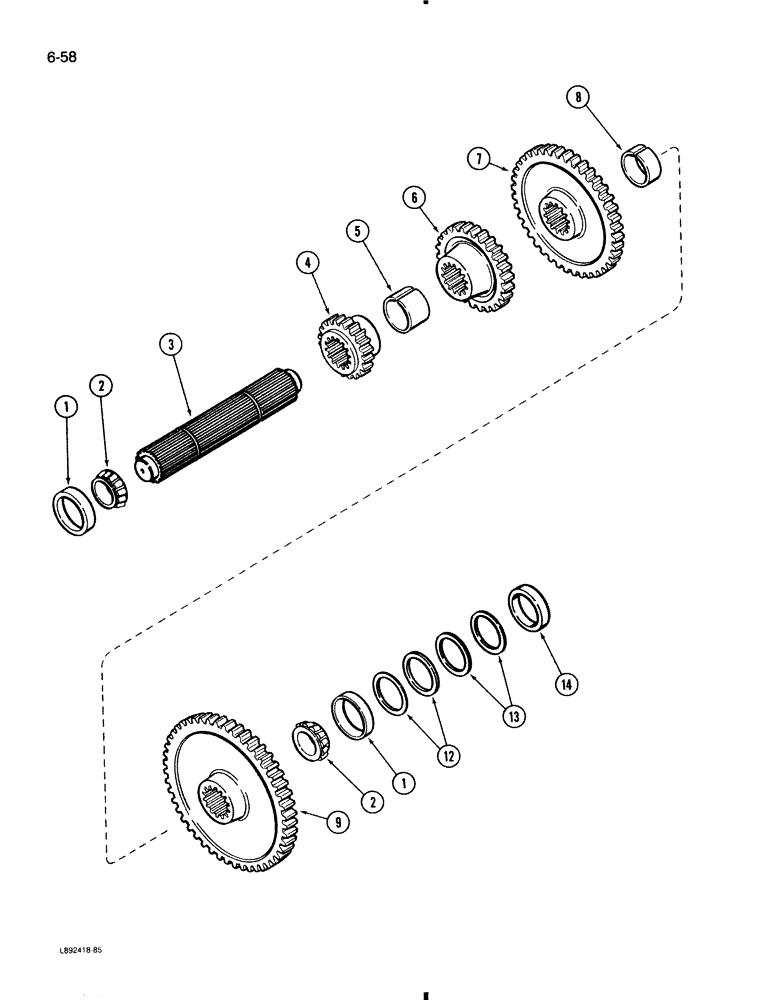

Запчасти Case 580K (6-058) - TRANSAXLE INTERMEDIATE SHAFT (06) - POWER TRAIN

1

G57451

BEARING, CUP

CUP bearing

2шт.

2

G57452

ROLLER BEARING

CONE bearing

2шт.

3

A183911

SHAFT

intermediate, transaxle

1шт.

4

A190078

PINION

GEAR drive, first, 25-tooth

1шт.

5

A186385

SPACER

first and second gear

1шт.

6

A190087

GEAR WHEEL

GEAR drive, second, 35-tooth

1шт.

7

A190086

PINION

GEAR drive, third, 53-tooth

1шт.

8

A186384

SPACER

third and fourth gear

1шт.

9

A190085

PINION

GEAR drive, fourth, 97-tooth

1шт.

12

A175453

SHIM,0.178mm Thk

Bearing adjust (0.007") 0.178mm Thk

1шт.

Ref. 12 on Figure 6-060, 64-tooth pinion gear A190077 replaces 52-tooth gear A175981. Ref. 4 on Figure 6-058, 25-tooth first gear A190078 replaces 17-tooth A183912. Ref. 26 on Figure 6-018, reverse gear needs to be replaced with A190079 (subs to 1995220C1) also. These must be replaced as a set due to number of teeth and helix angle.

1шт.

12

A175454

SHIM,54mm ID x 64.67mm OD x 0.5mm Thk

Bearing adjust (0.020") 0.508mm Thk

1шт.

13

K915558

SHIM,53.98mm ID x 64.29mm OD x 0.08mm Thk

Bearing adjust (0.003") 0.076mm Thk

1шт.

13

K915559

SHIM,53.98mm ID x 64.29mm OD x 0.13mm Thk

Bearing adjust 0.127mm Thk

1шт.

14

A175689

SPACER

intermediate shaft

1шт.
