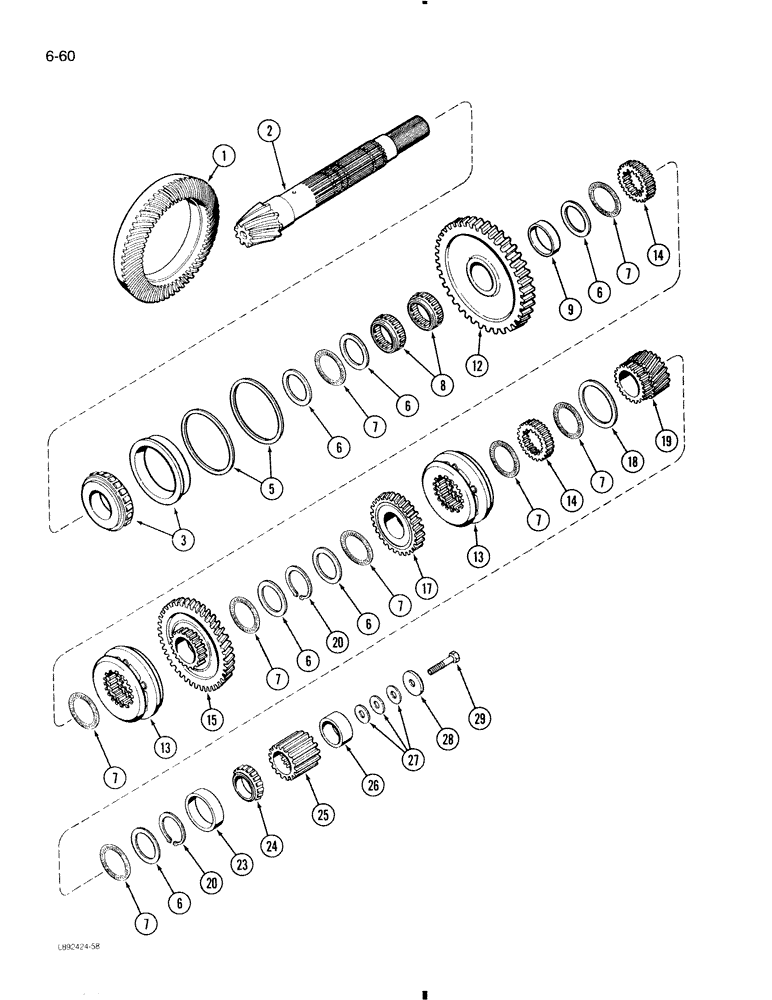

Запчасти Case 580K (6-060) - TRANSAXLE COUNTERSHAFT (06) - POWER TRAIN

REF

INSTRUCTION

PINION AND RING GEAR matched set, see Figure 6-62, Includes Ref. 1-2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR ring

1шт.

2

NSS

NOT SOLD SEPARAT

PINION bevel

1шт.

3

A190455

BEARING ASSY,63.5mm ID x 138.25mm OD x 36.54mm W

BEARING ASSEMBLY, cup and cone, Replaces: A188018 and A188019

1шт.

There were a few machines built with different ring and pinion which took a slightly larger bearing. See quality comments on part nbr A190010 pinion and ring gear set.

1шт.

5

A188020

SHIM,130.75mm ID x 139mm OD x 0.09mm Thk

Pinion adjust 0.08mm Thk

1шт.

5

A188021

SHIM,130.75mm ID x 139mm OD x 0.2mm Thk

Pinion adjust 0.18mm Thk

1шт.

5

A188022

SHIM,130.75mm ID x 139mm OD x 0.28mm Thk

Pinion adjust 0.25mm Thk

1шт.

5

A188023

SHIM,130.75mm ID x 139mm OD x 0.55mm Thk

Pinion adjust 0.51mm Thk

1шт.

6

A150067

WASHER, THRUST,57.33mm ID x 75.7mm OD x 3.16mm Thk

WASHER thrust, needle bearing

6шт.

7

K620185

THRUST BEARING

BEARING needle, thrust

8шт.

8

A175430

NEEDLE BEARING,66.703 mm ID x 57.150 mm OD x 25.4 mm

BEARING needle, radial

2шт.

9

A175708

SPACER

bearing

1шт.

12

A190077

PINION

GEAR driven, first, 64 tooth

1шт.

Ref. 12 on Figure 6-060, 64-tooth pinion gear A190077 replaces 52-tooth gear A175981. Ref. 4 on Figure 6-058, 25-tooth first gear A190078 replaces 17-tooth A183912. Ref. 26 on Figure 6-018, reverse gear needs to be replaced with A190079 (subs to 1995220C1) also. These must be replaced as a set due to number of teeth and helix angle.

1шт.

13

A188592

SYNCHRONIZER

ASSEMBLY, countershaft

2шт.

14

A188630

HUB

sliding collar, synchronizer

2шт.

15

A190088

PINION

GEAR driven, second, 54 tooth

1шт.

17

A186804

GEAR

driven, third, 36 tooth

1шт.

18

A183747

WASHER, THRUST,83.05mm ID x 105mm OD x 4.49mm Thk

WASHER fourth gear

1шт.

19

A186718

GEAR

driven, forth, 37 tooth

1шт.

20

F40807

SNAP RING,#225, Ext

Ring, Snap, #225, Ext

2шт.

23

A158823

ROLLER BEARING,84 mm OD x 17.551 mm

bearing

1шт.

24

A158824

ROLLER BEARING,50 mm ID x 22 mm

bearing

1шт.

25

A186646

GEAR

HUB parking brake

1шт.

26

REF

INSTRUCTION

SPACER pinion shaft, MFD tractor, see Figure 6-68

1шт.

26

REF

INSTRUCTION

SPACER pinion shaft, 2 Wheel drive, shown, see Figure 7-4

1шт.

27

A188344

SHIM,17.11mm ID x 41mm OD x 0.05mm Thk

Pinion shaft spacer 0.051mm Thk

1шт.

27

A188345

SHIM,17.11mm ID x 41mm OD x 0.13mm Thk

Pinion shaft spacer 0.127mm Thk

1шт.

27

A186917

SHIM,17.11mm ID x 41mm OD x 0.31mm Thk

Pinion shaft spacer 0.305mm Thk

1шт.

27

A186918

SHIM,17.11mm ID x 41mm OD x 1.02mm Thk

Pinion shaft spacer 1.016mm Thk

1шт.

28

A186924

WASHER, THRUST

WASHER pinion shaft, MFD tractor

1шт.

28

A188584

WASHER, THRUST

WASHER pinion shaft, 2 Wheel drive

1шт.

29

826-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

1шт.
