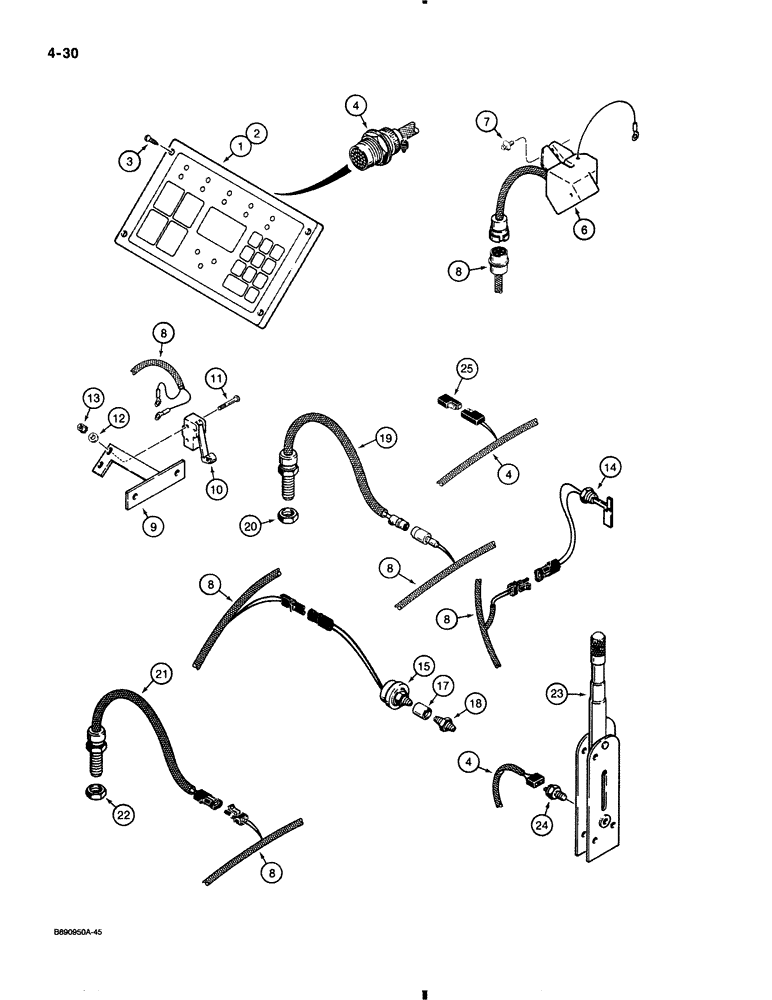

Запчасти Case 580K (4-030) - SPECIAL PARTS USED ON MODELS WITH ELECTRONIC INSTRUMENT CONTROL CENTER (04) - ELECTRICAL SYSTEMS

A187820

KIT

cluster, electronic instrument control center, Includes instructions, Includes: Ref. 1

1шт.

1

A187897

CLUSTER

electronic instrument control center, Includes: Ref. 2

1шт.

The cluster should include a sheet of instructions, 8-76020, for installing module and changing module ID number.

1шт.

2

28628R1

BULB,C2F, #73, 14V

GE trade No. 73

6шт.

3

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

machine, pan Phillips head, No. 10 NC x 3/4"

4шт.

4

D144463

HARNESS

side console, Serial Range: -JJG0020000

1шт.

4

D146871

HARNESS

side console, Start Serial: JJG0020000

1шт.

A187819

KIT security module, includes instructions, Includes: Ref. 6 and 7

1шт.

6

A187664

CONTROL BLOCK

MODULE security, mounts on engine fuel injection pump

1шт.

7

A187821

BOLT

security, special

2шт.

8

D144464

HARNESS

main, engine, Serial Range: -JJG0020000

1шт.

8

D146872

HARNESS

main, engine, Start Serial: JJG0020000

1шт.

9

D145002

BRACKET

switch mounting

1шт.

10

D137363

SWITCH

four wheel drive, mounts on four wheel drive control linkage

1шт.

11

182-530

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

machine, pan head slotted, No. 6 NC x 1-1/4"

2шт.

12

195-507

WASHER,#6

flat, plated, No. 6

2шт.

13

193-1003

NUT,Keps, w/LW,#6-32

ASSEMBLY, plated, with lockwasher, No. 6 - 32 NC

2шт.

14

A187668

SWITCH

oil level, mounts to right-hand chassis upright

1шт.

15

1983307C1

SWITCH

oil pressure, 10 psi, Replaces: standard oil pressure switch on engine block

1шт.

17

221-335

COUPLING,Pipe, 1/8" NPT

1/8 NP

1шт.

18

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

CONNECTOR straight, male

1шт.

19

A176438

GAUGE

SWITCH magnetic pickup, ground, attaches to engine harness, 11-13/16", 300 mm long, Replaces: existing plug in upper left hand flywheel housing on left hand side of engine, used with 825-11418, Ref. 20

1шт.

20

825-11418

NUT,M18 x 1.5, Cl 8

hex, magnetic pickup, 18 mm - 1.5

1шт.

21

A187584

SENSOR

SWITCH magnetic pickup, attaches to engine harness, engine speed sensor, 8-9/16", 217 mm long, Replaces: existing plug in top rear cover plate on transaxle housing

1шт.

22

129-168

JAM NUT,Jam, 3/4"-10, G5

hex, jam, plated, magnetic pickup, 3/4" - 16 NF

1шт.

23

D139909

LEVER ASSY.

LEVER hand brake, see Figure 7-012 for component parts

1шт.

24

D136514

SWITCH

parking brake

1шт.

25

L71879

DIODE ELEMENT,400V, 3A

DIODE used with D146032 side console harness

1шт.
