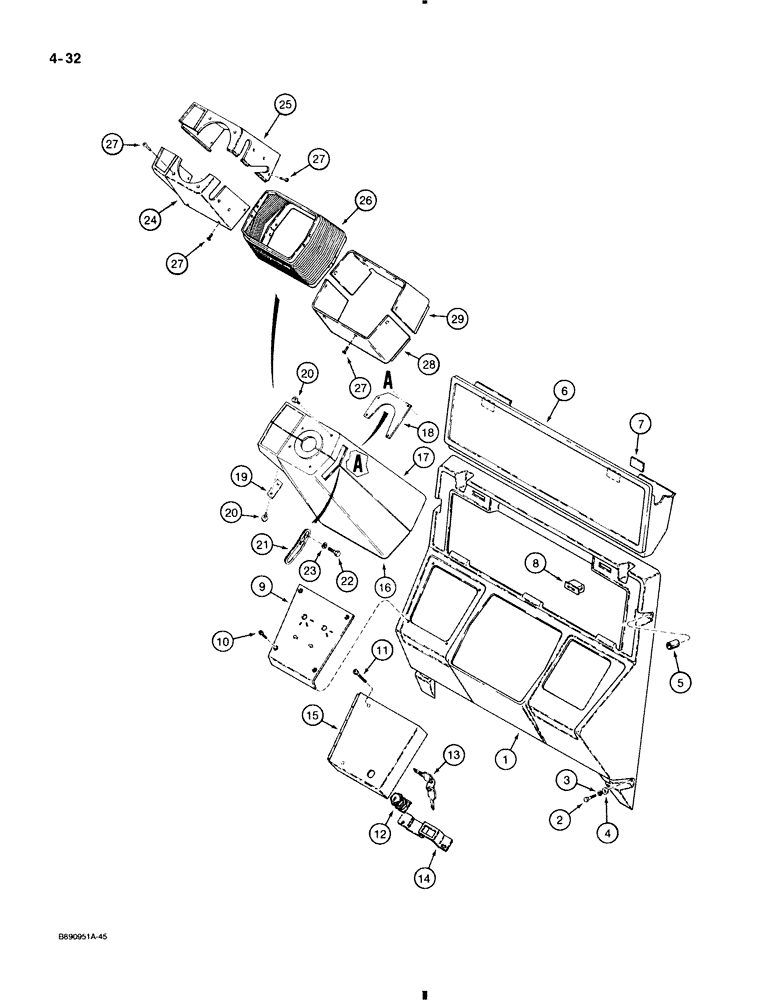

Запчасти Case 580K (4-032) - FRONT INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

1

D134389

BRACKET

PANEL instrument, front

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

4

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

6шт.

5

D35217

BUSHING

SPACER bolt, upper panel

2шт.

6

D134256

BOX

COMPARTMENT storage, operators manual, see Figure 9-188 for decal

1шт.

7

D135903

PLATE

steel, striker

2шт.

8

D127335

CATCH

Retainer, Magnetic, Storage compartment

2шт.

9

D146194

LARGE PLATE

PLATE switch mounting

1шт.

10

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips head, slotted, No. 10 NC x 1/2"

4шт.

11

182-597

SCREW,Cross Pan Hd, #10-24 x 7/8"

machine, pan head slotted, No. 10 - 24 NC x 7/8"

4шт.

12

D136738

LOCK

ASSEMBLY, Includes two keys, anti-vandalism cover, if used, Includes: Ref. 13

1шт.

Per print, D136738 lock assembly does not include keys.

1шт.

13

N14440

KEY

cover lock

2шт.

14

D140938

BRACKET

lower, switch plate, anti-vandalism, if used

1шт.

15

D140937

COVER

front instrument panel, anti-vandalism, if used, Includes: Ref. 16 - 20

1шт.

D143963

COVER

ASSEMBLY, two piece, steering column, see Figure 9-188 for arrow decal

1шт.

16

NSS

NOT SOLD SEPARAT

COVER steering column, rear

1шт.

17

NSS

NOT SOLD SEPARAT

COVER steering column, front

1шт.

18

D143710

LARGE PLATE

PLATE retaining, upper

1шт.

19

D143711

LARGE PLATE

PLATE retaining, side

1шт.

20

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW Phillips oval head, special, No. 10 NC x 3/4", no longer used, order D148607

6шт.

20

D148607

SCREW,#10 - 16 x 5/8"

Phillips flat head, special, No. 10 NC x 5/8"

6шт.

21

E47509

SUPPORT

PLATE cover, turn signal and horn lever mounting, if used

1шт.

22

814-4012

BOLT,Hex, M4 x 0.7 x 12mm, Cl 8.8, Full Thd

hex, 4 - 7 x 12 mm, if used

2шт.

23

892-11004

LOCK WASHER,M4

WASHER, LOCK, , If used M4

2шт.

24

D138633

COVER

plastic, upper, rear, special parts used on models with tilt/telescoping steering column

1шт.

25

D138632

COVER

plastic, upper, front, special parts used on models with tilt/telescoping steering columns

1шт.

26

D139219

BOOT

tilt/telescoping steering column, special parts

1шт.

27

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, pan Phillips, slotted, No. 10 NC x 1/2", special parts used on model with tilt/telescoping steering columns

26шт.

28

D138634

COVER

plastic, lower, rear, special parts used on models with tilt/telescoping steering columns

1шт.

29

D138635

COVER

plastic, lower, front, special parts used on models with tilt/telescoping steering columns

1шт.
