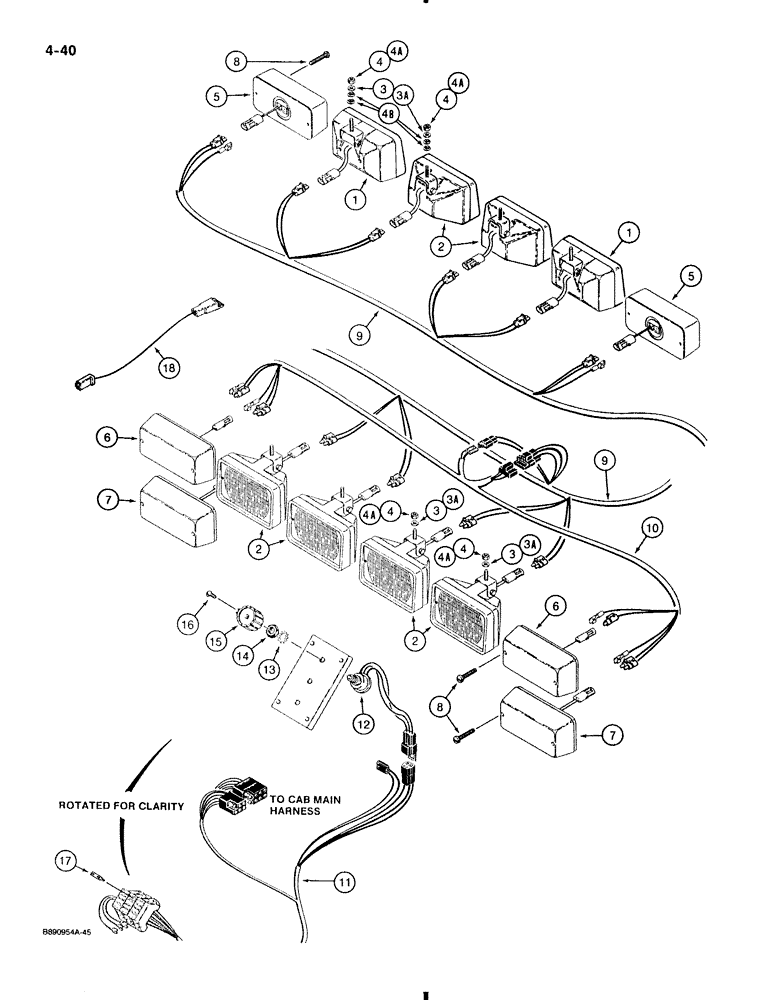

Запчасти Case 580K (4-040) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CAB (04) - ELECTRICAL SYSTEMS

1

R54411

LAMP

ASSEMBLY, front driving, see Figure 4-044

2шт.

2

R54412

LAMP, WORK

LAMP ASSEMBLY, rear flood, outer, and optional front and rear work lamps, center, see Figure 4-044

2-6шт.

3

195-525

WASHER,3/8", SAE

flat, plated, 3/8", used with Hobbs SW lamps

4-8шт.

3a

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Used with ABL lamps M10 x 20 x 2

4-8шт.

4

131-203

LOCK NUT,3/8"-16, GB, LH

NUT hex, self locking, plated, 3/8" - 16 NC, used with Hobbs SW lamps

4-8шт.

4a

831-1110

LOCK NUT

hex, self locking, 10 mm - 1.5, used with ABL lamps

4-8шт.

4b

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

Hex, Special, Used in addition to flat washer and nut on some models Push, Bolt Retainer, 3/8" x 25/32"

4-16шт.

5

92259C1

LIGHT, WARNING

LAMP ASSEMBLY, flasher and turn signal, front of cab only, see Figure 4-048

2шт.

6

92258C1

LIGHT, WARNING

LAMP ASSEMBLY, flasher and turn signal, rear of cab only, see Figure 4-048

2шт.

7

92260C1

LAMP,12V, 27W, Red

ASSEMBLY, stop and tail lamp, see Figure 4-048

2шт.

8

86982775

SCREW,Slotted Fil Hd, #10-24 x 2"

machine, fillister head, plated, No. 10 - 24 NC x 2"

12шт.

9

REF

INSTRUCTION

HARNESS cab, main, see Figure 9-154 for harness

1шт.

10

R53636

HARNESS

rear lamp, attaches to main cab harness

1шт.

11

REF

INSTRUCTION

HARNESS instrument, side console, see Figure 4-028 for harness

1шт.

D141394

SWITCH

ASSEMBLY, four position, separate switching of optional front and rear work lamps, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

SWITCH, optional front and rear work lamps

1шт.

13

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER external tooth lock, plated, 1/2"

1шт.

14

129-125

NUT,1/2"-20, G5

1шт.

15

A141735

KNOB

optional work lamp switch, see Figure 9-188 for work lamp symbol decal

1шт.

16

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

machine, pan head slotted, No. 8 NC x 1/2"

1шт.

17

A149802

FUSE

20 amperes, mounts in fuse holder in side console harness

1шт.

18

A187986

HARNESS

WIRE adapter, lead, cab lights, used with A187925 cab harness only, if used, see Figure 9-154 for cab harness identification

2шт.
