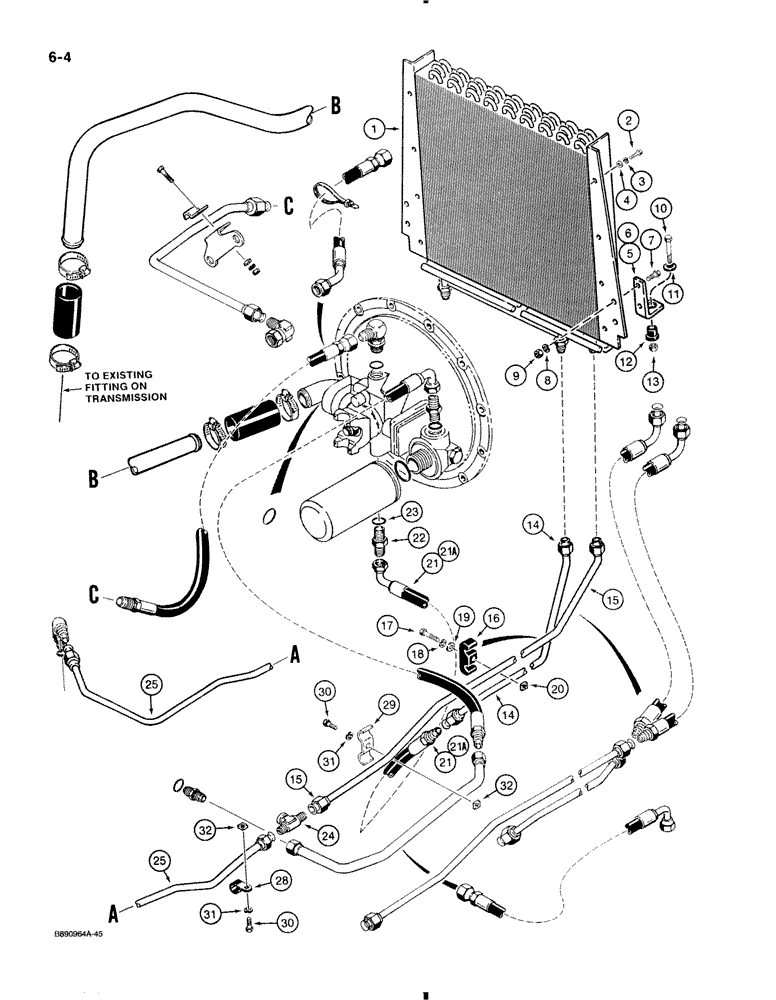

Запчасти Case 580K (6-004) - TORQUE CONVERTER AND TRANSAXLE, SHUTTLE COOLING SYSTEM (06) - POWER TRAIN

1

A184542

COOLER, OIL

COOLER oil, transaxle shuttle, torque converter and equipment hydraulic oil, for equipment hydraulic oil cooler lines, see Figure 8-014

1шт.

2

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, 8 - 1.25 x 16 mm, mounts oil cooler to radiator

8шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

4

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

8шт.

5

D131921

SUPPORT

BRACKET mounting, oil cooler to radiator shroud, left-hand

1шт.

6

D131920

SUPPORT

BRACKET mounting, oil cooler to radiator shroud, right-hand

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bracket to oil cooler Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Bracket to radiator shroud Hex, 3/8"-16 x 1 3/4", G5

2шт.

11

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, hardened, 3/8"

2шт.

12

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR vibration, rubber mount

2шт.

13

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

14

D139028

TUBE

torque converter hose to cooler inlet, used with Ref. 21 hose, models without hose at cooler, if used

1шт.

15

D139030

TUBE

transaxle tube to cooler outlet, models without hose at cooler, if used

1шт.

16

D120679

CLAMP,Tube, 1/2"

double tube

2шт.

17

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

195-525

WASHER,3/8", SAE

flat, plated, 3/8"

2шт.

20

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC

2шт.

21

D134007

HOSE

torque converter to cooler inlet, 525 mm long, not used on models with PTO

1шт.

21a

D61483

HOSE

torque converter to cooler inlet, 24" long, replaces Ref. 21 hose on models with PTO

1шт.

22

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, Incl. Ref 23

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Connector

1шт.

24

218-585

TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Fem Br

for temperature sender

1шт.

25

D141689

TUBE

cooler outlet tube to transaxle, attaches to elbow on transaxle, see page 7-3 for elbow

1шт.

28

D140709

CLAMP

P-type, tube

1шт.

29

D139956

CLAMP

double tube

1шт.

30

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8" - 16 NC

2шт.
