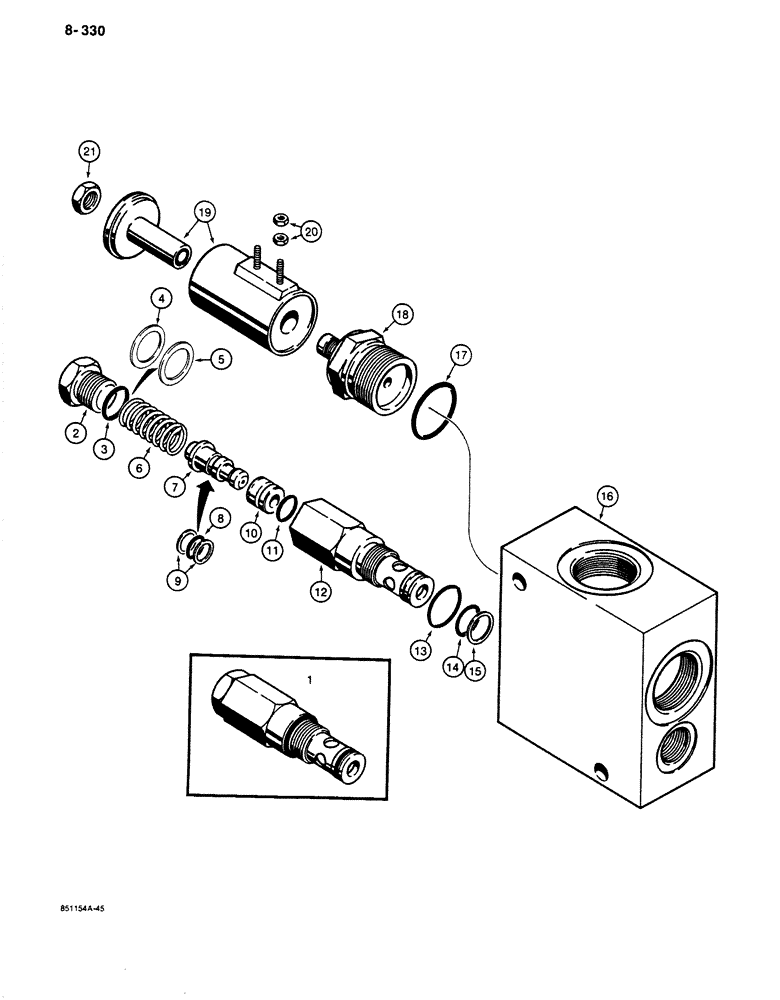

Запчасти Case 680K (8-330) - SOLENOID RELIEF VALVE, USED ON MODELS WITH 24 VOLT ELECTRICAL CIRCUIT (08) - HYDRAULICS

L104686

LOCK VALVE

VALVE ASSEMBLY - solenoid relief, backhoe boom lock, no longer available, for service order D102966 kit, see below, also see Figure 8-332 for 12 and 24 volt solenoids, Includes: Ref. 1 - 21

1шт.

1

N7468

SPOOL

RELIEF ASSEMBLY - solenoid, Includes: Ref. 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - end, relief

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

End plug -018, 90 Duro, .739" ID x .070" Thk

1шт.

4

N9955

SPACER

- flat, 23/32" OD x 13/32" ID x 3/64" thick

1шт.

5

N9954

SPACER

- flat, 11/16" OD x 15/32" ID x 1/64" thick

1шт.

6

N7470

VALVE SPRING

SPRING - relief

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - solenoid

1шт.

8

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Seal

1шт.

9

S116420

BACK-UP RING

RING - backup, spool

2шт.

10

N7471

SEAT

- spool

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Seat -012, 90 Duro, .364" ID x .070" Thk

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - solenoid

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- large

1шт.

14

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk, Small

1шт.

15

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup, small O-ring

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

17

238-6216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 6, 90 Duro

Solenoid body -216, 90 Duro, 1.109" ID x .139" Thk

1шт.

18

NSS

NOT SOLD SEPARAT

SOLENOID - relief

1шт.

19

N7469

COIL ASSY.

COIL - solenoid, component parts not serviced separately

1шт.

20

704494

HARDWARE

NUT - hex, No. 8 - 32 NC, plated

4шт.

21

131-813

NUT,3/8"-24

NUT - hex, self-locking, 3/8" - 24 NF

1шт.

D102966

VALVE

KIT - service, includes D139524 24 volt solenoid valve on Figure 8-332, mounting hardware, Ref. 14 - 16 on Figure 8-282 and Ref. 42 and 43 on Figure 8-284, plus an instruction sheet

1шт.
