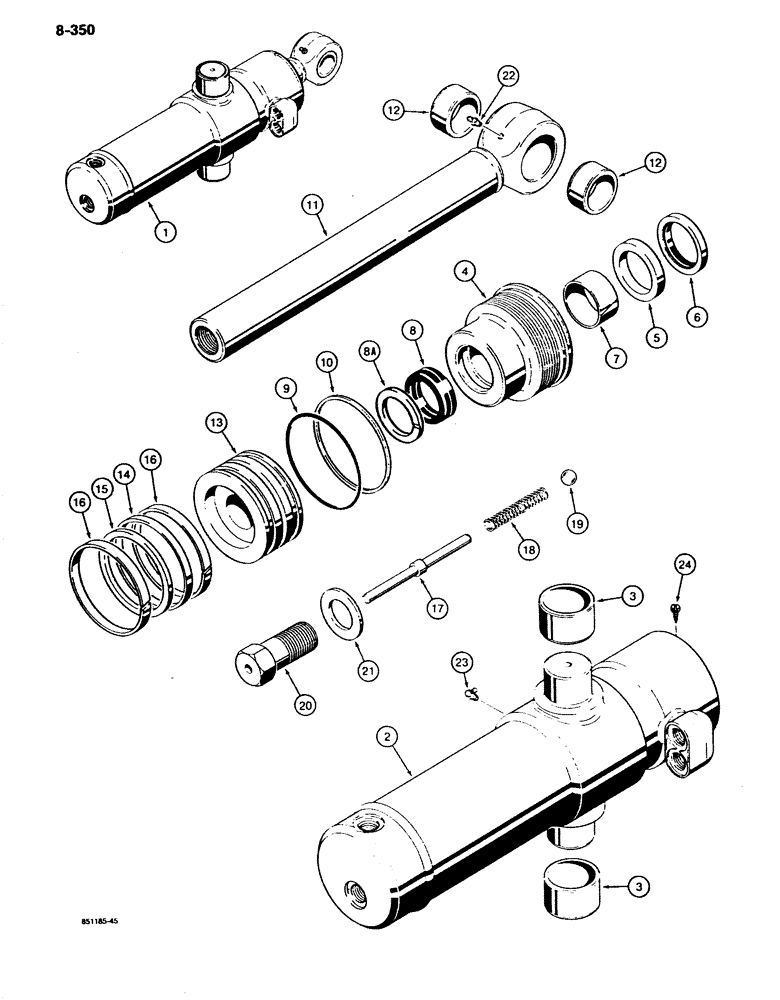

Запчасти Case 680K (8-350) - G104134 AND G110164 BACKHOE SWING CYLINDERS (08) - HYDRAULICS

1

G110164

CYLINDER

ASSEMBLY - 4" (102 mm) ID x 11-7/32" (285 mm) stroke, swing, no longer available, order G110164 cylinder assembly, Includes: Ref. 2 - 24

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

G110164

CYLINDER

ASSEMBLY - 4" (102 mm) ID x 11-7/32" (285 mm) stroke, swing, Includes: Ref. 2 - 24

2шт.

A new thicker-walled cylinder is available (P/N 1346045C1). The seal kit for this cylinder is P/N G110054 (now subs to 1543269C1). All other cylinder information is on Service Bulletin NLB SB 008 90.

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G103774

TUBE,469.89" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

G34875

BUSHING,50.67mm ID x 60.25mm OD x 33.53mm L

- tube

2шт.

1543018C1

CYLINDER END CAP

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

1543019C1

CYLINDER END CAP

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of seal kit 1543273C1

1шт.

7

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of seal kit 1543273C1

1шт.

8

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of seal kit 1543273C1

1шт.

8

G100778

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

8a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit 1543273C1

1шт.

9

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

Gland -242, 70 Duro, 3.984" ID x .139" Thk

1шт.

Part of seal kit 1543273C1

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit 1543273C1

1шт.

11

G110166

ROD

ASSEMBLY - piston, 2" (51 mm) OD, used with G104134 cylinder, Includes: Ref. 12

1шт.

11

G110166

ROD

ASSEMBLY - piston, 2" (51 mm) OD, used with G110164 cylinder, Includes: Ref. 12

1шт.

12

G34854

BUSHING,44.58mm ID x 53.98mm OD x 22.35mm L

- G34775 or G110166 piston rod

2шт.

13

G101309

PISTON

- cylinder

1шт.

14

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit 1543273C1

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup, piston seal

1шт.

Part of seal kit 1543273C1

1шт.

16

G100448

RING,101.6mm OD, Ext

- wear, piston

2шт.

Part of seal kit 1543273C1

1шт.

17

G102245

AXLE PIN

PIN - cushion relief

1шт.

18

D38683

SPRING

- cushion relief

1шт.

19

211-1024

BALL,3/4" Dia

- cushion relief spring

1шт.

20

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

- piston and cushion relief

1шт.

21

G32351

WASHER

- hardened

1шт.

22

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

23

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

24

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex hd, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated

1шт.

1543273C1

SEAL KIT

KIT - seal, Includes: Ref. 6, 7, 8 (G107923), 8A - 10 and 14 - 16

1шт.
