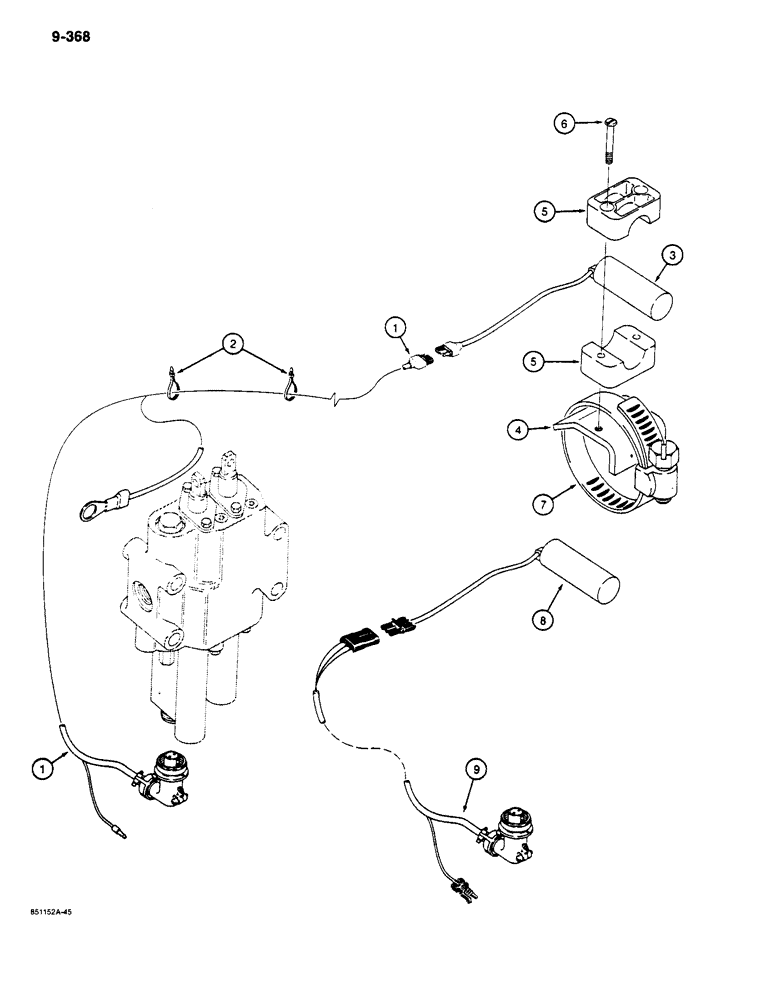

Запчасти Case 680K (9-368) - LOADER RETURN-TO-DIG CONTROL (09) - CHASSIS/ATTACHMENTS

1

D128136

HARNESS

- return-to-dig, switch to loader control valve, used on models with 24 volt electrical circuit

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

R47120

SWITCH

- return-to-dig, used on models with 24 volt electrical circuit

1шт.

4

D132339

BRACKET

- switch mounting

1шт.

5

R48091

CLAMP

- two-piece, switch, Serial Range: mounting-bracket

1шт.

6

71-424

SCREW

- Fillister head, 1/4" - 20 NC x 1-1/2"

2шт.

7

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

CLAMP - heavy duty drive type, includes hardware

1шт.

8

112431A1

SWITCH

- return-to-dig, used on models with 12 volt electrical circuit

1шт.

9

D150020

HARNESS

- return-to-dig, switch to loader control valve, used on models with 12 volt electrical circuit

1шт.
