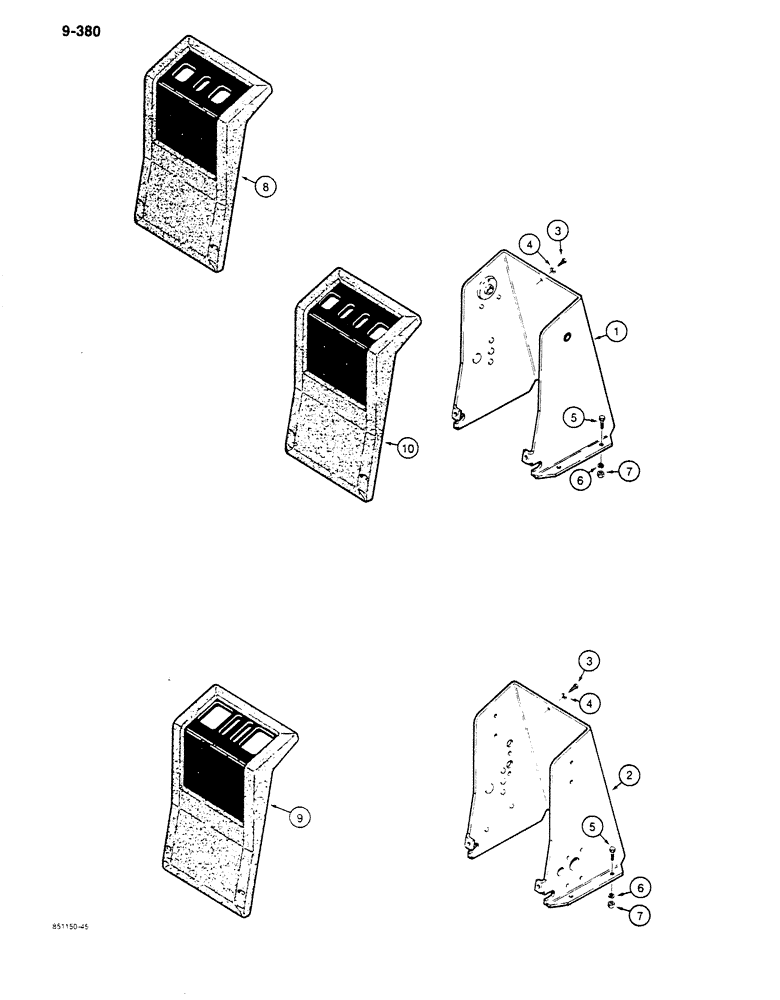

Запчасти Case 680K (9-380) - BACKHOE CONTROL TOWER (09) - CHASSIS/ATTACHMENTS

1

D123189

CONTROL BLOCK

TOWER - backhoe control, used with foot swing, if used

1шт.

2

L111602

BRACKET

TOWER - backhoe control, used with hand swing, if used

1шт.

3

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - hex washer head, self-tapping, 1/4" - 20 NC x 3/4", black

3шт.

4

95-21031

WASHER,1/4"

- flat, , plated 1/4"

3шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

D124081

COVER ASSY

COVER - control tower, used on models with foot swing, without extendable dipper, if used, includes decals, see Figure 9-518 for decals

1шт.

9

D124080

COVER ASSY

COVER - control tower, used on models with hand swing, with or without extendable dipper, if used, includes decals, see Figure 9-518 for decals

1шт.

10

D124082

COVER

- control tower, used on models with foot swing, with extendable dipper, if used, includes decals, see Figure 9-518 for decals

1шт.
