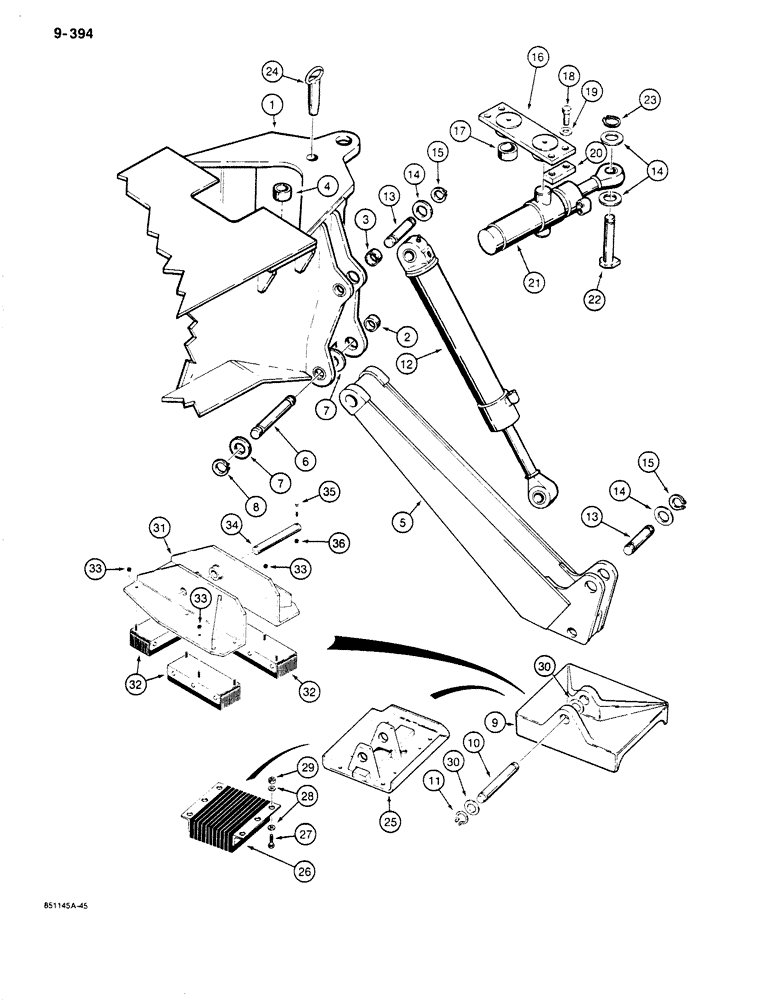

Запчасти Case 680K (9-394) - BACKHOE MOUNTING FRAME AND STABILIZERS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CHASSIS - frame assembly, parts list Figure 9-426, Includes: Ref. 2 - 4

1шт.

2

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- stabilizer, Serial Range: leg-frame

4шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- stabilizer, Serial Range: cylinder-frame

4шт.

4

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- swing cylinder pivot, lower

2шт.

5

D143775

STABILIZER

LEG - stabilizer

2шт.

6

D42911

PIN

- stabilizer to chassis frame

2шт.

7

95-81155

WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk

- flat, 2", special, used as a spacer

1шт.

8

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

4шт.

9

L73675

PAD

PLATE - stabilizer, standard

2шт.

10

L71043

AXLE PIN

PIN -, Serial Range: stabilizer-plate

2шт.

11

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

12

1986853C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - stabilizer, parts list Figure 8-348

2шт.

13

D25079

AXLE PIN,44.45mm OD x 157.2mm L

PIN - stabilizer cylinder to stabilizer leg and frame

4шт.

14

95-81150

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-3/4", special

1шт.

15

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

8шт.

16

D143397

PLATE

- swing cylinder mounting, Includes: Ref. 17

1шт.

17

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- plate

2шт.

18

413-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 5

- hex head, 1" - 8 NC x 2-3/4", plated, swing plate to chassis

4шт.

19

D30196

WASHER

- hardened

4шт.

20

L106669

RETAINER

- bolt retaining

2шт.

21

REF

INSTRUCTION

CYLINDER ASSEMBLY - swing, parts list Figure 8-350

2шт.

22

L108156

PIN

- swing, Serial Range: cylinder-tower

2шт.

23

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

2шт.

24

L70598

AXLE PIN

PIN - swing lock

1шт.

25

L78070

PLATE ASSY.

FOOT - cemetery and street, if used

2шт.

26

D61368

PAD

Rubber, bolt on, street and cemetery plate, if used

2шт.

27

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex head, 5/8" - 11 NC x 1-3/4", plated, if used

8шт.

28

495-21069

WASHER,5/8"

- flat, , if used 5/8"

16шт.

29

425-1010

NUT,5/8"-11, G5

If used 5/8"-11, G5

8шт.

30

95-81147

WASHER,1.53" ID x 2.06" OD x 0.11" Thk

- flat, 1-1/2", special, used as a spacer

1шт.

31

D150440

PAD

PLATE - stabilizer, flip over, Category III

2шт.

32

D142314

SKID/SHOE

PAD - rubber, used with D143477 plate

6шт.

33

230-4217

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16" - 14 NC, plated

18шт.

34

D143478

PIN

- D143477 plate to stabilizer leg

2шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2", plated

4шт.

36

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.
