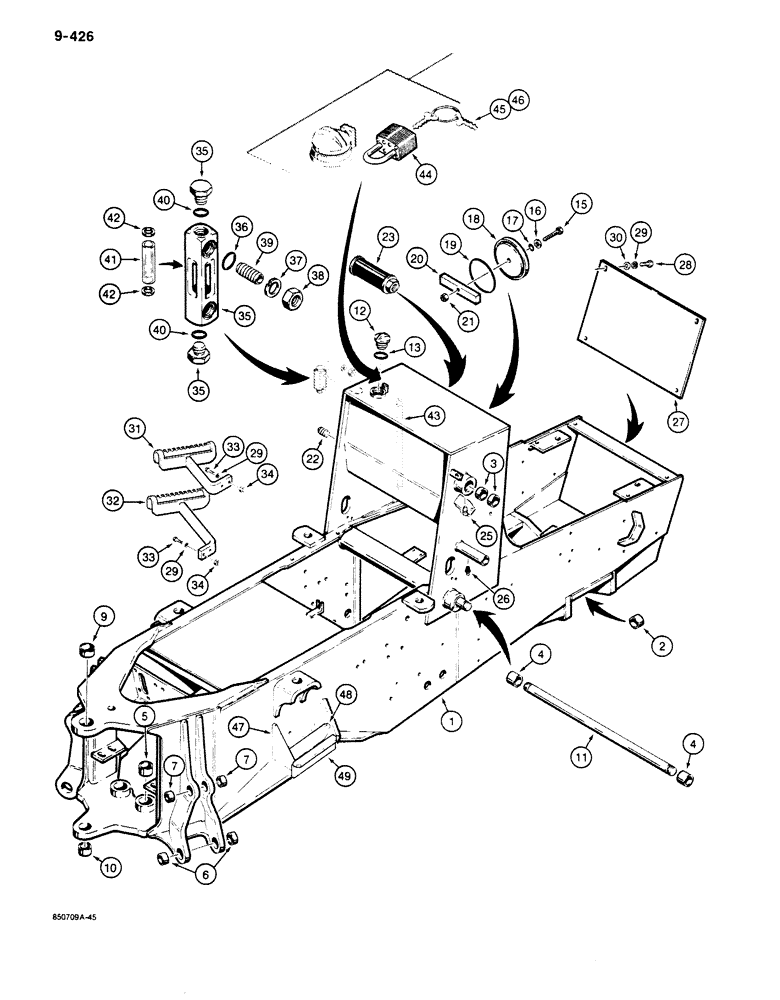

Запчасти Case 680K (9-426) - CHASSIS, STEPS AND HYDRAULIC OIL LEVEL GAUGE (09) - CHASSIS/ATTACHMENTS

1

D136587

CHASSIS

ASSEMBLY - includes upper frame, use on models with 24 volt electrical circuit, also includes Ref. 16 - 29 on page 3-57, Includes: Ref. 2 - 22

1шт.

1

D138637

CHASSIS

ASSEMBLY - includes upper frame, use on models with 12 volt electrical circuit, also includes Ref. 16 - 29 on page 3-57, Includes: Ref. 2 - 22

1шт.

2

L11494

BUSHING

- front axle pivot

2шт.

3

D33659

BUSHING,51.02mm ID x 63.5mm OD x 19.1mm L

BUSIHNG - loader lift frame pivot

4шт.

4

D43508

BUSHING

- lift cylinder pivot

2шт.

5

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- swing cylinder pivot, lower

2шт.

6

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- stabilizer, Serial Range: leg-frame

4шт.

7

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- stabilizer, Serial Range: cylinder-frame

4шт.

9

L70379

BUSHING,63.75mm ID x 76.2mm OD x 31.75mm L

- upper, swing tower mounting

1шт.

10

L58870

BUSHING,54.2mm ID x 57.15mm OD x 31.75mm L

- lower, swing tower mounting

1шт.

11

L57362

SHAFT

- lift cylinder mounting

1шт.

12

L100349

PLUG

CAP - filler, hydraulic reservoir

1шт.

13

238-5329

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- filler cap

1шт.

15

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex head, 1/2" - 13 NC x 4", special thread length

1шт.

16

L78045

WASHER

- special

1шт.

17

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

Cover -112, 70 Duro, .487" ID x .103" Thk

1шт.

18

L77124

COVER ASSY

COVER - access, hydraulic filter

1шт.

19

238-5442

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

SEAL - cover, hydraulic reservoir

1шт.

20

L50741

BAR

- cover retainer

1шт.

21

131-510

LOCK NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

22

221-677

DRAIN PLUG,Sq Hd, 3/4" NPT

PLUG - square head, 3/4" NPT, magnetic, reservoir drain

1шт.

23

D128526

FILTER CARTRIDGE

SCREEN - suction, filter

2шт.

23a

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated, Not shown, located on RH frame to mount ground wires, use on models with D138637 chassis only

2шт.

24

495-21044

WASHER,3/8"

Not shown, located on right-hand frame to mount ground wires, use on models with D138637 chassis only 3/8"

2шт.

24a

492-11038

LOCK WASHER,3/8"

not shown, located on right-hand frame to mount ground wires, use on models with D138637 chassis only 3/8"

2шт.

25

77081

FITTING

- grease, 45 degree, 1/8" NPT, special short, replaces straight fitting on some models

2шт.

26

77818

FITTING

FITITNG - grease, straight, 1/4" - 28 NF, self-tapping

1шт.

27

D133561

COVER ASSY

COVER - front

1шт.

28

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

29

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

30

95-21056

WASHER,1/2"

- flat, , plated 1/2"

4шт.

31

L102993

STEP

- upper

1шт.

32

L102994

STEP

- lower

1шт.

33

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

34

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

L79110

GAUGE

ASSEMBLY - hydraulic oil level, Includes: Ref. 35 - 42

1шт.

35

NSS

NOT SOLD SEPARAT

BODY - gauge, includes end plugs

1шт.

36

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

Gauge -112, Cl 7, .487" ID x .103" Thk

2шт.

37

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

38

131-402

NUT,PAL, 1/2"-20

NUT - hex, special locking, 1/2" - 20 NF

2шт.

39

D75821

STUD

- mounting

2шт.

40

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, End plugs to body

2шт.

41

D75820

TUBE

- sight, internal

1шт.

42

D75819

GASKET

- internal, sight tube

2шт.

43

221-727

PIPE,Nipple, 1/4" NPT x 18"

NIPPLE - 1/4" NPT x 18"

1шт.

44

R29556

LOCK

PADLOCK - includes keys, Includes: Ref. 45, 46

1шт.

45

D93753

PADLOCK

KEY - for Master padlock only

2шт.

46

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

D102829

AXLE

KIT - rear axle reinforcement, includes instruction sheet, Includes: Ref. 47 - 50

1шт.

47

NSS

NOT SOLD SEPARAT

GUSSET - rear

2шт.

48

NSS

NOT SOLD SEPARAT

PLATE - reinforcement

2шт.

49

NSS

NOT SOLD SEPARAT

PLATE - axle, right-hand

1шт.

50

NSS

NOT SOLD SEPARAT

PLATE - axle, left-hand, not shown

1шт.
