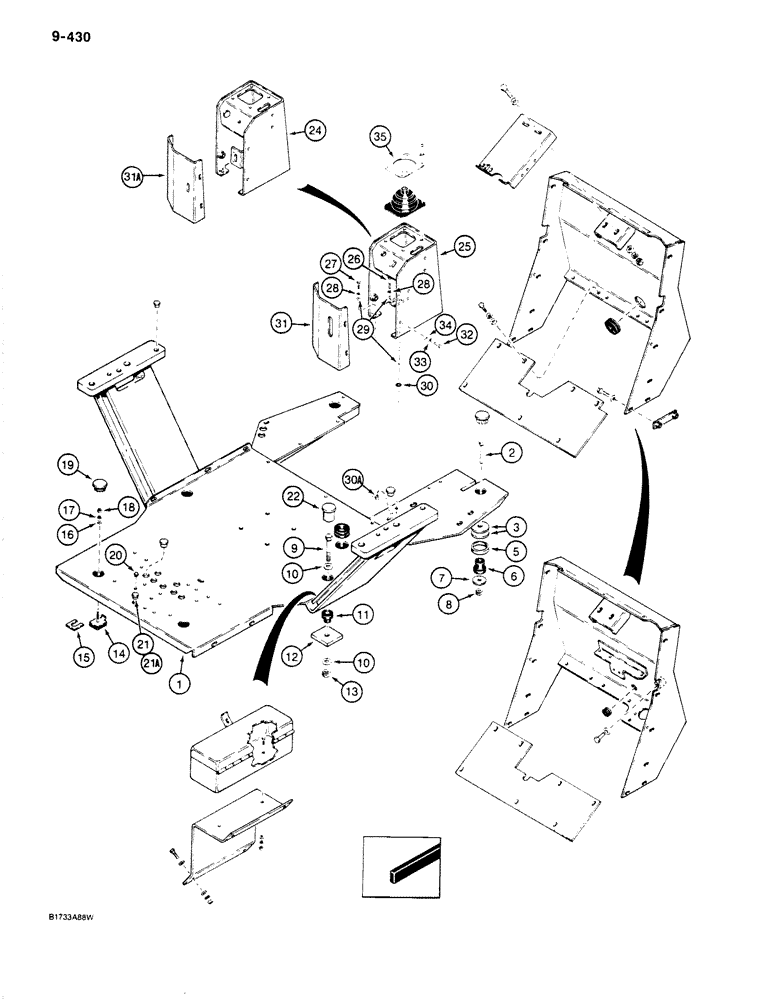

Запчасти Case 680K (9-430) - OPERATORS COMPARTMENT FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

L108867

FUNNEL

FRAME - operators compartment, use on models that have hand throttle with level release, see Figure 3-60

1шт.

1a

D136589

FRAME ASSY

FRAME - operators compartment, not shown, use on models that have hand throttle with button release, see Figure 3-62

1шт.

2

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

3

496-81011

WASHER,21/32" x 3" x .179", HDN

- 5/8", hardened, plated

4шт.

5

L105792

SPACER

- insulator

2шт.

6

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR - frame mounting, rubber, front

2шт.

7

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- hardened

2шт.

8

231-41110

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

9

28-1276

BOLT,Hex, 3/4" - 16 x 4-3/4", Gr 8

- hex head, 3/4" - 16 NC x 4-3/4", grade 8

2шт.

10

496-11078

WASHER

- 3/4", hardened, plated

4шт.

11

A19066

MOUNTING PARTS

INSULATOR - frame mounting, rubber, rear

2шт.

12

L107405

SPACER

- insulator

2шт.

13

232-46112

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

2шт.

14

L103861

PAD

- rear insulator

2шт.

15

L103868

SHIM,.050" Thk

Rear insulator pad .050" Thk

1шт.

16

495-21044

WASHER,3/8"

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

205-67

HOLE PLUG BUTTON,2"

PLUG - button, , floor 2"

4шт.

20

60-4258T1

PLUG

- nylon, 3/8"

4шт.

21

353-404

PLUG,Dome, .500" hole, Nylon

If used Dome, .500" hole, Nylon

1шт.

21a

353-412

PLUG,Dome, 1.093" hole, Nylon

- nylon, 1-3/32", if used

1шт.

22

L103917

PLUG

- floor, rear

2шт.

23

L107028

GROMMET

- flour

1шт.

24

D136585

CONSOLE

- loader control lever, use on models that have hand throttle with button release

1шт.

25

L105116

BRACKET

CONSOLE - loader control lever, use on models that have hand throttle with lever release

1шт.

26

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8"-16 NC x 2-3/4", plated

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

3шт.

28

492-11038

LOCK WASHER,3/8"

4шт.

29

495-21044

WASHER,3/8"

5шт.

30

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8", plated, if used

1шт.

30a

425-106

NUT,3/8"-16, Cl 5

1шт.

31

L111758

COVER ASSY

COVER - loader console, use on models that have hand throttle with lever release

1шт.

31a

D136591

COVER

- loader console, use on models that have throttle with button release

1шт.

32

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", plated

4шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

34

95-21031

WASHER,1/4"

- flat, , plated 1/4"

4шт.

35

L105377

PLATE ASSY.

PLATE - boot mounting

1шт.
