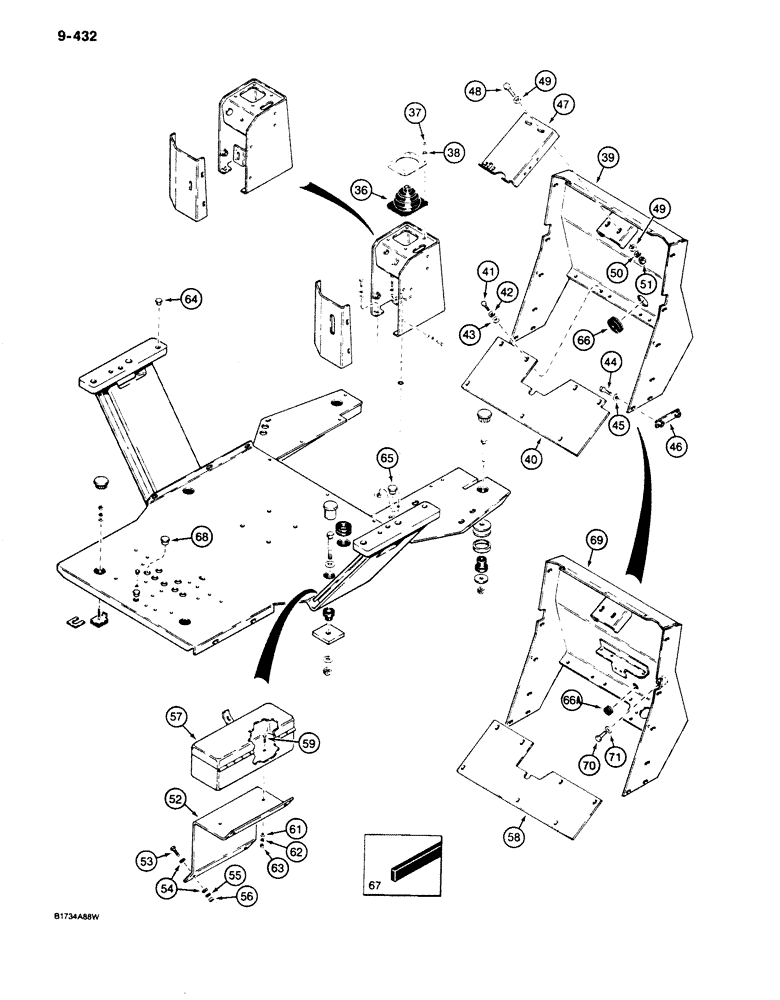

Запчасти Case 680K (9-432) - OPERATORS COMPARTMENT FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

36

L105188

INSULATOR BLOCK

BOOT - loader console

1шт.

37

187-1421

SELF-TAP SCREW,Slotted Oval Hd, #10 x 3/4"

SCREW - oval Phillips head, self-tapping, No. 10 - 24 NC x 3/4"

4шт.

38

F43576

WASHER

- special

4шт.

39

L102583

PANEL ASSY.

PANEL - firewall, use on models with 24 volt electrical circuit

1шт.

40

L102568

PLATE ASSY.

PLATE - front, removable, use on models with 24 volt electrical circuit

1шт.

41

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

7шт.

42

492-11038

LOCK WASHER,3/8"

7шт.

43

495-21044

WASHER,3/8"

7шт.

44

354276X1

SCREW

BOLT - hex head, 1/2" - 13 NC x 1-1/4", plated

4шт.

45

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened 17/32" x 1 1/16" x .134"

4шт.

46

L108558

BLOCK

- tapped

2шт.

47

L101724

BRACKET

- steering column, mounting

1шт.

48

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

49

95-21056

WASHER,1/2"

- flat, , plated 1/2"

4шт.

50

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

51

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

52

L107762

PLATE ASSY.

PLATE - tool box mounting, used on models without cab

1шт.

For tool box mounting plate used on models with cab, see Figure 9-470.

1шт.

53

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

2шт.

54

495-21044

WASHER,3/8"

4шт.

55

492-11038

LOCK WASHER,3/8"

2шт.

56

425-106

NUT,3/8"-16, Cl 5

2шт.

57

D124090

BOX, TOOL

TOOL BOX - operators

1шт.

58

D137547

PLATE

- front, removable, use on models with 12 volt electrical circuit

1шт.

59

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", plated

2шт.

60

RESERVED

1шт.

61

95-21031

WASHER,1/4"

- flat, , plated 1/4"

2шт.

62

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

63

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

2шт.

64

353-412

PLUG,Dome, 1.093" hole, Nylon

- nylon, 1-3/32", canopy models only

2шт.

65

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, 1-3/16", if used

1шт.

66

248-23112

GROMMET,1 1/4" ID x 2 3/8" Groove Dia, Str Cut

- firewall, front and rear harness, used on models with 24 volt electrical circuit

1шт.

66a

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

Firewall, used on models with 12 volt electrical circuit 5/8" ID x 1 1/4" Groove Dia, Str Cut

1шт.

67

REF

INSTRUCTION

SEAL - plate, 10" (254 mm) long, cab models, for service order L35756 seal and cut to required length, see below, no longer used, not required

4шт.

68

353-413

PLUG,Dome, 1.187" hole, Nylon

- 1-3/16", models without extendable dipper

1шт.

D138167

ASSEMBLY

PANEL ASSEMBLY - firewall, use on models with 12 volt electrical circuit, Includes: Ref. 69 - 71

1шт.

69

NSS

NOT SOLD SEPARAT

PANEL - firewall

1шт.

70

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

1шт.

71

495-21044

WASHER,3/8"

1шт.

L35756X

FOAM

SEAL - 50 ft (15.24 cm) long, bulk

1шт.
