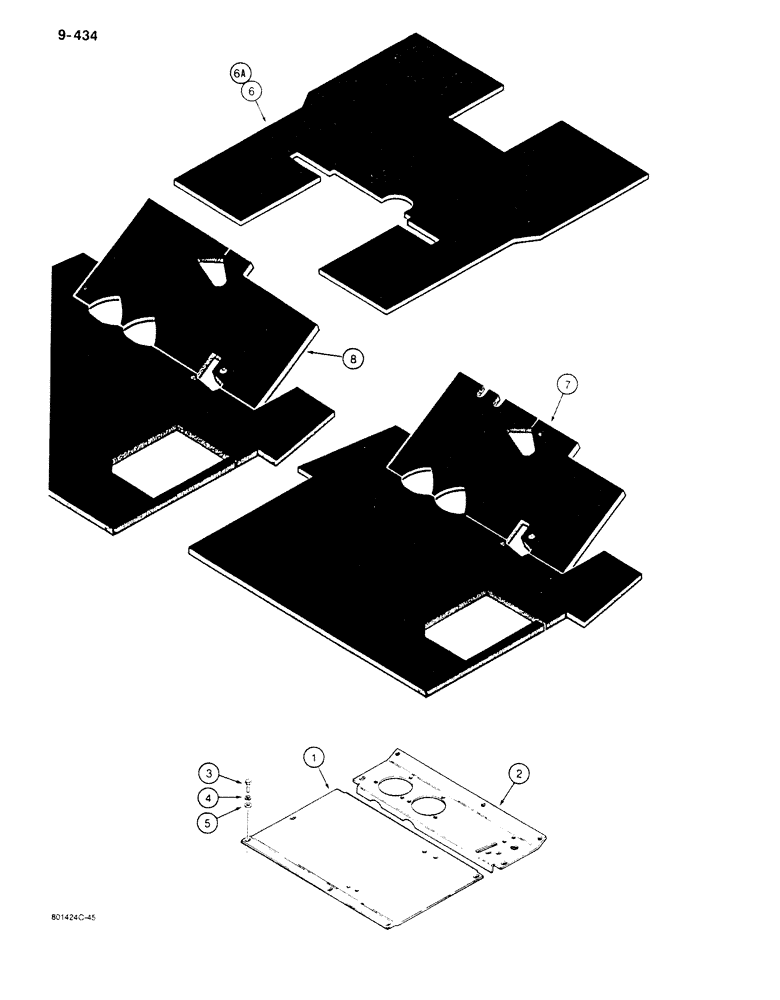

Запчасти Case 680K (9-434) - FLOOR PLATES AND MATS (09) - CHASSIS/ATTACHMENTS

1

L102587

PLATE ASSY.

PLATE - floor, main, removable

1шт.

2

L102588

PLATE ASSY.

PLATE - floor, small

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

7шт.

4

492-11038

LOCK WASHER,3/8"

7шт.

5

495-21044

WASHER,3/8"

7шт.

6

L108259

MAT

FLOORMAT - rear, black, if used

1шт.

6a

D140604

FLOOR MAT

FLOORMAT - rear, brown, if used

1шт.

7

L108258

MAT

FLOORMAT - front, used on models with 24 volt electrical circuit

1шт.

8

D139218

FLOOR MAT

FLOORMAT - front, used on models with 12 volt electrical circuit

1шт.
